3DR0654

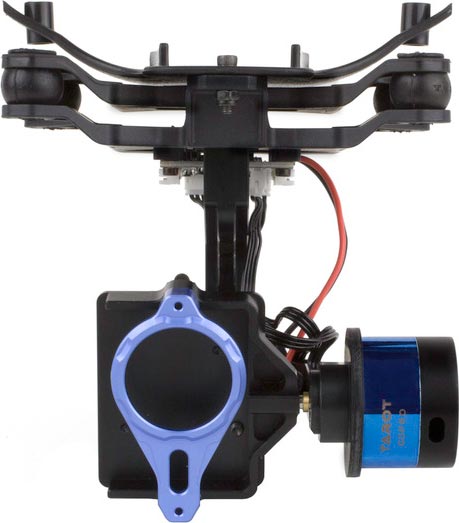

Tarot 2-Axis GoPro Hero 3 Gimbal

Product Info | Fits What?
3D ROBOTICS

3DR0654
Tarot 2-Axis GoPro Hero 3 Gimbal
By 3D ROBOTICS
Discontinued
Click to Enlarge
click to enlarge

More like this... Helicopter Accessories, Camera Gimbal
But only from... 3D ROBOTICS


 Inventory Status Legend
StockStock availability for on-line ordering
0
$232.89
Warehouse ?
StockStock availability for pick up
0
$232.89
Warehouse ?
0
$232.89
Store - Charlottetown ?
0
$232.89
Store - Edmonton ?
0
$232.89
Store - Mississauga ?
0
$232.89
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES

The two-axis Tarot Brushless Gimbal uses cutting-edge gyroscope technology to ensure you get crisp, stable images from your 3DR drone. The T-2D automatically compensates for the slightest movement, enabling you to capture rock steady video even in windy weather. Designed to accommodate the GoPro HERO 3, the T-2D Brushless Gimbal you get from 3DR is customized: pre-wired, pre-calibrated and configured to work with your 3DR copter. The T-2D offers manual camera control from your controller's Tilt knob, but the model you get from 3DR is also specially configured to allow the autopilot to control the camera automatically, which is critical to using applications like 3PV Follow Me mode on IRIS+. This T-2D ships pre-assembled by 3DR, and includes the mounting plate and hardware for our 2014 Quad, Y6, and X8.

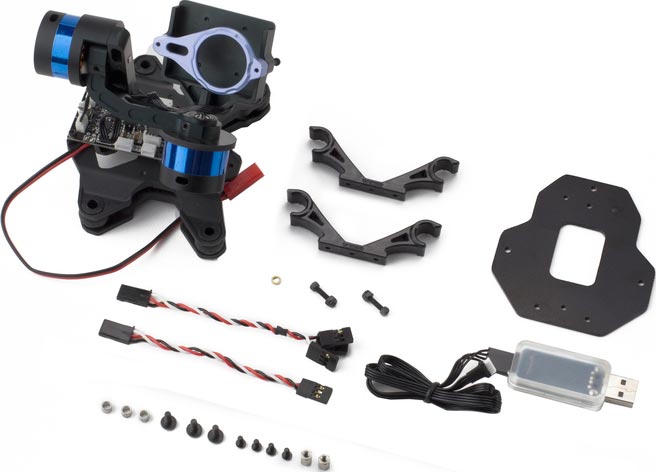

Tarot Brushless Gimbal Kit includes

Mounting plate to mount the gimbal to 2014 Quad, Y6, and X8
Tarot brushless gimbal with IRIS and IRIS+ mounting plate– comes pre-assembled and pre-configured to work with your copter's RC for in-flight camera control
IRIS and IRIS+ mounting hardware

Specifications

Support GoPro HERO3 video auxiliary output (cable sold separately)
Supply voltage polarity protection and voltage compensation
Motor drive end short-circuit protection
Sensitivity parameter adjustment and software 3D pose show through PC connection
Adjustable rocker rate mode and position mode
Supported receiver type : conventional receiver, S-BUS receiver, DSM2/DSMJ/DSMX receiver
Support for remote devices : PPM/PCM/2.4G
Working voltage: DC 7.4V ~ 14.8V (Recommended 12V, three lithium battery)
Working current: 200 mA-500 mA (power supply voltage and the motor related)
Working environment temperature: -15 ℃ ~ 65 ℃
Processor: Dual 32-bit high-speed ARM core processor
Sensor: Three axis MEMS gyroscope and MEMS accelerometers
Maximum angular rate : 2000 ° / sec
Control frequency: 2000 Hz
Motor drive frequency: 20 kHz (no noise smoothing driven)
Control accuracy : 0.1 ° (Pixel Grade)
Control angle range : -45 ° ~ 45 ° (roll), -135 ° ~ 90 ° (tilt)
Pose solver algorithms : PTZ dedicated brushless motor decoupled EKF algorithm
Shooting equipment : GoPro HERO3
Weight without camera : 200 g

attery usage: The Tarot gimbal should be powered by a 2S or 3S LiPo battery only. If you plan to use 4S, please use a voltage regulator to ensure the voltage stays within safe operating limits. 3DR RTF Quad, Y6, and X8 include a voltage regular to allow use of 4S batteries with the Tarot gimbal.
Note: Tarot gimbal does not include the GoPro camera. The mounting plate is compatible with 2014 Quad, Y6, and X8 only and does not attach to 2013 copter models. Assembly required to connect to Quad, Y6, and X8: assembly requires 1.5 mm and 2 mm hex keys (not included). IRIS+ includes a set of tall legs to use with the Tarot Gimbal. Users with an original-edition IRIS will need to purchase a set of tall legs to use the gimbal
