3DR0252

X8+ RTF Octocopter w/915mHz Datalink

Product Info
3D ROBOTICS

3DR0252
X8+ RTF Octocopter w/915mHz Datalink
By 3D ROBOTICS
Discontinued
Click to Enlarge
click to enlarge

More like this... Multirotor Drone, ARF Octocopters
But only from... 3D ROBOTICS
All items from... 3D ROBOTICS


 Inventory Status Legend
StockStock availability for on-line ordering
0
$1,495.99
Warehouse ?
StockStock availability for pick up
0
$1,495.99
Warehouse ?
0
$1,495.99
Store - Stratford ?
0
$1,495.99
Store - Edmonton ?
0
$1,495.99
Store - Mississauga ?
0
$1,495.99
Store - Ottawa ?
0
$1,495.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES

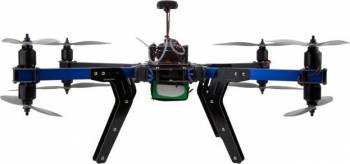

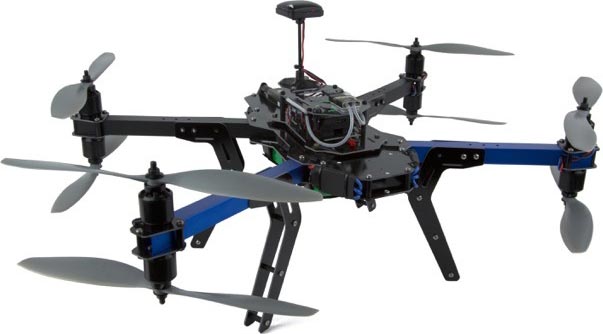

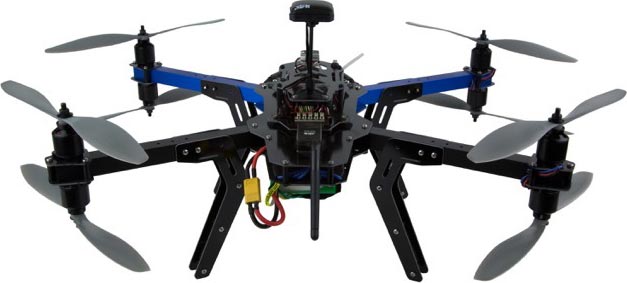

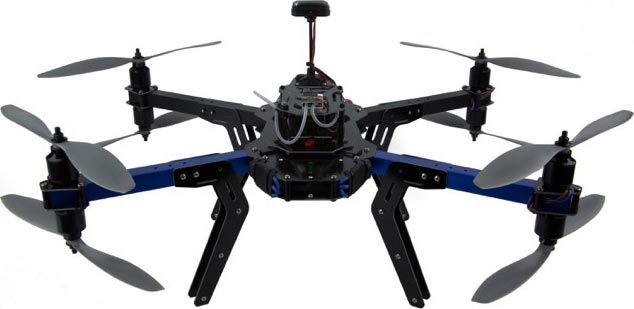

The 3DR workhorse octocopter is equal to any task. With a flight time of 15 minutes and a payload capacity of over 800 grams, the X8+ is the perfect platform for aerial video.

The X8+ includes

  • Controller with live on-screen flight data
  • Flight battery and charger
  • Operation Manual and Flight Checklist
  • Ground station radio with USB and Android adapters

Specs:

Battery: 4S 14.8V 10,000 mAh 10C
Battery Dimensions: 6.6 in x 2.6 in x 1.4 in (16.7 cm x 6.5 cm x 3.5 cm)
Battery Weight: 803 g
Autopilot hardware: Pixhawk v2.4.5
Autopilot firmware: ArduCopter 3.2
GPS: 3DR u-blox GPS with Compass (LEA-6H module, 5 Hz update)
Ground Station Radio: 3DR Radio v2 (915 MHz or 433 MHz)
Motors: SunnySky V2216-12 KV800 II
Controller: FlySky FS-TH9X with FrSky telemetry module
Frame Type: X
Propellers: APC Propeller 11x4.7 SF (4), APC Propeller 11x4.7 SFP (4)
Vehicle Dimensions: 13.7 in x 20.1 in x 11.8 in (35 cm x 51 cm x 20 cm)
Payload Capacity: 800 g (1.7 lbs). Additional payload possible up to over 1kg with reduced flight time.
Vehicle Weight with Battery: 2.56 kg (5.6 lbs)
Maximum Estimated Flight Time: 15 min
