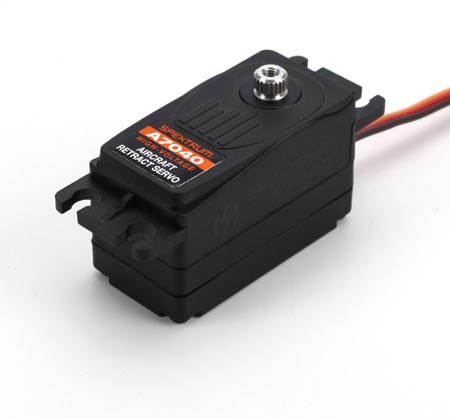

*REORDER* SPMSA7090 (Retract Servo A7040 HV)
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Analog
Type:
Airplane Mechanical Retracts
Application:
Z Type
Connector Type:
Dual Bearing
Bearing/Bushing:
44 mm
Length:
22.2 mm
Width:
27.3 mm
Height:
42 g
Weight:
Metal
Geartrain:
6.0 - 8.4 v
Voltage Range:
195 oz-in
Torque @ 6.0V:
1.92 sec/160 °
Speed @ 6.0V:
1.39 sec/160 °
Speed @ 8.4V:
266 oz-in
Torque @ 8.4V:
FEATURES
- Retract servo with adjustable endpoints
- High-voltage compatible
- Slow transit speed of 1.39 sec/160° at 7.4V for realistic landing gear operation
The A7040’s wide stance and low profile design along with its heavy duty metal gears, cored motor and class leading, 266 oz.-in. of torque, is ideal for mechanical retract systems. Its ability to accept a higher voltage from a 2S Li-Po battery makes setup simpler and operation more efficient. Fully proportional with endpoint adjustable, when paired with a servo speed function, the landing gear movement can be adjusted to simulate scale applications.
