SPECIFICATIONS
6 Channels
Channels:
DSMX, DSM2
Modulation:
2.4 GHz
Band:
3.2 to 4.2 V
Voltage Range:
2 A
Continuous Motor Current:
79.4 g
Linear Servo (force):
9.1 mm
Servo Stroke:
0.14 seconds
Servo Speed:
FEATURES
Two integrated linear servos (elevator and rudder) plus two additional servo ports
Long 0.36 in (9.1mm) servo throw for 3D aerobatics
Integrated brushed speed control
Compatible with optional Spektrumâ„¢ linear ultra micro servos (SPMAS2000 and SPMAS2000L)
Compatible with external brushless speed controls (optional)
JST-SHR (1mm) connector
Weighs just 3.9 grams
Small, compact footprint
Single LiPo operation
Smart Bindâ„¢ technology
X-Portâ„¢ accessory system allows for future expansion
Overview

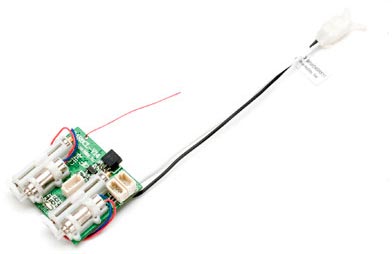

The Spektrum™ AR6410L receiver is a 6-channel ultra micro receiver with integrated servos, speed control and ParkZone® X-Port™ technology. The AR6410L receiver is designed for ultra micro and ultra light foamy aircraft. Featuring DSMX™ technology, the AR6410L receiver is compatible with all Spektrum, JR DSM®, E-flite® and ParkZone 2.4GHz DSM2® transmitters.
Applications
The AR6410/AR6410L receiver is designed for ultra micro aircraft and is ideal for scratch-built ultra micro projects. The AR6410/AR6410L receiver is designed to use a single cell LiPo battery. The integrated brushed speed controller can be used to power a brushed motor drawing up to 2 amps of continuous current or an optional brushless speed controller can be added. An integrated X-Port feature allows for future expansion. When X-Port technology is active, CH5 and CH6 are not available; however, reversed aileron (CH2) is still available.
NOTICE: The AR6410/AR6410L receiver is not compatible with the DX6 park flyer radio system.
