SPECIFICATIONS
1.2 in
Length:
.6 in
Width:
.2 in
Height:
3 g
Weight:
Vbatt Port 6V-25.2V Receiver 4V-7.5V
Voltage Range:
Yes
Telemetry:
FEATURES
Small size and lightweight design
Works with most popular flight controllers
Single line connection provides output to FC while receiving telemetry input from FC or battery
Dual antennas for optimal range and RF performance
Telemetry options include:
Provided directly from receiver
Flight log data
Battery voltage
RPM
Lap Timer
Provided by external device e.g.: Flight Controller
Flight log if using more than 1 receiver
Battery voltage
RPM
Lap Timer
Current draw and total mAh consumption
Temperature
All other data the FC can send that we support such as GPS, accelerometer date, ESC data, etc...

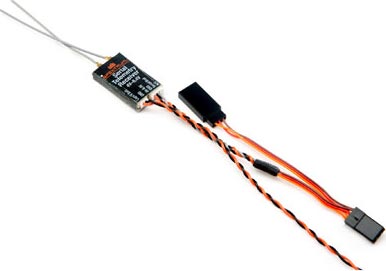

The SPM4649T quad racing serial receiver offers full-range performance with integrated telemetry providing FPV racing enthusiasts with a serial receiver that can transmit vital telemetry data. Like SPM4648, the 4649T offers a 1-wire serial connection that is compatible with most flight controllers and an input for telemetry data such RPM, battery voltage and a whole lot more. Spektrum enthusiasts with telemetry capable transmitters such as the DX6, DX8, DX9 or DX18 can now receive on-demand telemetry data, and by using the voice functionality of compatible G2 transmitters, can have specific telemetry data outputted via the on-board audio system.
