PTK100T

100T Standard Digital "High Torque" Metal Gear Servo

Product Info | Replacement Parts
PROTEK R/C

PTK100T
100T Standard Digital "High Torque" Metal Gear Servo
By PROTEK R/C
$79.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Servos Digital
But only from... PROTEK R/C
All items from... PROTEK R/C


 Inventory Status Legend
StockStock availability for on-line ordering
0
$79.99
Warehouse ?
StockStock availability for pick up
0
$79.99
Warehouse ?
0
$79.99
Store - Stratford ?
0
$79.99
Store - Edmonton ?
0
$79.99
Store - Mississauga ?
0
$79.99
Store - Ottawa ?
0
$79.99
Store - Oshawa ?
0
$79.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.

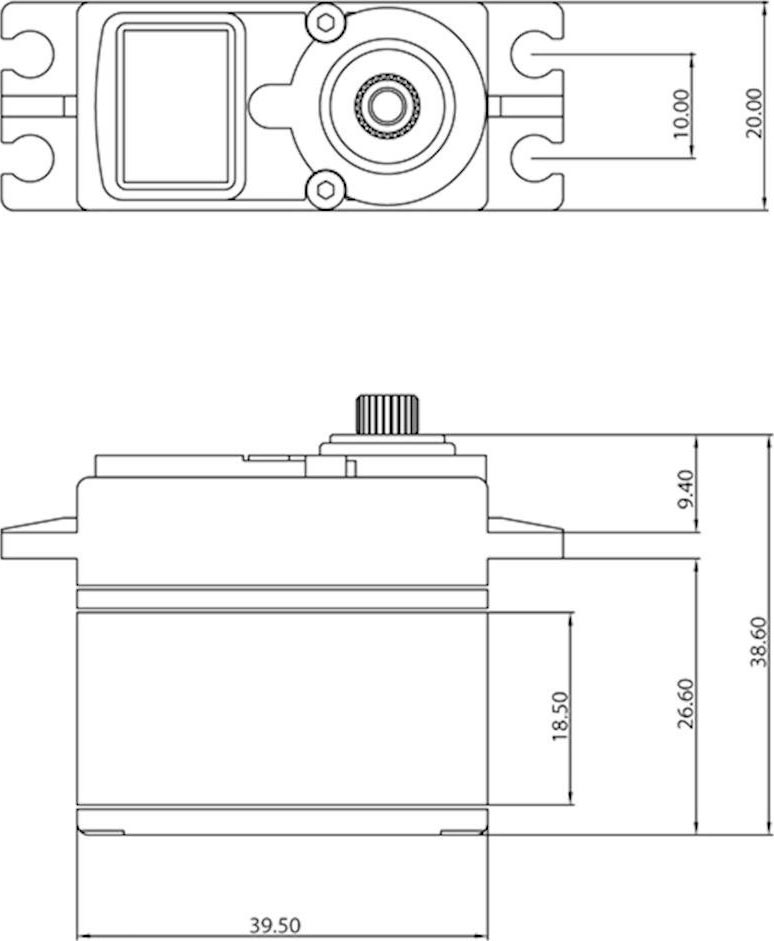

SPECIFICATIONS
1/10
Size Class:
25 Tooth
Output Spline:
39.50 mm
Length:
20.00 mm
Width:
38.60 mm
Height:
54.9 g
Weight:
Metal
Geartrain:
Cored DC Motor
Motor Type:
4.8-6.0 v
Voltage Range:
173 oz-in
Torque @ 4.8V:
0.17 sec/60°
Speed @ 4.8V:
217 oz-in
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:

FEATURES

Features:

  • Ideal for any 1/10 scale vehicle application
  • Aluminum middle case
  • 0.14 transit speed, and 216 oz-in of torque @ 6.0V

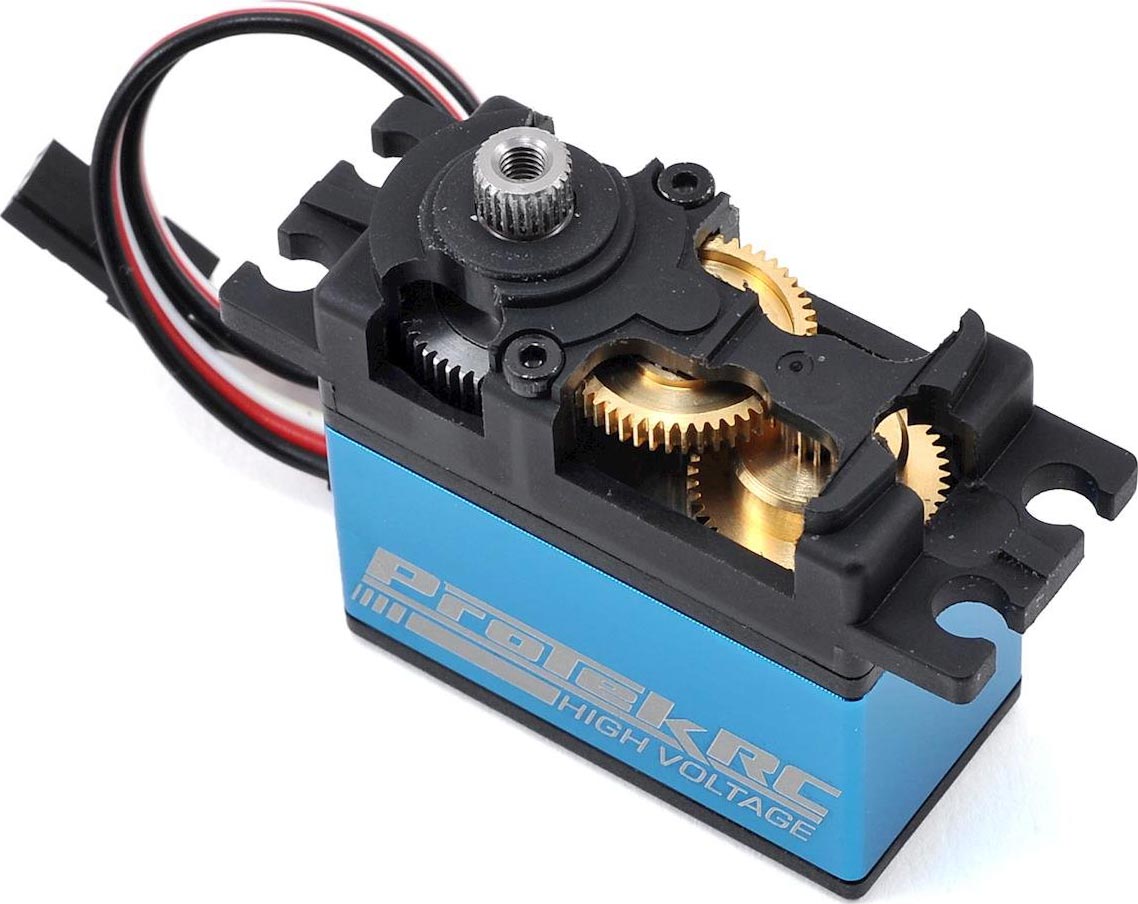

  • Full metal gears and dual ball bearings
  • 200mm long 22awg connector wire w/gold plated connectors
  • Cored Motor

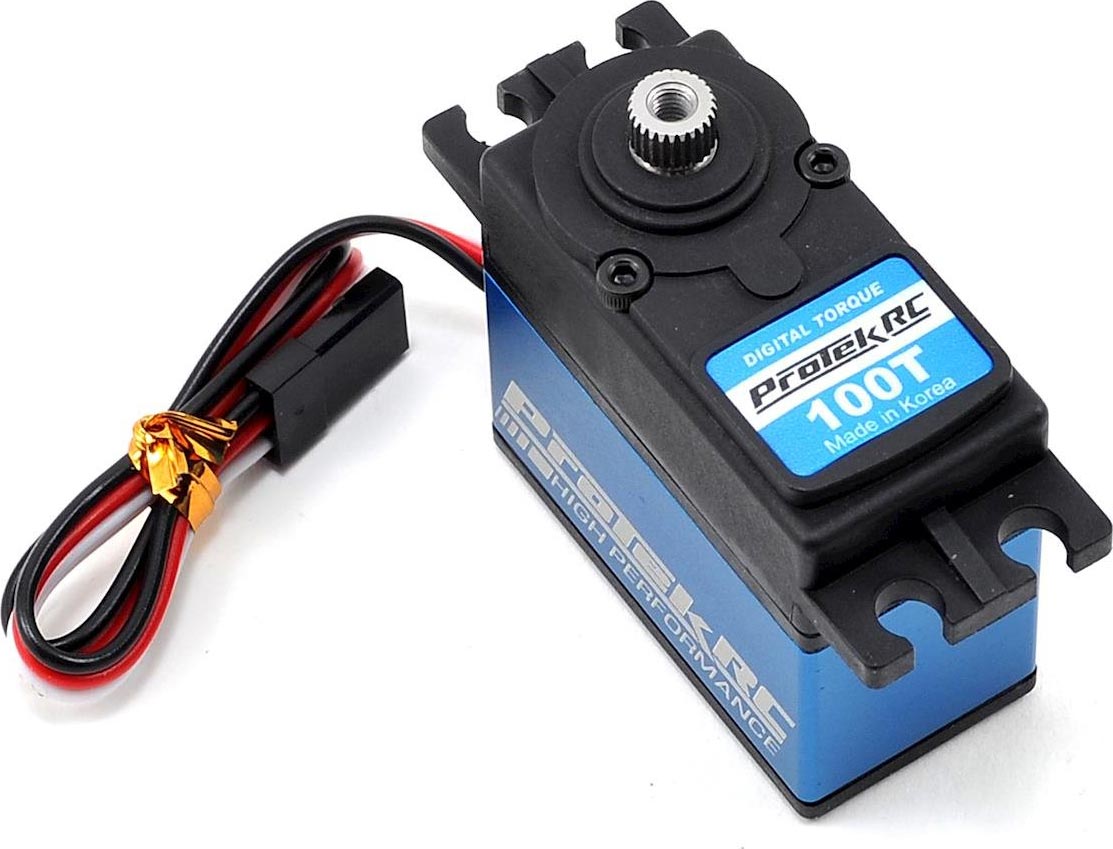

This is the ProTek R/C 100T Digital Torque Metal Gear Servo. ProTek R/C Servos have been developed to provide enthusiasts with high quality servo's that will exceed expectations at every level. With features that meet or surpass what the competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.

The ProTek R/C 100T Digital Torque servo delivers a powerful 216 oz-in of torque with a 0.14 transit speed at 6.0V. Other features include a full metal gear train that is supported by dual ball bearings, a 200mm long 22awg connector wire with gold plated connectors, a cored motor and an aluminum middle case that helps to dissipate heat and helps to increase efficiency.

Stop wasting your money on budget servos that look good in the spec list, but fall short when its time to perform. Get ProTek and don't look back.

Warning! This ProTek R/C servo requires that you use a m3x10mm screw to attach the servo horn to the output shaft. If you choose to use another screw, be sure to use a 10mm length screw. Use of a shorter screw can cause failure and will void your warranty.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
610074804307 0610074804307
PTK-100T
