FEATURES
Bore: 3/8 inches (9.5mm)
Stroke: 1/2 inches (12.7mm)
Operating Pressure: 20 - 35 PSI
Bronze Mainframe and Cylinder
Brass Piston, Connecting Rod and Flywheel
Stainless Steel Driveshaft, Crankpin and Springs
Mahogany Boiler Strips
Presilver-soldered Vertical Brass and Copper Boiler
Pressure Relief Valve
Dimensions: 5" (127mm) x 3" (76mm) x 7-1/2" (191mm)

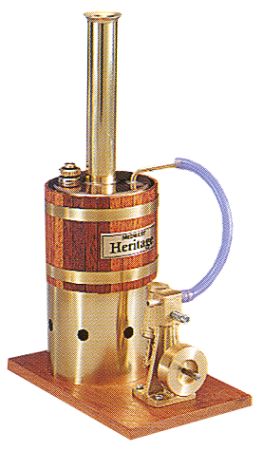

The Midwest Heritage Steam Engine is pre-assembled and can be made operable in less than an hour. It is a vertical single acting, single cylinder oscillating engine that uses Sterno fuel and gives ample power and a 30 minute run tim when used with a boat such as the Midwest Elliott Bay Steam Launch.
Tools required for assembly include: Screw driver, pliers, hobby knife, masking tape, pencil and CA glue.
