SPECIFICATIONS
24 Tooth
Output Spline:
29 mm
Length:
13 mm
Width:
30 mm
Height:
21.9 g
Weight:
4.8 - 6.0 v
Voltage Range:
3.6 kg-cm (50 oz-in)
Torque @ 4.8V:
0.17 sec/60°
Speed @ 4.8V:
4.3 kg-cm (60 oz-in)
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
FEATURES

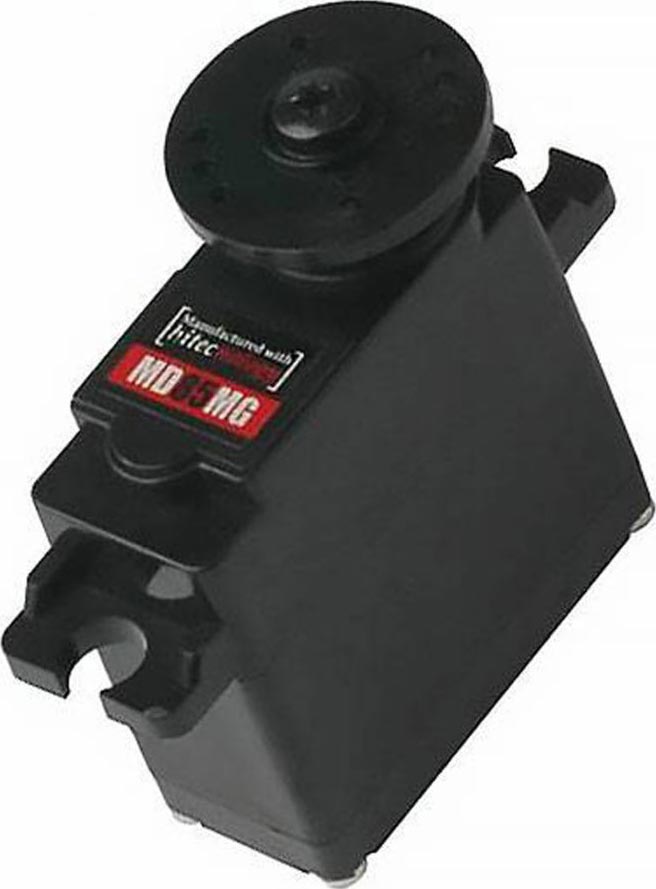

Engineered with Hitec's state-of-the-art D-Series technology, this “micro but mighty” servo is an upgrade from the popular HS-5085MG. With soft-start enabled circuitry, 4096 high-resolution and a long-life potentiometer, the D85MG allows for smooth and decisive movement and accuracy. Programmable application-specific parameters provide the ultimate in maximum servo performance.
