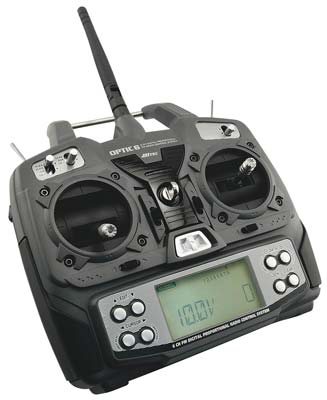

Hitec's popular Optic 6 is now available with 2.4GHz AFHSS technology to give you the convenience and security of the 2.4GHz spread spectrum technology. The Optic 6 is loaded with programming features for Power Planes, Gliders, and Helicopters and features an 8-model memory. Featuring assignable switches, two proportional sliders and dual timer function, the Optic 6 is capable of flying just about any model needing 6 channels or less.
AFHSS with Smart Scan - Rock solid, interference-free performance
AFHSS with Smart Scan - Rock solid, interference-free performance
Hitec's 2.4GHz Spread Spectrum system utilizes the latest Adaptive Frequency Hopping Spread Spectrum (AFHSS) technology and the exclusive Smart Scan system to ensure a rock solid, interference free connection between the transmitter and receiver. When selected, Hitec's 2.4GHz Smart Scan function scans the 2.4GHz specturm to find the cleanest channels in which to operate thereby providing interference free operation even in the most crowded environments
Boosted Omni Directional Antenna (BODA)
Boosted Omni Directional Antenna (BODA)
The Optima 2.4GHz line of receivers feature Hitec's exclusive BODA receiver technology. Independent tests have proven that the single BODA system in Hitec's 6 and 7 channel systems is equal to or better than a dual antenna system, while Hitec's Optima 9 receiver features a dual BODA system to give the added security larger models need.
Telemetry System
Telemetry System
The Optima line of receivers and Spectra 2.4GHz module have full telemetry capabilities with built in low receiver batter warning. Additional telemetry capabilities can be added using optional sensors for display in the Aurora 9 or with Hitec's PC based Telemetry Monitoring System.
Standard Programming
- EPA
- Servo Reverse
- Sub Trim
- Exponential (ch.1, 2, & 4)
- Dual Rates (ch.1, 2, & 4)
- 2.4GHz AFHSS / PPM / QPCM
- Fail Safe (AFHSS & QPCM Only)
- Model Name
- Model Reset
- Model Copy
- Model Select
- Shift Select
- 2 P-Mixes
- Throttle Cut
- Trainer
ACRO/Glider Programming
- Aileron Differential Mix
- Landing Mode Mix
- Flaperon mix
- Elevon Mix
- V-Tail Mix
- Aileron-Rudder Mix
- Ailervator (Dual Elevator) Mix
- Elevator-Flap Mix
- Two P-Mixes
- Crow Mix
- Camber or Reflex
HELI Programming
- 120 CCPM and 90 Mechanical
- Rudder Throttle
- 5 Point Pitch Curve
- 5 Point Throttle Curve
- Throttle Hold
- Revo Mixing
- Swash Select
- Gyro Gain
- 1 NOR and 2 Idle-Ups
