ZHD10042

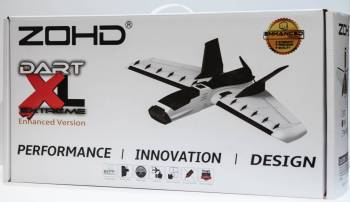

ZOHD Dart XL Extreme PNP w/Motor/ESC/Servo

ZOHD FPV

ZHD10042
ZOHD Dart XL Extreme PNP w/Motor/ESC/Servo
By ZOHD FPV
$279.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... FPV Electric Aircraft ARF
But only from... ZOHD FPV
All items from... ZOHD FPV


 Inventory Status Legend
StockStock availability for on-line ordering
0
$279.99
Warehouse ?
StockStock availability for pick up
0
$279.99
Warehouse ?
1
$279.99
Store - Stratford ?
1
$279.99
Store - Edmonton ?
0
$279.99
Store - Mississauga ?
1
$279.99
Store - Ottawa ?
0
$279.99
Store - Oshawa ?
0
$279.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Dart XL Extreme Propeller 9x4.5
$4.99

Dart XL Extreme Main Wing Kit
$47.99

Dart XL Extreme Vacuum Plastic Set
$15.99

Dart XL Extreme 6-pin Connector For Main Wing
$15.99
Dart XL Extreme Fuselage Kit
$69.99

Dart XL Extreme Full Plastic Set
$19.99

Dart XL Extreme Nose Stickers (5pcs)
$7.99

Dart XL Extreme Main Wing Cf Tube
$6.39
SPECIFICATIONS
1000 mm
Wingspan:
596 mm
Length:
LiPo 4S 3300mAh
Battery Requirements:
9g Metal Gear Digital
Servo(s) Included:
2216-1300KV
Brushless Motor Included:
30A w/5V 3A BEC
ESC Included:
LIONPACK 18650 4S2P 7000mAh Li-Ion Battery
Battery Requirements:
9X4.5
Prop:

FEATURES
  • Carefully chosen airfoil gives the aircraft an incredible lift power and excellent handling
  • Detachable wing and vertical fins make it portable for an easy transport and deployment
  • Keeping with tradition, the Dart XL features a swept-forward wing for stylish design and natural stability in turns and low speeds
  • Fly Green: New ZOHD’s exclusive BEPP material isn’t only crash resistance, but even more important: 100% biodegradable. Future generations will thank you for that.
  • Light-weight composite hard nose for better protection of your expensive camera gear
  • Multi-camera nose: Compatible with most FPV and HD cameras in the market such as Runcam HD, 2, 3S, Swift, Split, GoPro H4-5-6-7, Session and much more!
  • Reversed wingtips, provide more lift force and ensure a super efficient wing surface
  • Vortex generators for improving lift efficiency and gain higher control at low speeds. Use them straight and you will have even better Yaw stability!
  • Load it as much you want with a huge equipment bay!
  • Computer designed and optimized air flow pod, that maximizes cooling, reducing the risk of crashes from overheated electronics
  • Impact resistant cover on wing leading edges and landing skids
  • Built-in carbon fiber tube inside main wings for enhanced performance and rigidity
  • Separate VTX / RX bays with excellent air flow to keep components cool
  • 2021 Enhanced Version 1, Includes Durability, Precision and Quality upgrades compared to the original version: three hatches, revised motor mount and carbon reinforcing.

Dart XL Extreme PNP Includes

  • Brushless Motor
  • Brushless Speed Control
  • Servos

Dart XL Extreme PNP Requires

  • Radio & receiver
  • Battery & compatible charger
  • FPV Camera
  • FPV display (goggles or screen)

Featuring an incredible set of high quality and original innovations.  Intended to give you the ultimate FPV wing for mid and long range. Performance and portability were always on the table, but we didn’t stop there.  Without cutting any corners we went straight on for environmentally friendly materials 100% biodegradable, metal gear servos, high quality power plant, protection for leading edges and skids, vortex generators, revolutionary multi-cam hard nose and much, much more. Check below the full list of features and specs. This is it! ZOHD Dart XL Extreme is ready to hit the skies around the world, and this is just the beginning… join us in this incredible adventure.

Precision is the name of the game: Thanks to its revolutionary and careful design, the plane performs and looks like no other wing in the market. Small size airframe optimized for long range and portability…not to mention tons of COOL factor!

2021 Enhanced Version 1, Includes Durability, Precision and Quality upgrades compared to the original version: three hatches, revised motor mount and carbon reinforcing.
