SPECIFICATIONS
1/3 CMOS
Video Sensor:
5 Mega Pixel
Effective Pixel:
f=2.6mm, angle of view=130°
Fixed focus Lens::
Automatic
Exposure Control:
Automatic
White Balance:
4:3, 1440*1080 @ 30fps
Dynamic video:
High speed microSD (32GB max)
Digital Video Recording:
36 mm
Length:
47 mm
Width:
45 mm
Height:
42 g
Weight:
-10℃ - 60℃
Operating temperature:
200mW/23dBm
Video Transmitter:
5645-5945MHz, 8CH
Video Transmitter Freq:
RP-SMA (no pin)
Antenna Connector:
FEATURES

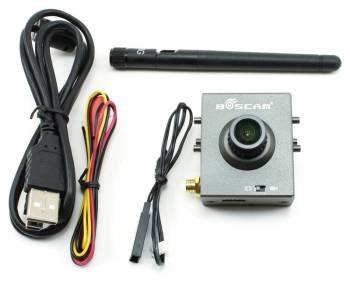

Boscam makes getting into FPV easy with the TR1 all in one solution. By integrating an HD camera, 200mW video transmitter and DVR (records to microSD) into a turnkey system adding first person video to your model has never been easier. The aluminum case is lightweight and offers great protection for the electronics inside. Mounting points are incorporated on the sides for various Pan/Tilt mechanisms. Get in on the action today!
*Note: transmitted video is VGA (640x480) not HD
Notice: The use and operation of this product in Canada may require an amateur radio operators license (HAM license). It is the responsibility of the purchaser to ensure they are complying with Industry Canada laws and regulations. Great Hobbies will not be held responsible for the improper use of this product. We encourage all users to educate themselves about safe and responsible operation of aircraft piloted first person view (FPV).
