ZENG45

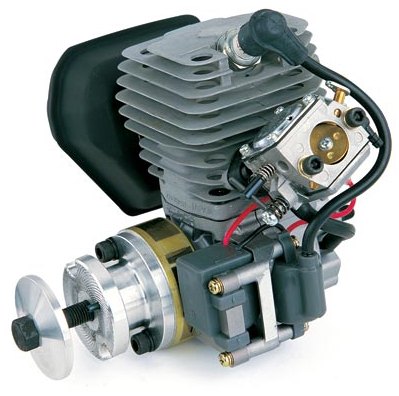

Zenoah G-45 w/Muffler

RESOURCES

Substitutions (2)
Replacement Parts (38)
Optional Items (3)
Manual/Diagram
Manual, Exploded, 3-View, Parts
ZENOAH

ZENG45
Zenoah G-45 w/Muffler
By ZENOAH
Discontinued
Click to Enlarge
click to enlarge

More like this... Gas Aircraft Motors
But only from... ZENOAH


 Inventory Status Legend
Stock availability for on-line ordering
0
$467.49
Warehouse ?
Stock availability for pick up
0
$467.49
Warehouse ?
0
$467.49
Store - Charlottetown ?
0
$467.49
Store - Edmonton ?
0
$467.49
Store - Mississauga ?
0
$467.49
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
45.0 cc
Displacement:
43.0 mm
Bore:
31.0 mm
Stroke:
74 oz
Engine Weight:
2,000 - 9,000
RPM:
5 oz
Muffler Weight:
Gas/Oil Mix
Fuel:
18 x 8 to 20 x 7
Prop Range:
M10 x 1.25 mm
Crankshaft Threads:

FEATURES
  • 2-Stroke Gasoline Engine
  • CDI ignition system
  • One piece chromed cylinder
  • Ball Bearing-supported crankshaft
  • Walbro HDA-48D Carb
  • Chrome-Plated, Ring-Type Cylinder

The Zenoah G-45 steps you up to 45cc and 3.3 horsepower at 9,000rpm. It'll turn a Zinger 20 x 10 at about 7,200rmp. If you're craving "unlimited" performance, try it in your models instead of the G-38! Use an 18 x 8 or 20 x 10 propeller. Uses a gas/oil mixture of 32:1.

For giant scale pilots, the name Zenoah is synonymous with quality and performance. These engines are manufactured specifically for radio control applications to exacting tolerances which have made them the standard by which all others in their class are judged.

Zenoah engines offer unsurpassed reliability and performance—not to mention low-cost gasoline operation. And they're available in a variety of displacements to power just about any giant scale model you have in mind. They're built with quality features like CDI ignition systems, one-piece chromed cylinders, ball bearing supported crankshafts, Walbro™ carburetors and more.

They're also built to last, boasting an incredible 1000 hour plus operational life, more than most modelers will ever put on an engine.

Your Zenoah comes with everything you will need for installation such as a muffler, motor mount, and throttle linkage.

Note: the optional spring starter (ZEN4500) is recommended for easy starting.
