TML03026

1/10 4WD Rock Rey BND w/AVC

Product Info | Replacement Parts | Optional Items
TEAM LOSI

TML03026
1/10 4WD Rock Rey BND w/AVC
By TEAM LOSI
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric Rock Racer
But only from... TEAM LOSI
All items from... TEAM LOSI


 Inventory Status Legend
StockStock availability for on-line ordering
0
$469.99
Warehouse ?
StockStock availability for pick up
0
$469.99
Warehouse ?
0
$469.99
Store - Stratford ?
0
$469.99
Store - Edmonton ?
0
$469.99
Store - Mississauga ?
0
$469.99
Store - Ottawa ?
0
$469.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Silicone Shock Oil 30wt 2oz
$8.99

Front Hinge Pins & Brace Set Baja Rey
$18.99

Button Head Screws M3 x 14mm (10)
$8.99

Standard Servo Extension 3"
$7.99
6x12mm Sealed Ball Bearing (4)
$18.99

Button Head Screws M3 x 20mm (10)
$8.99

Lock Nut Flanged M5 X 0.8 Serrated (10)
$18.99

Hex Rotor Caliper & Pin Set (4) Baja Rey
$32.99
SPECIFICATIONS
20.75 in
Length:
12.75 in
Width:
8.75 in
Height:
6.55 lbs
Weight:
2.2 in
Ground Clearance:
15.0 in
Wheelbase:
4WD With Center Diff
Drivetrain:
One 2 or 3 cell, 5000+ mAh 30C LiPo battery with EC3 connector
Battery Requirements:
To suit battery
Charger Requirements:
No
Radio Included:
Spektrum™ 4-Channel DSMR® AVC Surface Receiver
Receiver Included:
Spektrum™ 9KG 23T Waterproof Servo
Servo Included:
Dynamite® Fuze™ 550 Brushless Motor 3800Kv
Brushless Motor Included:
Dynamite® Fuze™ 130A Sensorless Brushless Waterproof ESC
ESC Included:
No
Battery Included:

FEATURES
  • Realistic Rock Racer chassis design
  • 3.5mm hard-anodized aluminum chassis plate
  • Integrated chassis roll cage
  • Dynamite 2800Kv brushless power system
  • Spektrum™ AVC® technology
  • Long-travel suspension
  • 4-link live rear axle
  • Waterproof electronics
  • Sealed, metal-gear transmission and diffs
  • Coil-over, oil-filled shocks
  • Easy-access battery compartment


Needed to Complete

  • DSMR compatible, 2+ channel, surface transmitter
  • One 2 or 3 cell, 5000+ mAh 30C LiPo battery with EC3 connector
  • Appropriate LiPo charger


What's in the Box?

  • (1) Losi® Rock Rey® BND 1/10 4WD Rock Racer
  • (1) Spektrum™ 4-Channel DSMR® AVC Surface Receiver
  • (1) Spektrum™ 9KG 23T Waterproof Servo
  • (1) Dynamite® Fuze™ 130A Sensorless Brushless Waterproof ESC
  • (1) Dynamite® Fuze™ 550 Brushless Motor 3800Kv
  • (1) Product Manual

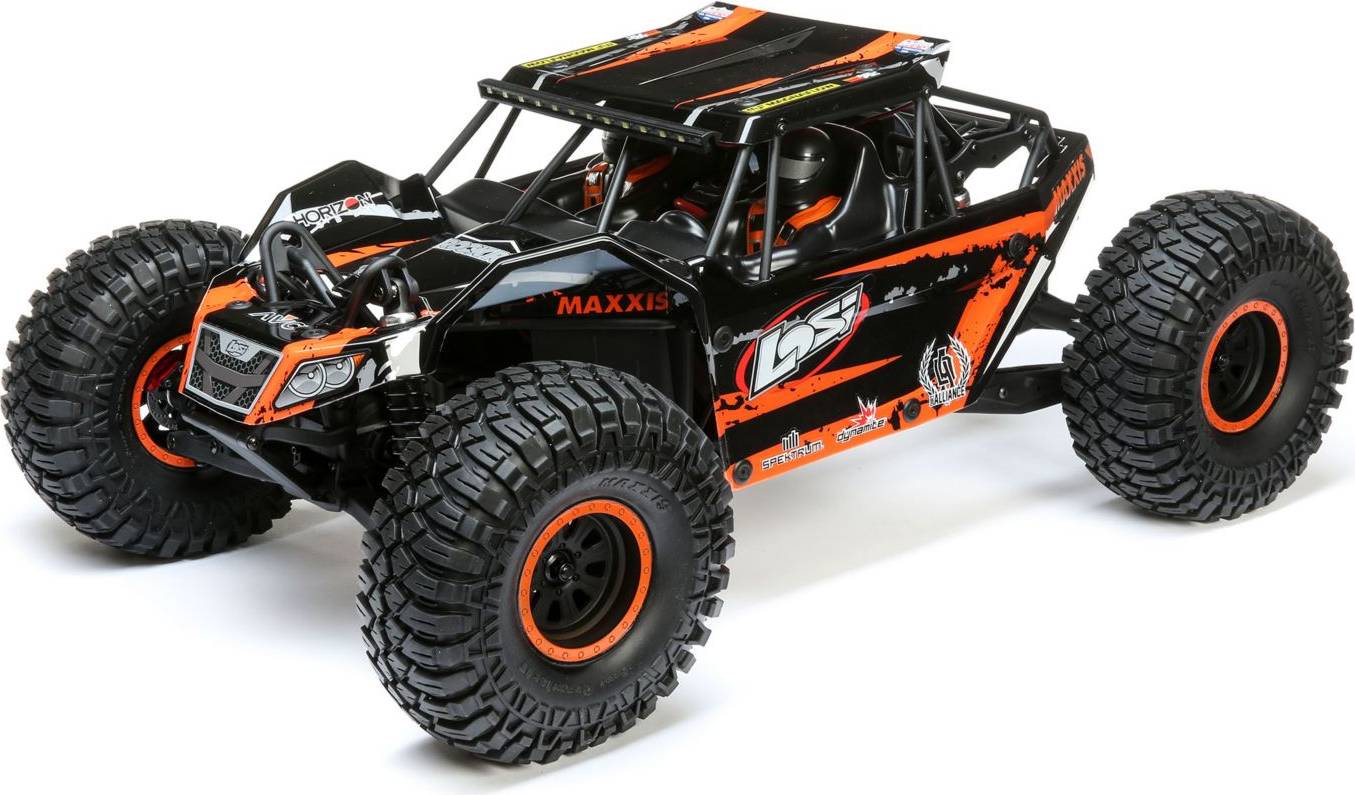

Overview

Based on the Losi® Baja Rey™ platform, the 1/10th 2.2 Rock Rey™ rock racer takes no prisoners. It embodies everything drivers love about desert and rock racing culture and features a new cage and bodywork that looks just like the full-scale vehicles. This rock racer’s new front-end geometry adds the needed handling for racing while taking advantage of the Baja Rey rear-loading battery, bottom-loading motor, brushless power and AVC® system. From rocks to water to mud, you’ll experience next-level awesomeness, drive after drive.

Dynamite® 2800Kv Brushless Power System

The vehicle comes equipped with a Dynamite Fuze™ 2800Kv brushless motor and a waterproof 130A ESC. This potent combination can handle 2S or 3S LiPo batteries (sold separately) and will allow you to hurtle across the landscape at speeds of up to 40+ mph.

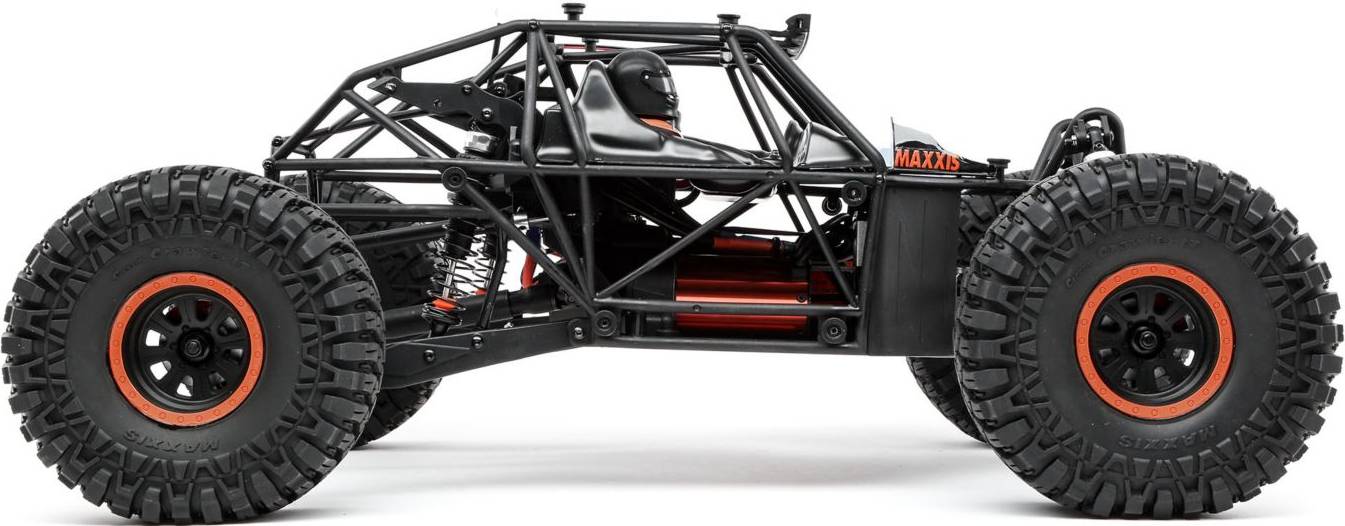

Realistic 4WD Chassis with Long-Travel Suspension

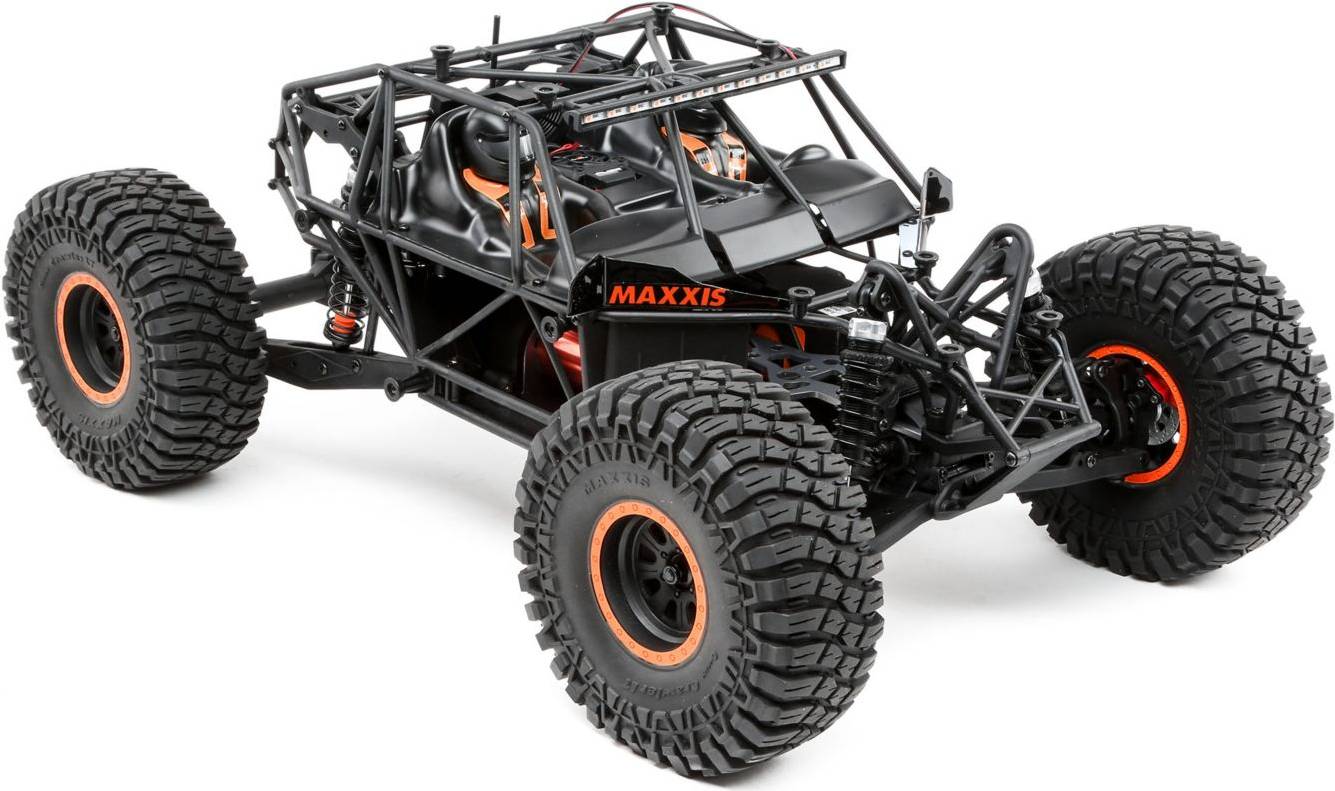

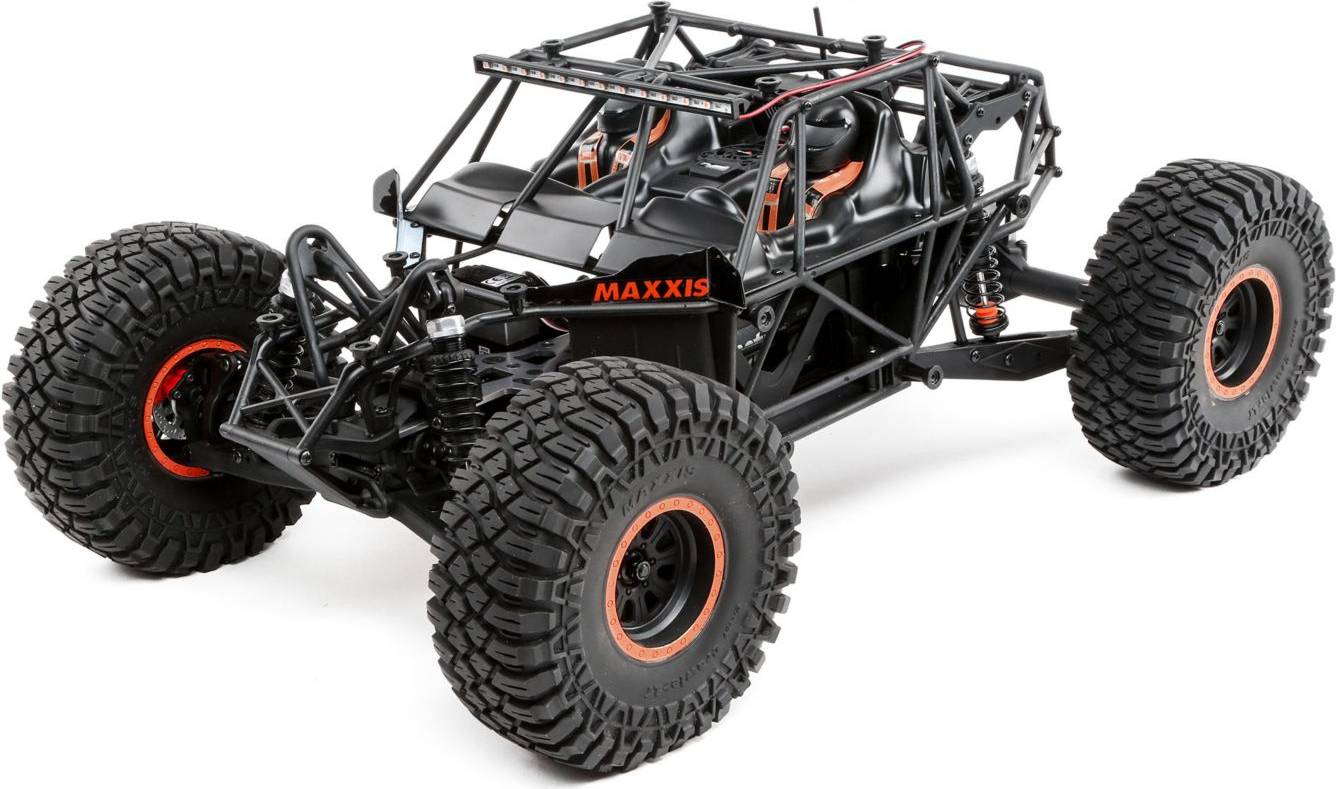

The Rock Rey chassis is a brilliant blend of scale realism with functional 4WD capabilities. The foundation consists of a 3.5mm, hard-anodized aluminum chassis plate that is integrated with a realistic roll cage made of super-tough composite material. To this it adds a long-travel, independent front suspension and 4-link live rear axle that look and function exactly like their full-scale counterparts.



Bind-N-Drive™

Bind-N-Drive™ (BND) is a transmitter-less option for RC enthusiasts who already own a surface transmitter featuring Spektrum 2.4GHz DSM Technology. This money-saving innovation allows you to add a Bind-N-Drive vehicle to your collection without the extra cost or clutter of an extra transmitter.

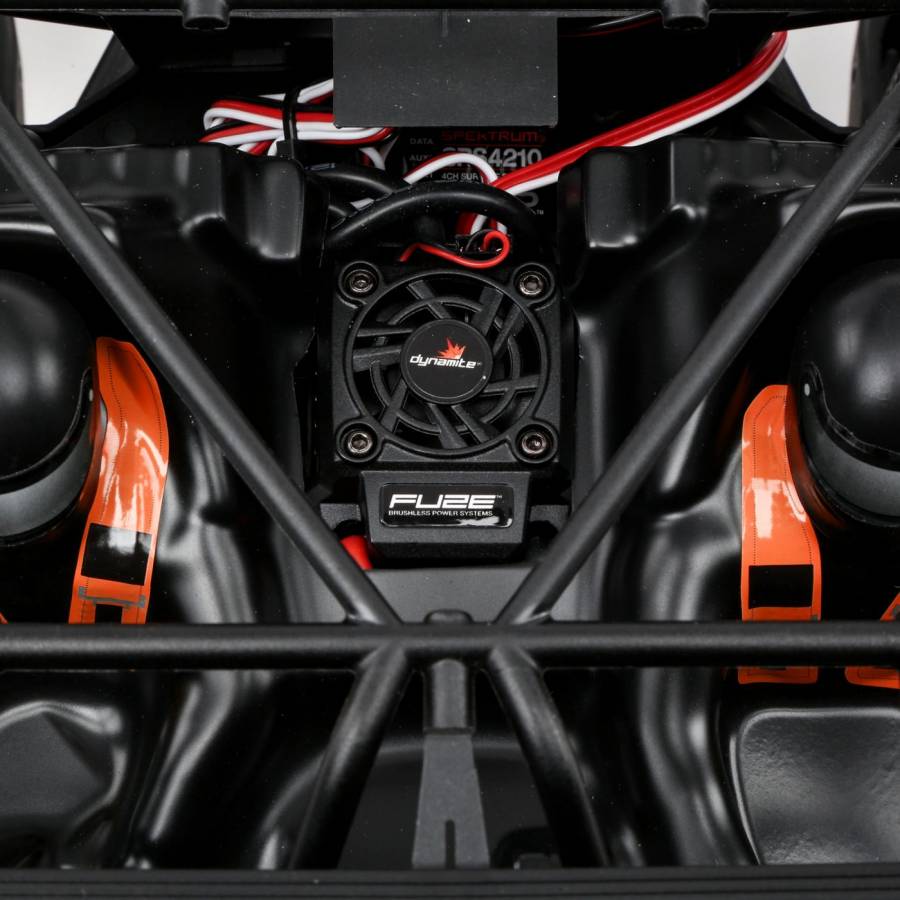

Easy-Access Motor

The unique design of the chassis allows the Dynamite Fuze™3800Kv brushless motor to be accessed without difficulty. Drivers simply remove three screws in the bottom of the chassis and they can then effortlessly make gear changes and service the motor.

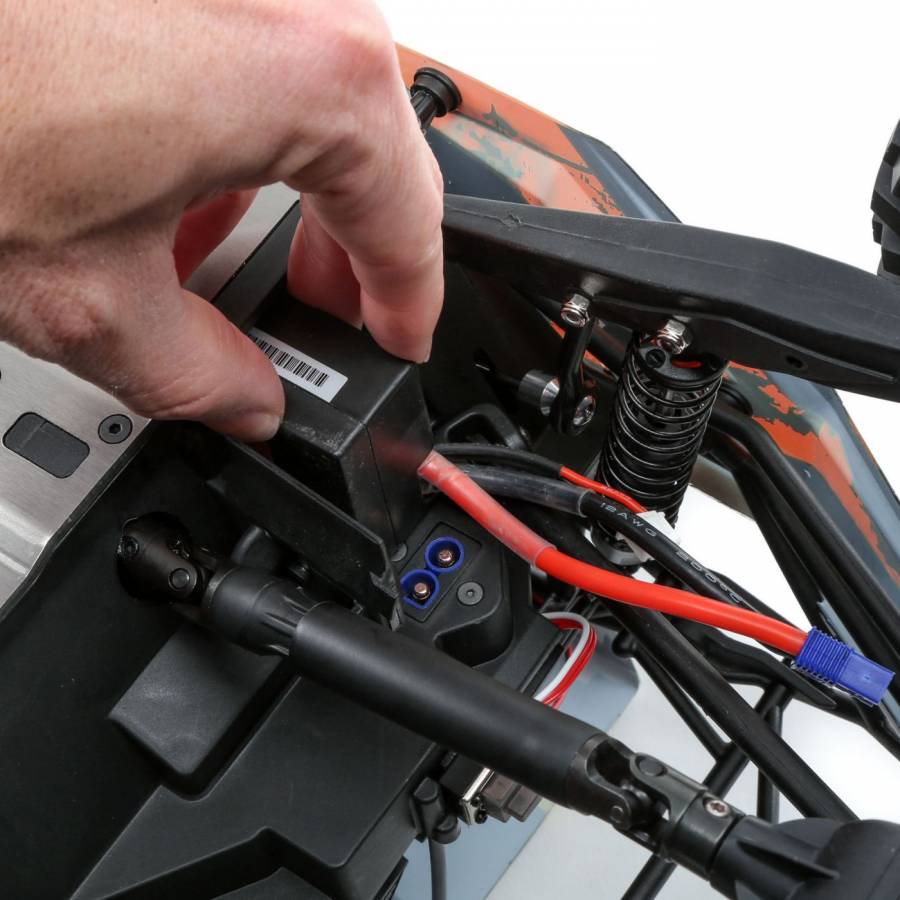

Easy-Access Battery Compartment

To help withstand the trials and tribulations of off-road driving, the Baja Rey™ desert truck was built on a durable reinforced composite chassis with a bottom load battery compartment. Quickly and easily make battery changes without removing the body or wrestling with battery straps.



Sealed Metal-Gear Transmission and Diffs

The single-speed transmission, as well as the front and center diffs, are sealed against the elements and engineered to handle the abuse of a high-output brushless motor and punishing terrain. MOD 1 gears further increase the durability of this desert beast.

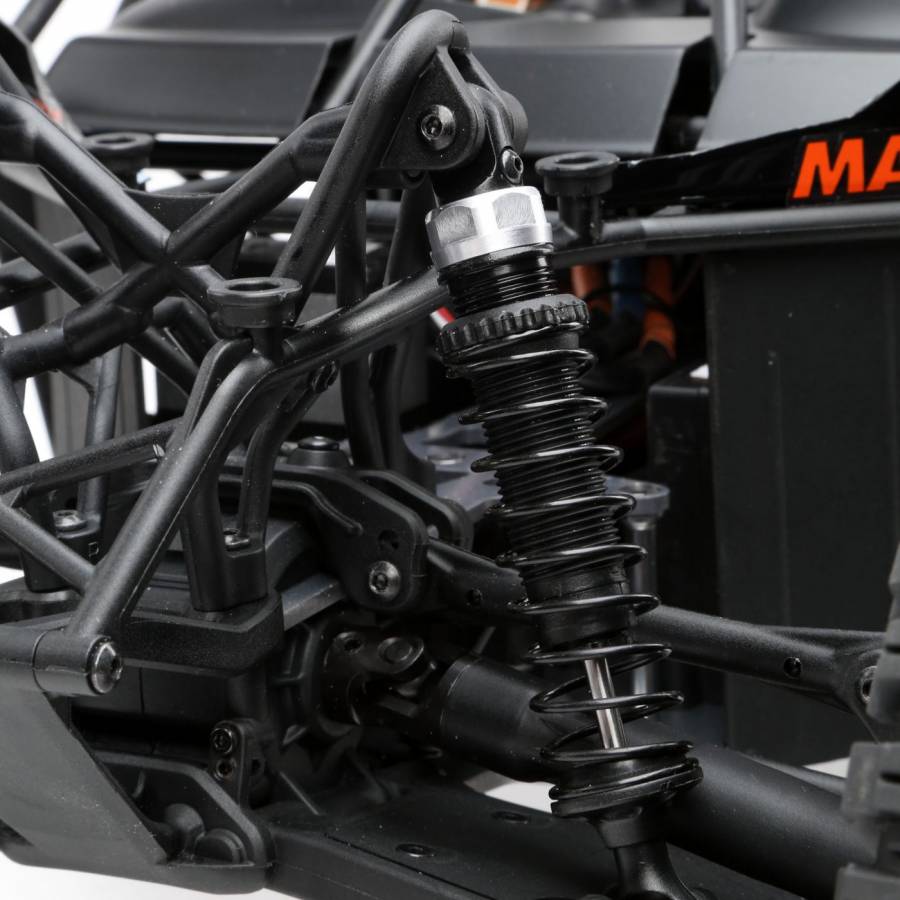

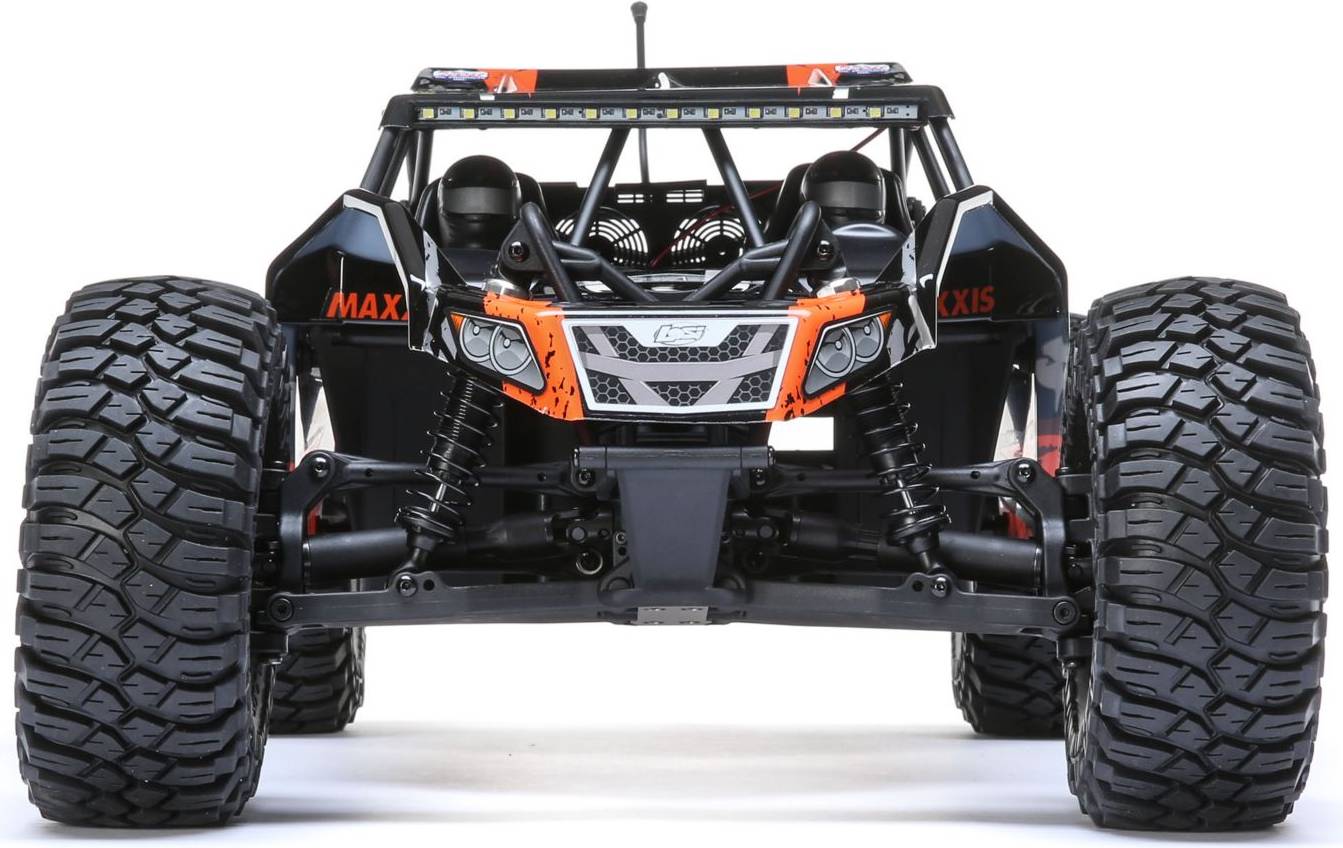

Coil-over Oil-Filled Shocks

The long-travel shocks do a fantastic job of soaking up the energy from big bumps and jumps. They also feature threaded shock bodies with adjustment collars so you can fine tune the pre-load settings of the coil-over springs. External bump stops provide plush landings on the hardest surfaces.

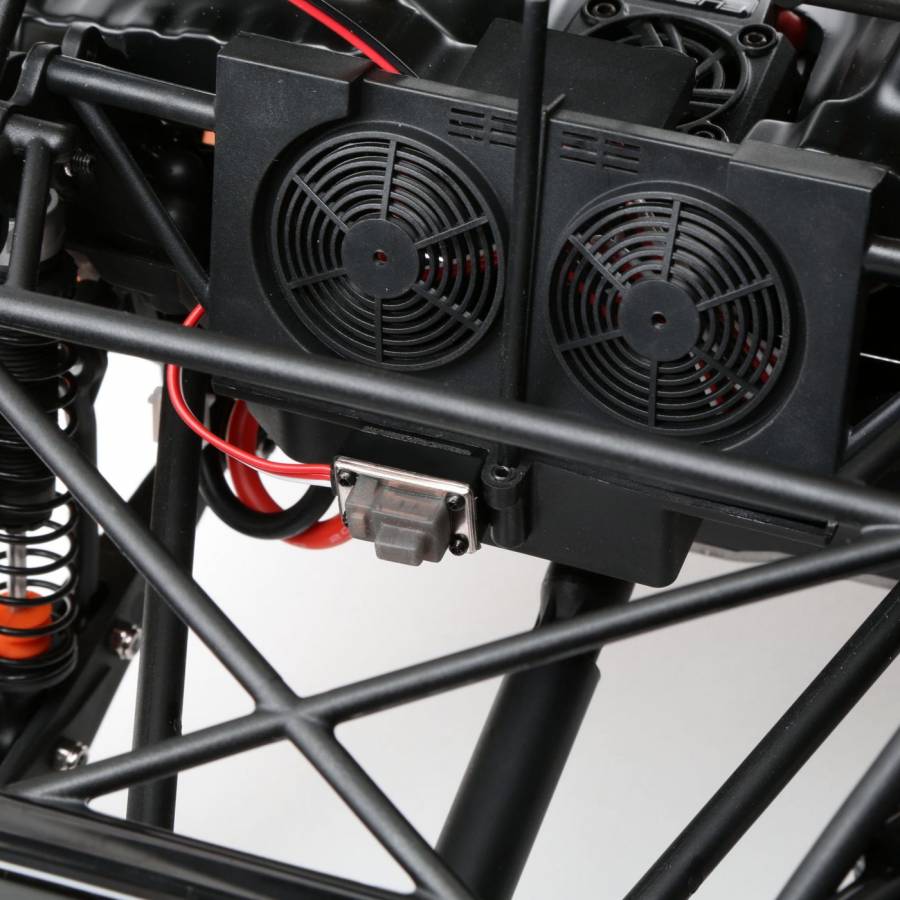

Waterproof Electronics

The Rock Rey™ desert truck is loaded with waterproof electronics including the receiver, servo and ESC. Everything is sealed against the elements allowing you to splash in the rain, spin in the mud and make tracks in the snow. It’s full-throttle freedom to run anytime, rain or shine.

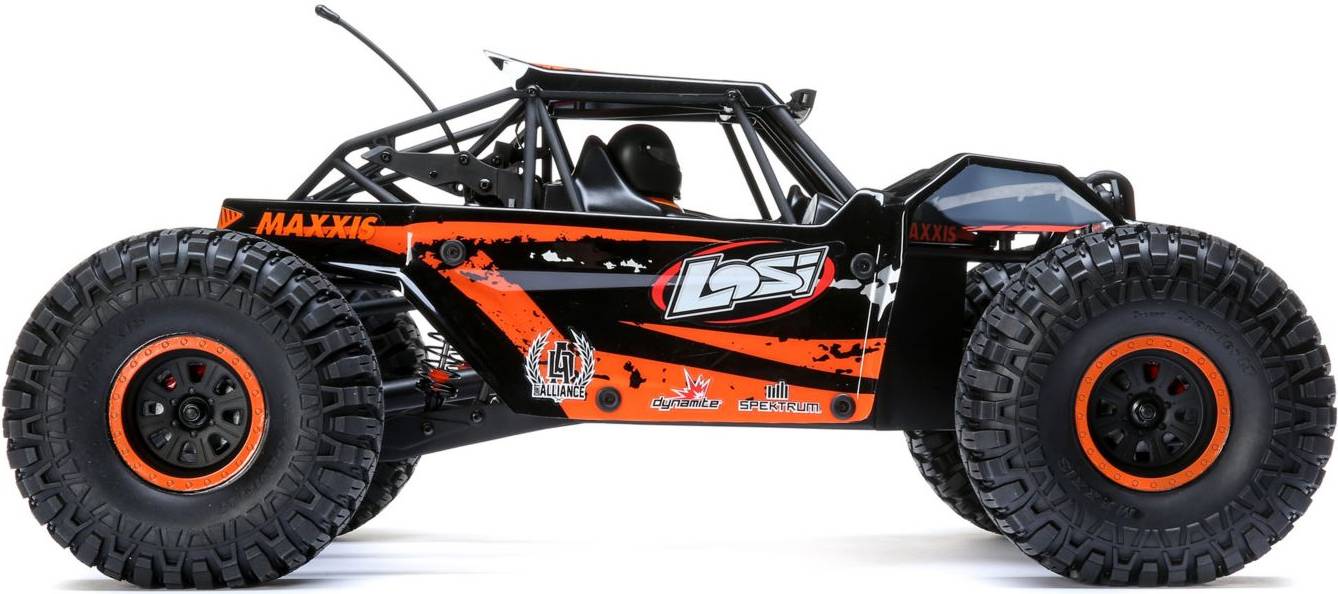

Bolt-On Body Panels and Detailed Interior

The four piece bolt-on body panels give the truck an authentic factory look. Eliminating the need for body posts that spoil the scale look, these panels are polycarbonate for incredible durability and rugged good looks. You also get a molded interior that includes a driver and rider figure, both of which sport racing helmet and harness details.

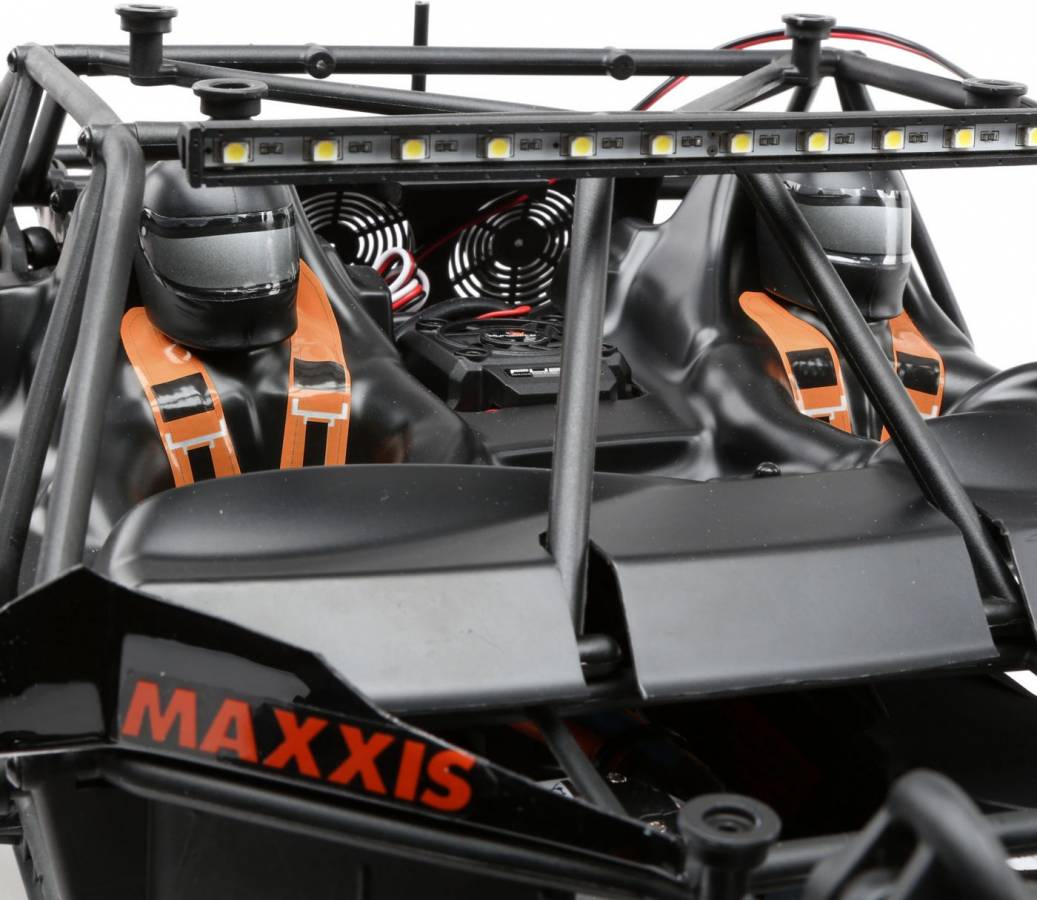

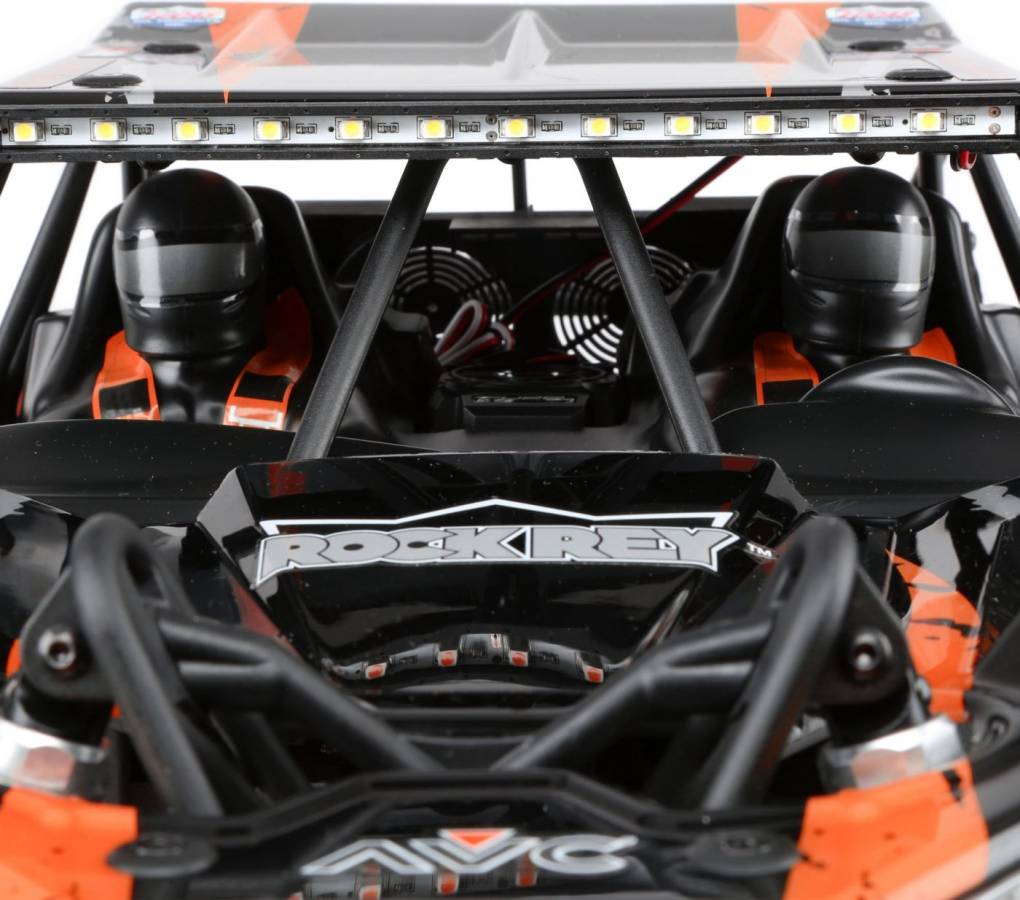

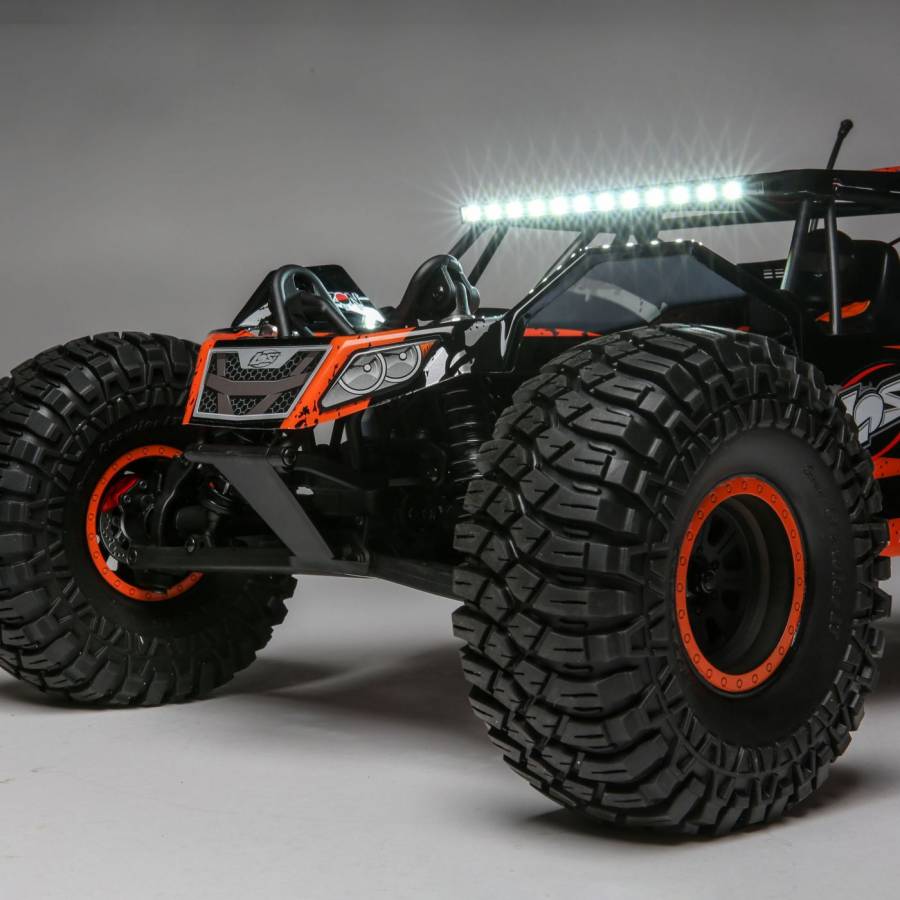

LED Light Bar

The fun doesn’t stop even when the sun goes down with the Rock Rey™. Twelve brilliant LEDs on the integrated light bar cast more than enough illumination for running at night. Plus, the body-mounted LEDs place only a small demand on the battery allowing you to stay out all night!
