TLR05001

5IVE-B Race Kit 1/5 4WD Buggy

RESOURCES

Items Required to Complete (9)
Replacement Parts (54)
Optional Items (18)
TEAM LOSI RACING DIVISION

TLR05001
5IVE-B Race Kit 1/5 4WD Buggy
By TEAM LOSI RACING DIVISION
$1,169.99 CAD    1659.99
Save $490.00 (30%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Gasoline 4WD Buggy Kits
But only from... TEAM LOSI RACING DIVISION


 Inventory Status Legend
Stock availability for on-line ordering
0
$1,169.99
Warehouse ?
Stock availability for pick up
0
$1,169.99
Warehouse ?
0
$1,169.99
Store - Charlottetown ?
1
$1,169.99
Store - Edmonton ?
0
$1,169.99
Store - Mississauga ?
0
$1,169.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
33 in
Length:
18 in
Width:
12.13 in
Height:
30.5 lbs
Weight:
3.5 in
Ground Clearance:
22.75 in
Wheelbase:
4WD Shaft Driven
Drivetrain:
2+ channel radio system
Radio Requirements:
3 x 1/5th scale servos
Servo Requirements:
26cc - 29cc
Engine Requirements (gas):
Receiver battery pack
Battery Requirements:

FEATURES
  • Purpose-built, racing kit based on the 8IGHT platform
  • Hard-anodized, 5mm 6061-T6 aluminum chassis plate
  • Heavy duty brakes
  • Dual-steering-servo radio tray
  • Cab-forward racing body
  • Racing wing with removable wicker bill
  • Aluminum clutch carrier and center-diff case
  • Hard-anodized, 24mm aluminum shocks with bleeder caps
  • AHard-anodized aluminum shock towers with multiple mounting holes
  • Light, one-piece, glue-style wheels
  • Specially designed air filter for racing engines
  • Protective axle boots
  • Adjustable toe and anti-squat plates

The 5IVE-B™ buggy is the 1/5-scale kit for hardcore racers who don't want to settle for anything but the best. The 5IVE-B has been designed from the ground up to the exacting standards of TLR® engineering and includes standard features you simply won't find in anything else.

Purpose-Built Racing Chassis

Unlike lesser 1/5-scale basher-based buggies modified for racing the Team Losi Racing 5IVE-B has been designed for one purpose: Racing. The 5IVE-B features a 5mm 6061-T6 aluminum chassis specifically engineered for competition. The chassis plate has been inspired by the legendary TLR 8IGHT™ platform, featuring a shorter wheel base than others for improved handling. The chassis plate also has milled pockets that save weight and allow enough flex for maximum traction under hard acceleration.

Heavy Duty Braking System

The 5IVE-B features stamped-steel rotors and, when combined with the heavy duty plates and pads, provide a sense of confidence and control that allows racers to drive harder into corners and come to a stop more quickly. Front-to-rear braking bias can also be fine-tuned for evolving track conditions.

Dual-Steering-Servo Radio Tray

The 5IVE-B radio tray has been designed to accommodate the most powerful 1/5-scale steering servos available. This includes the Spektrum™ line of 1/5-scale servos with patent-pending Back EMF technology that prevents servo fade and maintains maximum holding power for the duration of a receiver pack.

Racing Body and Wing

The 5IVE-B body has been inspired by those used on 1/8-scale racing buggies, featuring a cab-forward design. This distinctive shape provides greater front down force which improves steering. The wing features a removable wicker bill for tailoring the rear down force to meet the precise track conditions.

Aluminum Clutch Carrier and Center Diff Case

The 5IVE-B features race-bred drive system engineered to exacting standards to harness the power of a high-output gas engine during the most-extreme conditions. The clutch and center differential are both CNC-machined aluminum, providing strength and durability while helping to dissipate heat, keeping things cool and providing more consistent performance throughout a run.

Hard-Anodized Aluminum Shocks and Shock Towers

The hard anodized 24mm shocks include bleeder caps that make them easier to build without sacrificing performance. The machined aluminum shock towers offer multiple shock mounting options that give racers an abundance of tuning options for different track conditions.

One-Piece Glue-Style Wheels

The low rotational mass of these wheels allow the 5IVE-B to accelerate faster with less stress on drivetrain components.

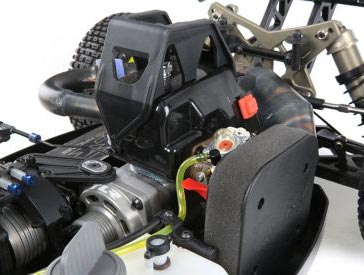

Air Filter Designed Specifically for the 5IVE-B Buggy

Whatever 25cc-to-32cc engine you install in your buggy the included air filter has been designed for maximum air flow to the carb while keeping dirt, grit and debris out of your engine. This translates into an air filter which provides maximum protection while unleashing the monster horsepower your engine was built for.

Axle Boots

Molded rubber boots on the CVAs and center drive train dog bones increase U-joint life. The boots help keep grease in and dirt out so your axles last longer and require less maintenance.

Adjustable Toe and Anti-Squat Plates

For maximum tuning the 5IVE-B includes adjustable front and rear A-Arm mounts. By swapping out inserts you will be able to fine tune your car by altering the toe-in, anti-squat to maximize the traction and overall performance of the chassis.
