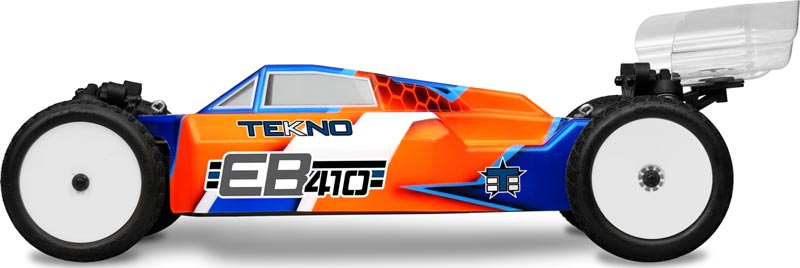

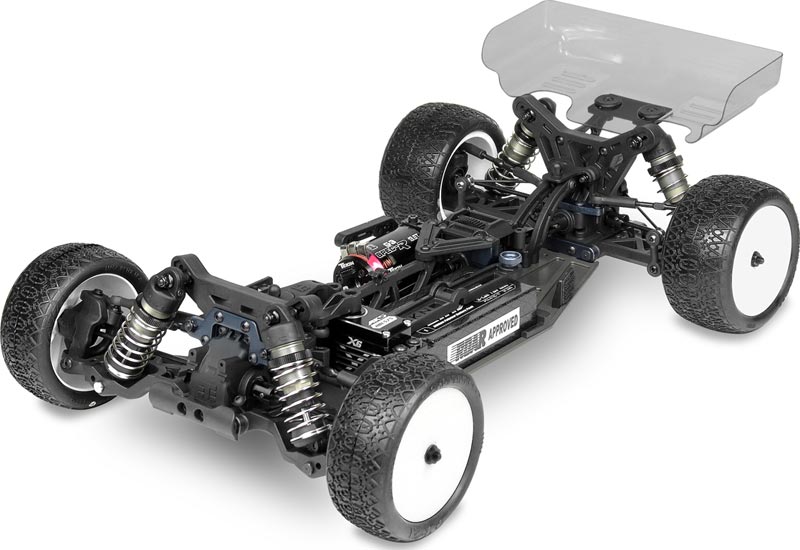

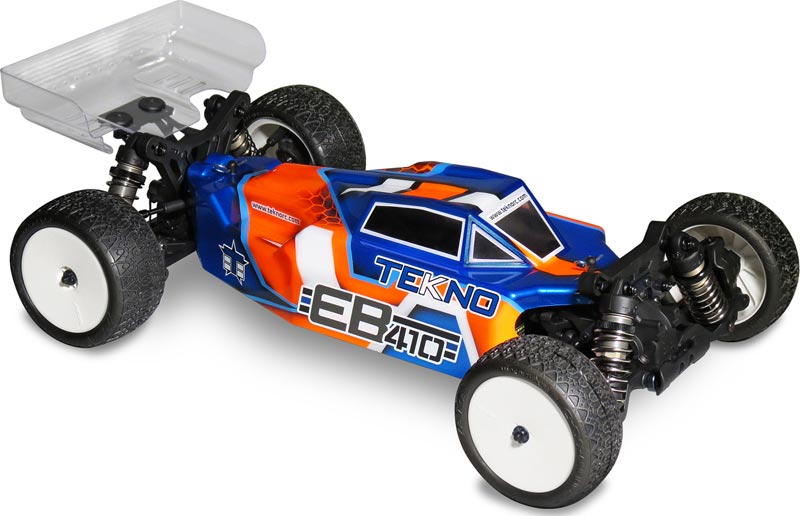

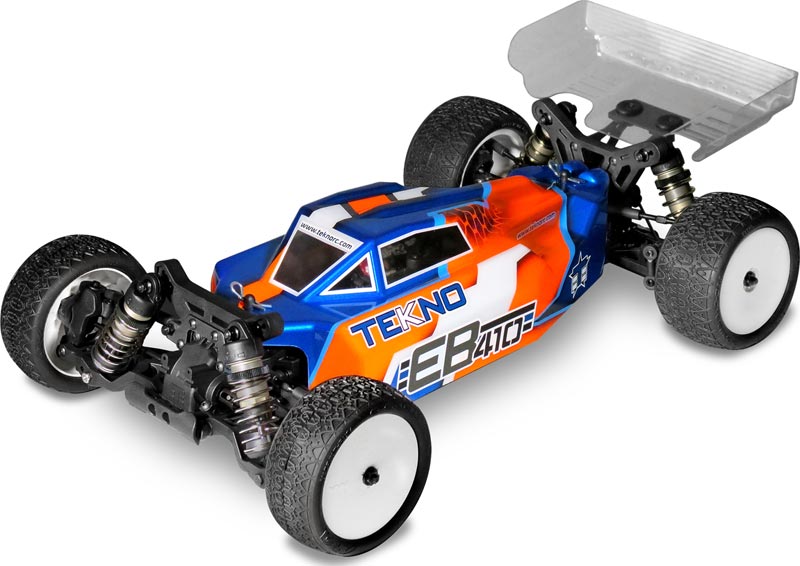

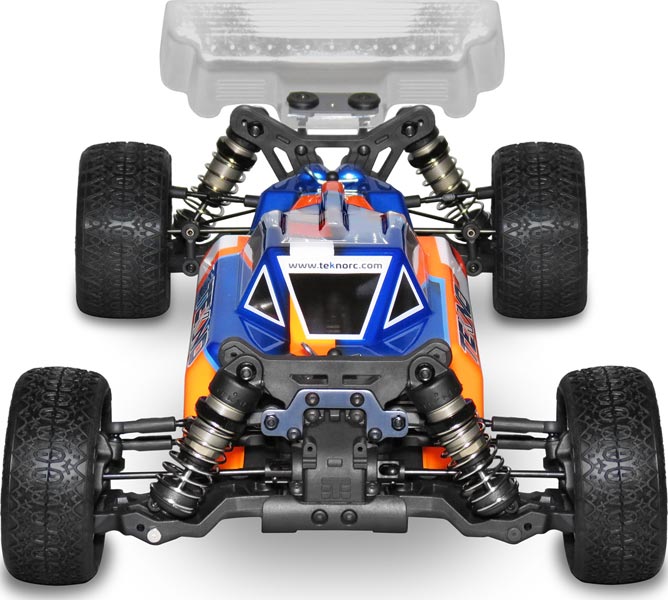

        This is the Radio Controlled, Electric Powered, 1/10 Scale
EB410 Competition Buggy Kit from Tekno RC.

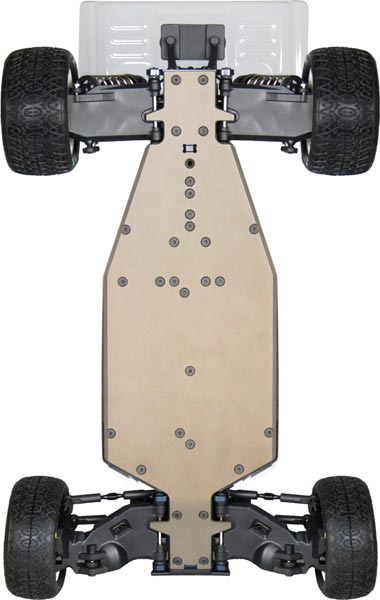

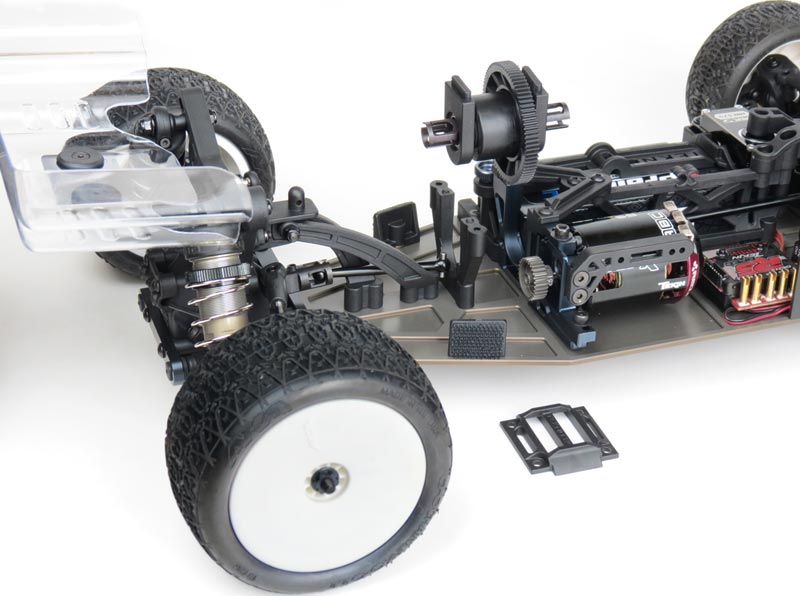

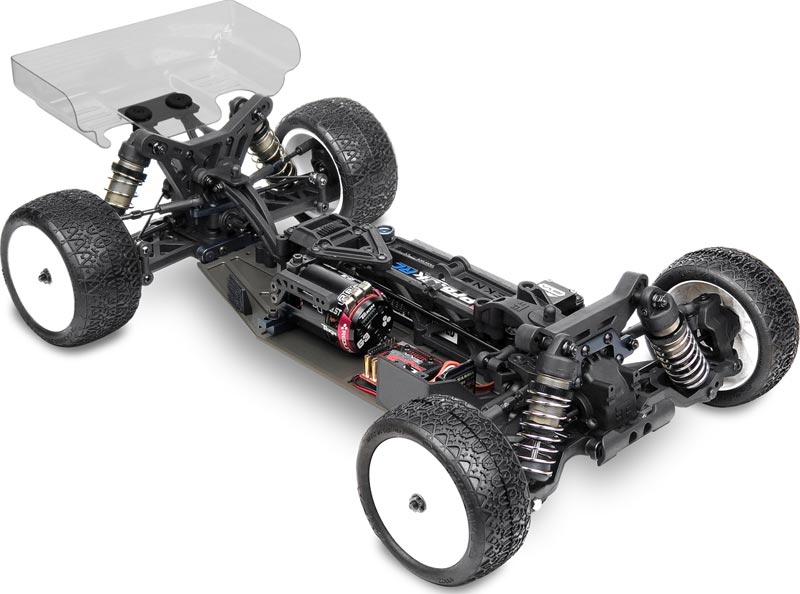

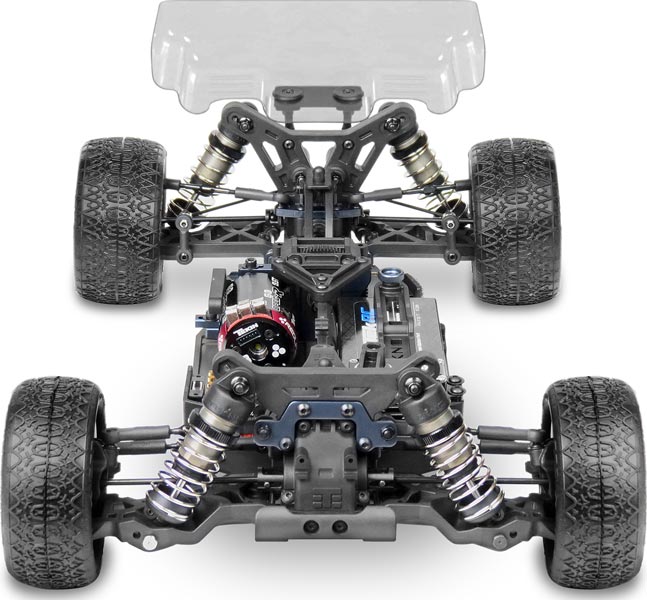

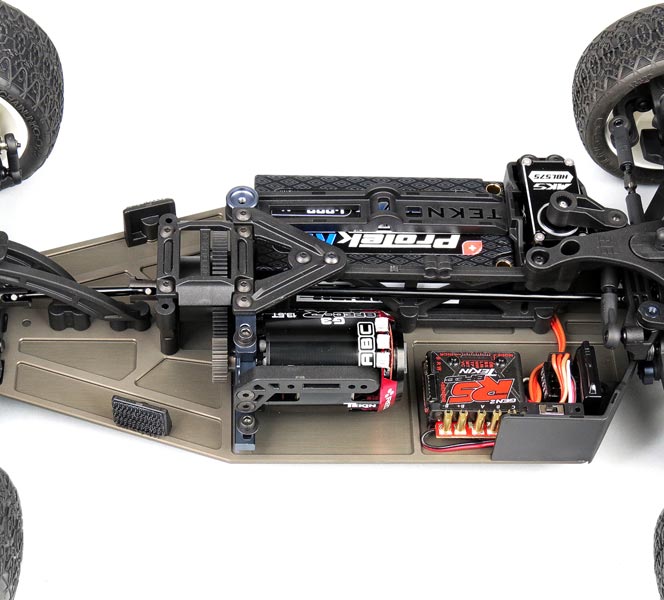

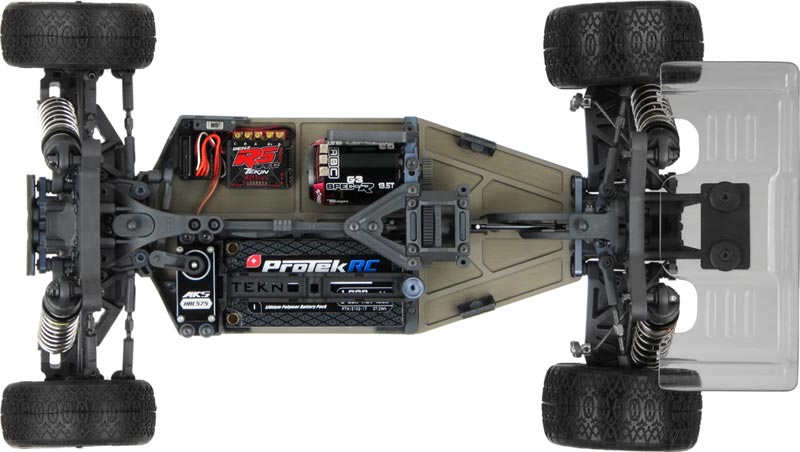

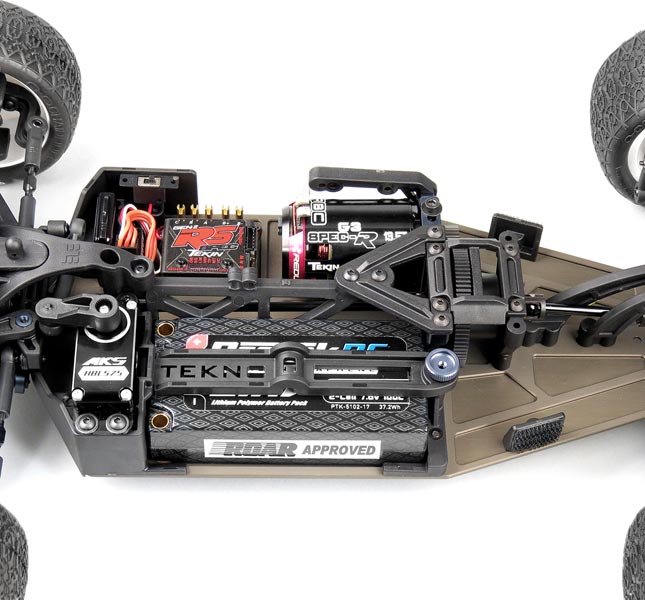

FEATURES: Chassis: Aircraft-grade 7075 hard anodized aluminum, battery, ESC,
RX sit 1.5mm below top surface for lower center of gravity

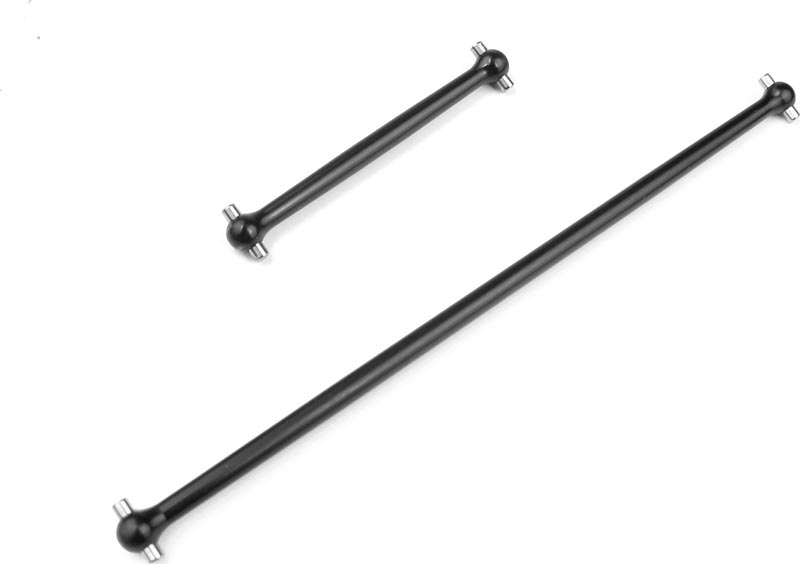

Drive: Four wheel shaft, bearing captured CVA system transfers power
to the wheels, 6mm diameter hardened steel stub axles

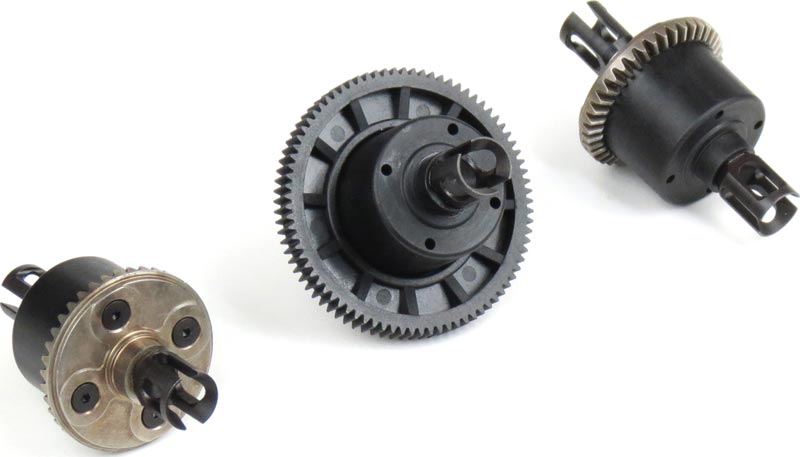

Differentials: Three, planetary gear, fluid filled, adjustable
uses #15,000 diff oil (included)

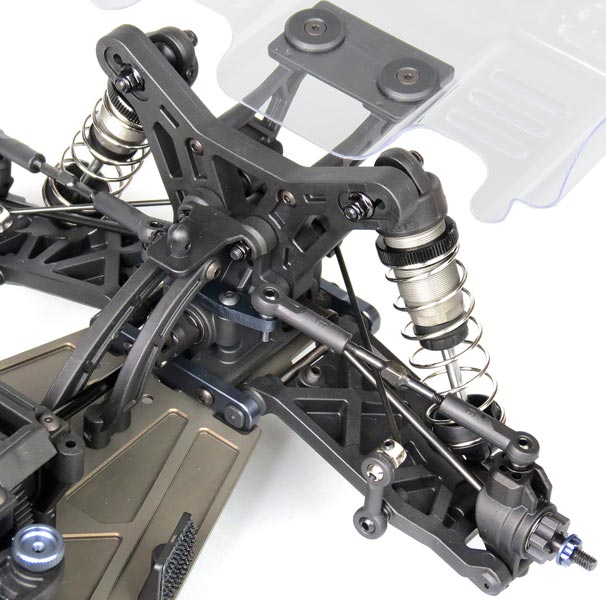

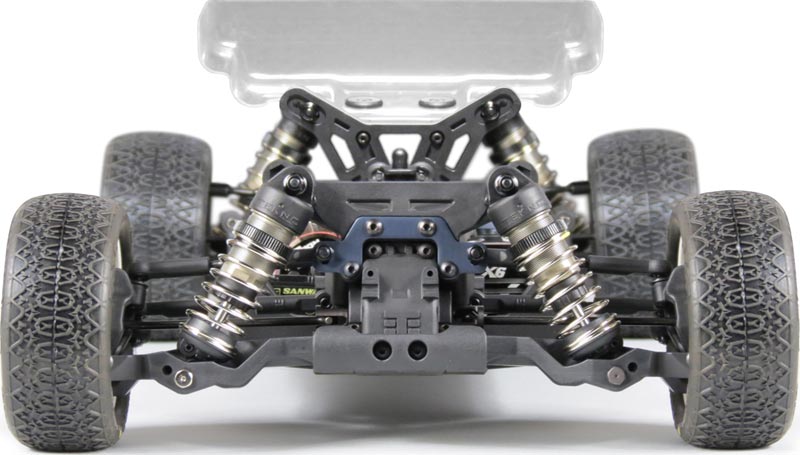

Suspension: Oil-filled shocks with front and rear sway bars

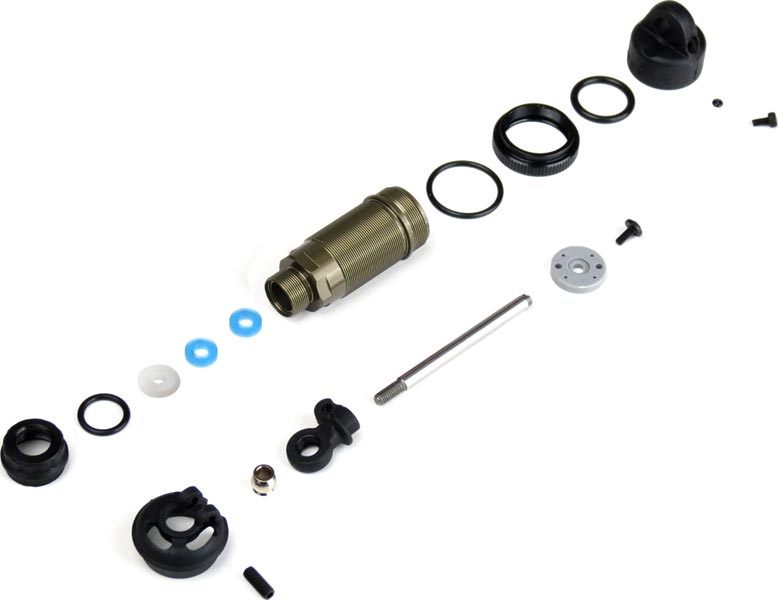

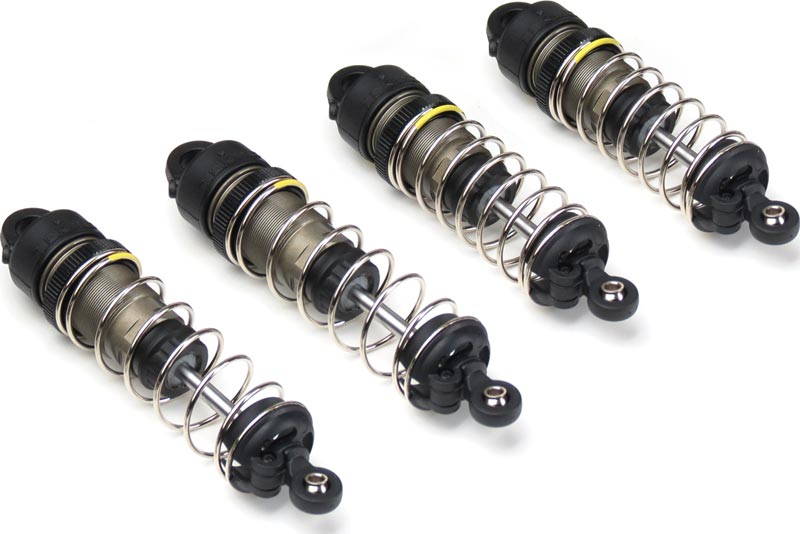

Shocks: Oil-filled 13mm Big Bore, 3.5mm shafts, compact cartridge
with low profile shock caps for class leading suspension travel
uses #500 weight shock oil (included)
Shock Towers: Composite plastic

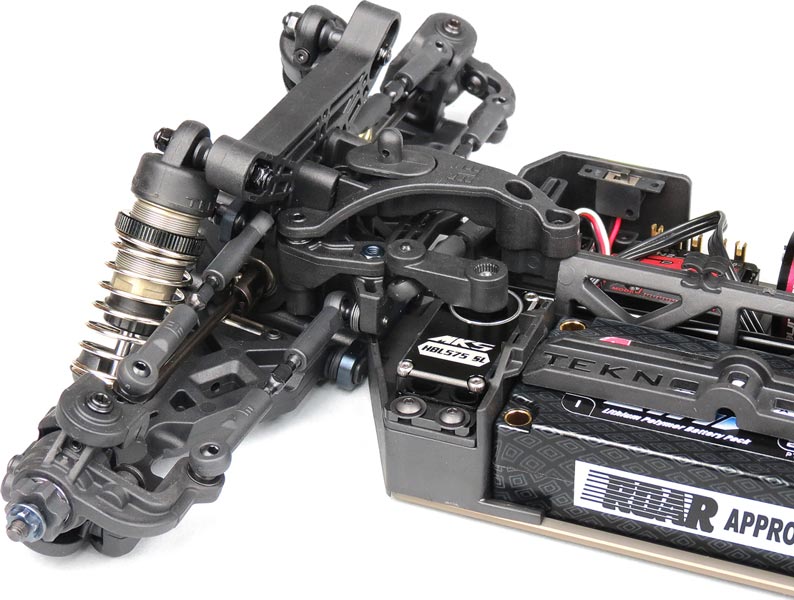

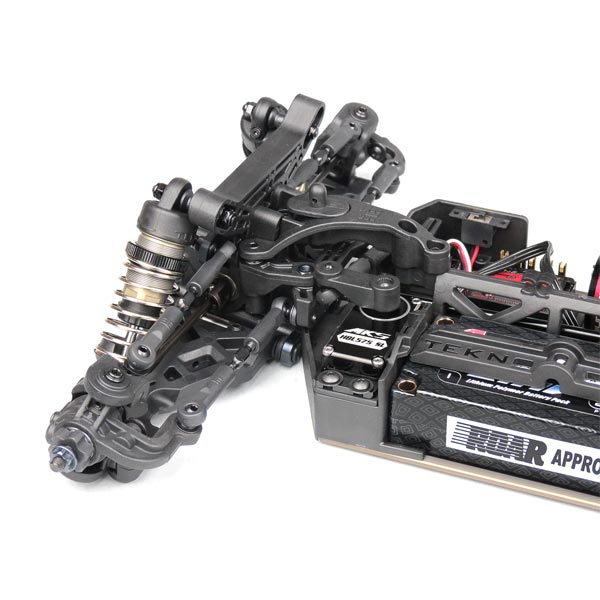

Steering: Reverse bellcrank for smoother response and more
consistency through turns

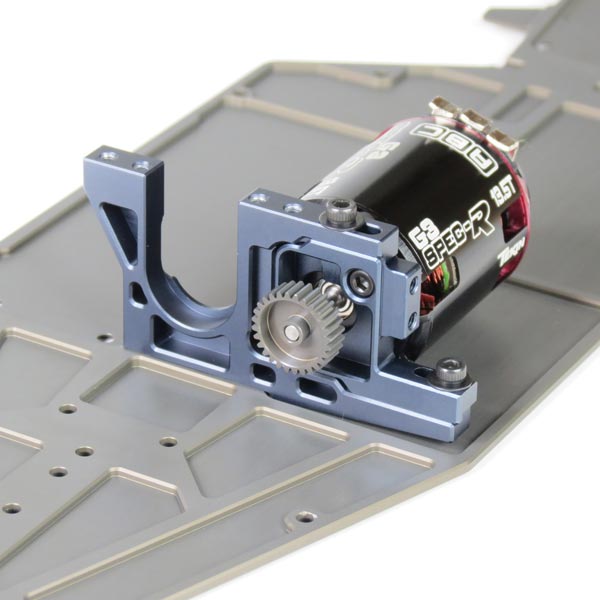

Motor Mount: Two-piece, low center of gravity design
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to
the chassis
Camber: Adjustable front and rear, camber refers to the angle of the
tops of the tires from vertical when viewed from front or behind
vehicle
Ackerman: Adjustable, Ackerman describes the effect of the inside
front wheel turning faster than the outside front wheel during
turns

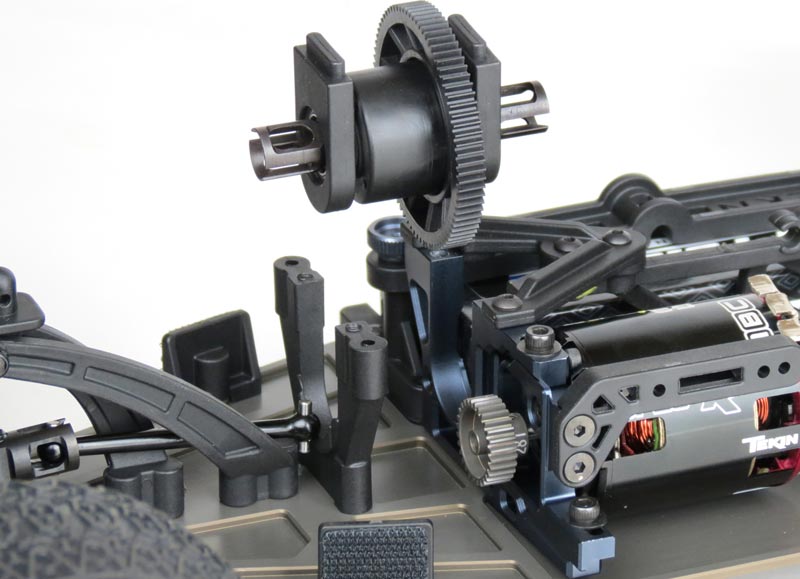

Spur Gear: Composite plastic 81 Tooth, 48 pitch

INCLUDES: EB410 Competition Buggy Kit, Clear Body, Decals, Shock and Diff Oil,
Spur Gear and Instruction Manual

REQUIRES: Radio: 2-channel
Steering Servo: Low profile or standard size high torque servo with
at least 150 oz/in of torque
Motor and ESC: 1/10 scale buggy
Battery: 7.4V 2S LiPo shorty configuration
Battery Charger: Compatible with selected battery
Wheels and Tires: 1/10 scale 4x4 buggy
Pinion Gear: 48P, 15-30 teeth
LiPo Charging Bag, Tire Glue, Paint, Tools, Building and Track
Equipment

SPECS: Body;
Length: 10.9" (278mm)
Width: 4.8" (123mm)
Height: 3" (76.2mm)
Thickness: 0.03" (0.8mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 4x7x2.5mm Steering 2 DTXC1507

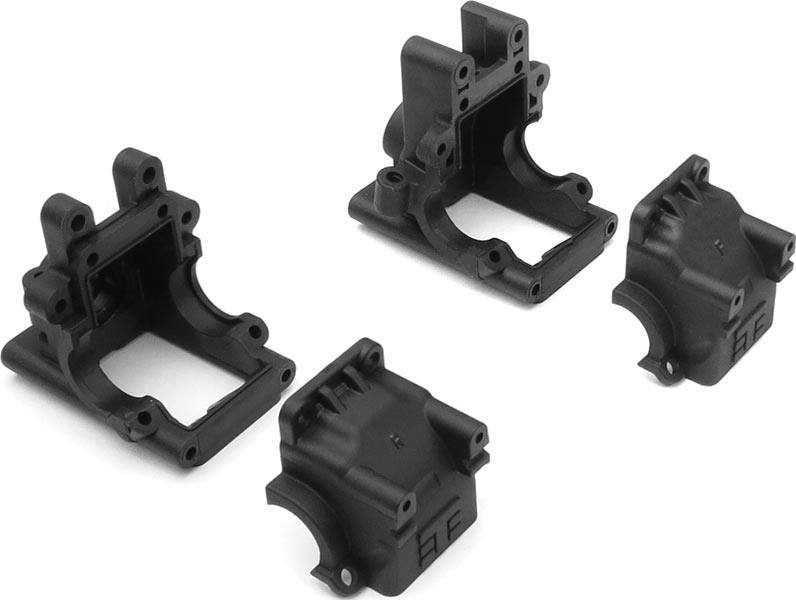

2 5x11x4mm Front Bulkhead 1 DTXC1547
2 10x15x4mm Front Bulkhead 1 DTXC1595
2 5x11x4mm Rear Bulkhead 1 DTXC1547
2 10x15x4mm Rear Bulkhead 1 DTXC1595
2 10x15x4mm Front Hubs 1 DTXC1595
2 6x12x4mm Front Hubs 1 DTXC1569
2 10x15x4mm Rear Hubs 1 DTXC1595
2 6x12x4mm Rear Hubs 1 DTXC1569
2 10x15x4mm Ctr Diff Assembly 1 DTXC1595
