Home » Product Info »
TDR102037

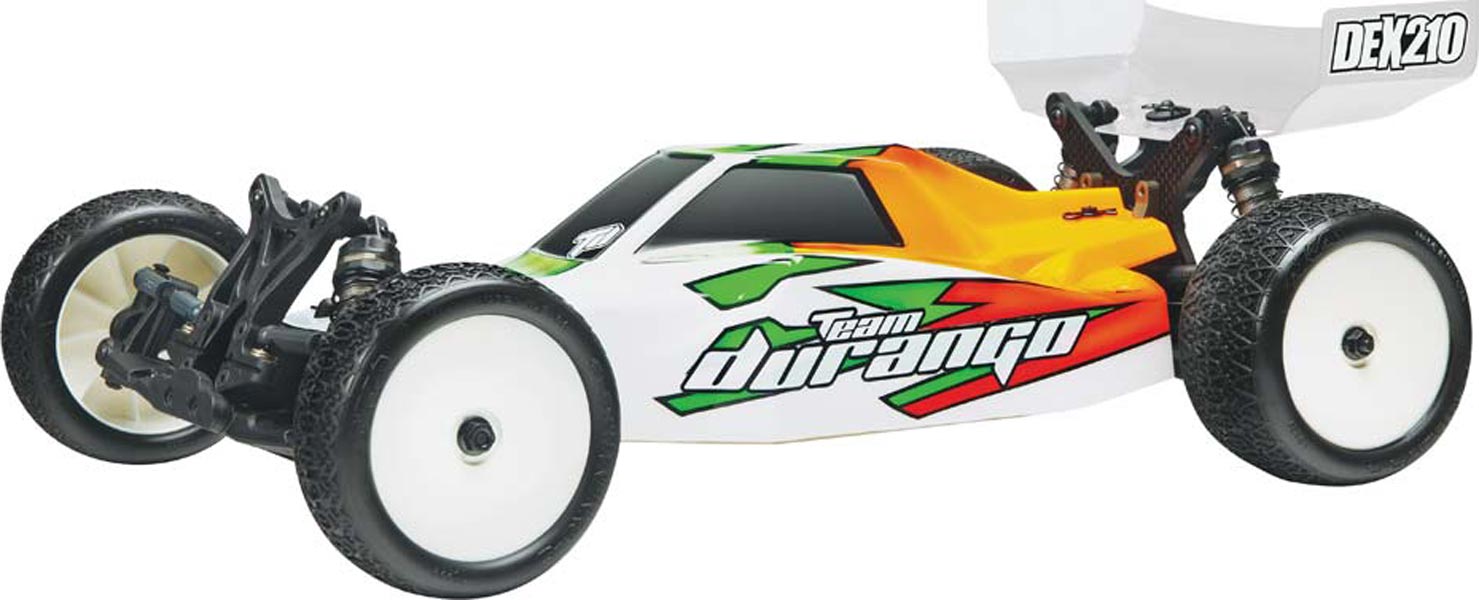

1/10 TD102037 DEX210F Electric 2WD Off-Road Buggy

Product Info | Replacement Parts | Optional Items
TEAM DURANGO

TDR102037
1/10 TD102037 DEX210F Electric 2WD Off-Road Buggy
By TEAM DURANGO
$399.49 CAD    539.99
Save $140.50 (26%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Buggy Kits
But only from... TEAM DURANGO
All items from... TEAM DURANGO

Special Blue Dot Clearance

Please note: This item is currently in our Blue Dot Clearance Sale and the special price shown is only valid for the quantity available in any given location, on a first come first serve basis. Returns are not accepted. Back orders will not be accepted at clearance pricing. The quantity shown is approximate only as it does not reflect any quantities that may be in process with other customer orders. We apologize to those customers who may miss out and thank you for your understanding.

 Inventory Status Legend
StockStock availability for on-line ordering
2
$399.49
Warehouse ?
StockStock availability for pick up
2
$399.49
Warehouse ?
0
$399.49
Store - Charlottetown ?
0
$399.49
Store - Edmonton ?
0
$399.49
Store - Mississauga ?
0
$399.49
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Alum Spacer 8x3x3mm (10) DEX410
$10.49

Big Bore Shock Springs 65mm Lt Green 29gf/mm (2
$5.59

Button Head Hex Screw M2.5x4mm (10pcs) (DEX210)
$2.02

Ball Bearing (4) (5x10x4mm) DEX410 DEX410R DESC
$10.49
Diff Gear 14t (2) DEX410 DEX410R DESC410R
$5.59

Distance Shim Steering Plate (10) DEX410 DEX410
$2.02

Driveshaft Pin A-Type 2.0mm (10) DESC410R
$5.59

Wheel Cone Rear DEX410
$3.14
SPECIFICATIONS
400 mm
Length:
250 mm
Width:
71 mm
Height:
3.5 lbs
Weight:
285-289 mm
Wheelbase:
Rear Wheel Drive
Drivetrain:
2+ channel
Radio Requirements:
540 size
Motor Requirements (brushless):
To suit selected motor
ESC Requirements:
2s lipo, saddle or shorty form factor
Battery Requirements:

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
                This is the Radio Controlled, Electric Powered
1/10 scale DEX210F Off-Road Buggy Kit from Team Durango.

FEATURES: Chassis: Constructed of 6061-T6 aluminum, 0.098" (2.5mm) thick
configured to allow the use of saddle or shorty battery packs
Drive: Rear wheel, CVD Multi-Axle rear driveshafts with different
mounting positions to increase or decrease on-power mid corner
steering response
Differential: Machined diff ring gear, lightweight cross-shafts and
planetary gears
Motor Mount: Aluminum, adjustable with two screws for easy servicing
Shocks: Aluminum body oil-filled Big Bore
Front Shock Tower: Composite plastic
Rear Shock Tower: Carbon fiber, 0.16" (4mm) thick
Rear Bulkhead: CNC machined 7075-T6 aluminium
Body: Molded polycarbonate plastic with specially designed rear fin
that provides increased straight line stability and predictable
jump handling
Wheel Hexes: 12mm and 14mm units for easy switching between industry
formats, O-ring secured hex drive pin on 12mm fittings prevents the
loss of drive pins
Geometry: Adjustable wheelbase, anti-squat and droop settings
Ball Bearings: Full set included
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis, 7075-T6 aluminium rear toe angle inserts
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

INCLUDES: DEX210F Off-Road Buggy Kit with Shocks, Body w/Rear Fin, Decals
Hook and Loop Battery Straps and Instruction Manual

REQUIRES: Radio: 2-channel with high-torque steering servo
Motor: Brushless 540 size, 17.5T stock - 6.5T modified
Pinion Gear: Number of teeth to be determined by motor & gearing
requirements
Battery: 2S 7.4V LiPo. Saddle or shorty pack
Battery Charger: Compatible with selected battery
Tires: 1/10 scale buggy with foam inserts
Wheels: 1/10 scale buggy 12 and/or 14mm hex fit
Charging bag, building and track equipment, silicone shock and diff
oil

SPECS: Vehicle-
Length: 15.8" (400mm)
Width: 9.8" (250mm)
Wheelbase: 11.2 - 11.4" (285 - 289mm)
Racing Weight: 3.5lbs (1.6kg) approximate, depending on electrical
items installed
Internal Gear Ratio: 2.47:1
Body-
Length: 12.6" (320mm)
Width: 5.1" (129mm)
Height: 2.8" (71mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x10mm Gearbox 1 TDRC1286
2 10x15mm Diff 1 TDRC1340
2 10x15mm Spur Gear 1 TDRC1340
4 5x10mm U Joints 2 TDRC1286
1 10x15mm Diff 1 TDRC1340
1 10x15mm Diff Ring Gear 1 TDRC1340
4 5x10mm Fr Hubs 2 TDRC1286
2 10x15mm Rear Hubs 1 TDRC1340
2 5x13mm Rear Hubs 1 TDRC1290
4 3x7mm Steering 2 DTXC1506
