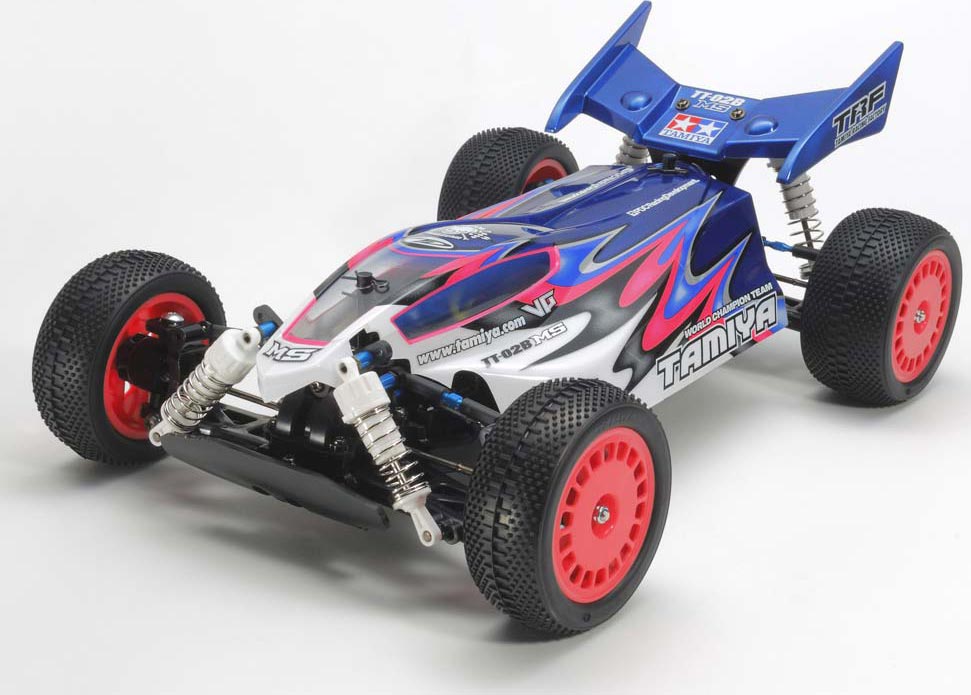

         This is the Radio Controlled, Electric Powered, 1/10 scale,
TT-02B MS Limited Buggy Kit.

FEATURES: Chassis: Plastic, TT-02B-uses TT-02 chassis as a base and adds
longer suspension arms, CVA shocks, and buggy bumpers
Drive: Four wheel shaft drive with plastic dogbones
Differential: Gear type
Suspension: Fully independent double wishbone
Shocks: Oil filled plastic body, CVA
Shock Towers: Fiber reinforced plastic
Wheels: Plastic dish type 2.04" (52mm) diameter, front width
1.1" (29mm), rear width 1.4" (35mm) flourescent pink in color
Steering: Bellcrank type
Bumper: Front plastic
Body: Clear untrimmed polycarbonate
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, front only caster/toe-in refers to the angle of
the front suspension when viewed from the side of the car in
relation to the chassis

INCLUDES: TT-02B Buggy Chassis with clear Body, Wheels, Decals, and
Instruction Manual

REQUIRES: Radio: 2-channel with steering servo
Battery: 7.2V stick pack with standard connector
Battery Charger: For selected battery pack
Motor: 540 size
ESC: Compatible with selected motor
Tires 3.2" (82mm) outer diameter
Polycarbonate safe spray or brush-on paint
Track and maintenance equipment

SPECS: Vehicle
Length: 15" (380mm)
Wheelbase: 10.5" (266mm)
Body
Length: 10.5" (267mm)
Width: 5.7" (144mm)
Height: 3" (76mm)

COMMENTS: For replacement, Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Drive Shaft 1 DTXC1547
2 5x11mm Fr Uprights 1 DTXC1547
2 5x11mm Rear Uprights 1 DTXC1547
