TB Evo.6 Chassis Kit Black Version

Product Info

TB Evo.6 Chassis Kit Black Version
$714.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA
All items from... TAMIYA

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.

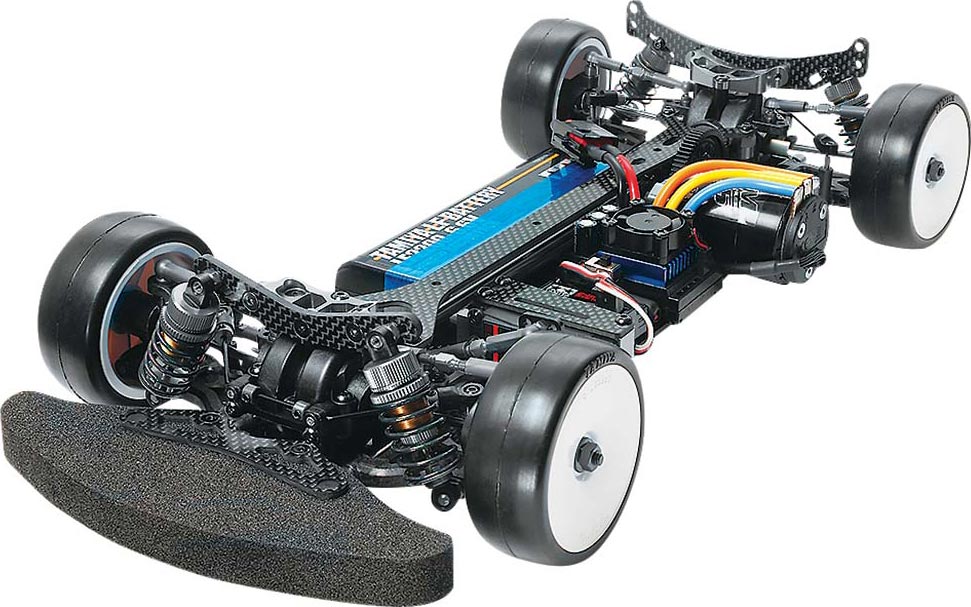

          This is the 1/10 scale Electric Powered, Radio Controlled
Tamiya TB EVO.6 Black Version Chassis Kit.

FEATURES: Chassis: Double deck carbon fiber, 0.08" (2mm) thick upper,
0.089" (2.25mm) lower deck, asymmetrical layout for greater
cornering flexibility, steering servo placement optimizes left/
right roll characteristics
Drive: Four wheel aluminum shaft driven, front direct spool drive and
rear oil-filled gear differential setup, aluminum gear mount
Motor Mount: One-piece, horizontally positioned for highest
drivetrain efficiency and control
Shocks: Short touring car, oil-filled Big Bore
Shock Towers: Carbon fiber
Suspension: Fully independent double wishbone, TRF418 arms & aluminum
Ball Bearings: Full set
Bumper: Front foam
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, front and rear caster/toe-in refers to the angle
of the suspension when viewed from the side of the car in relation
to the chassis
Steering: Bell crank type with high-torque servo saver, newly
designed arms help to reduce speed loss when cornering and boost
steering response

INCLUDES: Tamiya TB EVO.6 Black Version Chassis Kit with Shocks, Front
Bumper, Decals and Instructions

REQUIRES: Radio: 2-channel
Steering Servo: High-speed
Motor: 1/10 scale on-road racing, brushless recommended
ESC: Compatible with selected motor
Battery: 7.4V 2S LiPo recommended
(when using the ESC recommended for this vehicle, a Dean's Male
Ultra Plug must be soldered to the battery leads of the ESC to
connect to the recommended battery)
Battery Charger: Compatible with selected battery
Wheels: 24mm, 0 offset
Tires: 24mm medium narrow
Pinion Gear: 06 module, 20-30T
Body: Tamiya TB-04, TA-05, and TA-06 bodies will fit
Paint, building & track equipment

SPECS: Length: 14.6" (370mm)
Width: 7.3" (185mm)
Wheelbase: 10.1" (257mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x8mm flanged Spur Gear 1 DTXC1527
2 10x15mm Differential 1 DTXC1595
2 5x8mm Differential 1 DTXC1523
2 5x10mm Rear Gearbox 1 DTXC1535
2 10x15mm Direct Drive Unit 1 DTXC1595
2 5x10mm Front Gearbox 1 DTXC1535
4 5x10mm Rear Uprights 2 DTXC1535
4 5x10mm Front Uprights 2 DTXC1535
