TAM84389

Fighting Buggy 2014

Product Info | Replacement Parts
RESOURCES

Replacement Parts (6)
TAMIYA

TAM84389
Fighting Buggy 2014
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Buggy Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$344.24
Warehouse ?
Stock availability for pick up
0
$344.24
Warehouse ?
0
$344.24
Store - Charlottetown ?
0
$344.24
Store - Edmonton ?
0
$344.24
Store - Mississauga ?
0
$344.24
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.

VIDEO



PRODUCT RESOURCES
VENDOR TECHNOTES

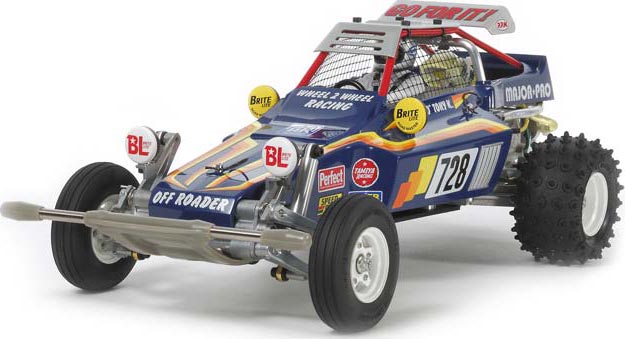

          This is the Electric Powered, Radio Controlled. 1/10 scale
Fighting Buggy 2014 from Tamiya.

FEATURES: Chassis: FRP (fiber reinforced plastic) 0.098" (2.5mm) thick
Drive: Rear wheel with gear case and direct drive setup
Gear Case: Die cast with transparent plastic cover
Motor: 540 brushed
Body: ABS resin with aluminum roof panel and wing
Steering: Bell crank type
Suspension: Front, independent, double trailing arm, die cast front
rear suspension arms, rear, free floating progressive damping
(FFPDS) with transverse shock and progressive spring
Shock: One rear, aluminum body with separate oil reserve tank
Wheels: Three-piece
Tires: Ribbed front, rear spike
Front Bumper: Reinforced resin with integrated metal bar
Camber: Non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis

INCLUDES: Fighting Buggy 2014 with Body, Shocks, Brushed Motor, Tires, Wheels
06 Module 15T Pinion Gear and Instruction Manual

REQUIRES: Radio: 2-channel
Battery: 7.2V stick pack
Battery Charger: To match selected battery
Paint: Tamiya TS plastic model paint recommended
Building and track equipment

SPECS: Vehicle;
Length: 16.3" (415mm)
Width: 8.7" (220mm)
Height: 6.1" (155mm)
Body;
Length: 14.4" (366mm)
Width: 5.9" (149mm)
Height: 4.2" (108mm)

COMMENTS: To replace or upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
6 5x11mm Transmission 3 DTXC1547
2 5x11mm Rear Shaft 1 DTXC1547

To paint model to match picture on box, order the following Tamiya
colors; TS-15 Blue, TAMR5015
X-2 White, TAMR1502
X-7 Red, TAMR1507
X-8 Lemon Yellow, TAMR1508
X-11 Chrome Silver, TAMR1511
XF-1 Flat Black, TAMR1701
XF-15 Flat Flesh, TAMR1715

jxs 08/15/14
ir/jxs
4950344843893 4950344843893
TAMC4391
