FEATURES

In celebration of the return of the Honda NSX in to the 2014 Japanese Super GT racing series, Tamiya brings back a classic release with this Limited Edition Honda NSX sports car kit. The re-release kit's body is mounted on a plastic bathtub chassis which incorporates a direct-drive drivetrain, mono-shock T-plate rear suspension and king pin coil spring front suspension.

  • Length: 452mm, Width: 207mm, Height: 119mm
  • The durable bathtub-shape chassis incorporates space frames.
  • Suspension features a front independent kingpin/coil spring and a rear 3-point setup with 1.5mm thick FRP T-bar and CVA oil damper.
  • High-grip sponge tires included.
  • Sport-tuned motor included.

Requires:

  • 2-channel radio gear & electronic speed control
  • 7.2 battery & charger
  • Polycarbonate paint
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

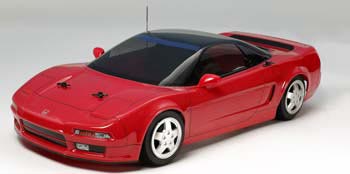

          This is the Electric Powered, Radio Controlled, 1/10 scale
Honda NSX Race Car from Tamiya.

FEATURES: Chassis: Plastic bathtub
Drive: Rear wheel
Motor: Tamiya Sport Tuned 540 size brushed
Shocks: Oil filled, plastic body
Suspension: Front, kingpin coil spring, rear, mono-shock T-plate
Tires: High-grip sponge rubber Front- 1.2" (30mm) wide, 2.4" (60mm)
outer diameter, Rear 1.7" (43mm) wide, 2.5" (63.5mm) outer diameter
Wheels: Black and silver plastic, three-piece
Body: Clear polycarbonate
Spur Gear: 70T plastic
Pinion Gear: 14T metal
Steering: Direct servo
Camber: Non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis

INCLUDES: Honda NSX Race Car kit with Clear Body, Wheels, Tires, Decals, Motor,
and Instruction Manual

REQUIRES: Radio: 2-channel with high-speed steering servo
Electronic Speed Control: To match supplied motor
Battery: 7.2V stick pack
Battery Charger: To match selected battery
BUilding and track equipment

SPECS: Vehicle-
Length: 17.8" (452mm)
Width: 8.1" (207mm)
Height: 4.7" (119mm)
Body-
Length: 17.5" (444mm)
Width: 7.9" (200mm)
Height: 4" (102mm)

COMMENTS: To paint body to match the picture on box, order the following
Tamiya colors;
PS-1 White, TAMR8601 PS-6 Yellow, TAMR8606
PS-2 Red, TAMR8602 PS-12 Silver, TAMR8612
PS-5 Black, TAMR8605

For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 6x12mm Rear Axle 1 DTXC1569
2 8x12mm Spur Gear 1 DTXC1581
4 5x11mm Front Hubs 2 DTXC1547
