TAM84384

XB RC RTR The Hornet Black Metallic

Product Info | Required Items | Replacement Parts
TAMIYA

TAM84384
XB RC RTR The Hornet Black Metallic
By TAMIYA
Discontinued
No Picture Available

More like this... ARR R/C Electric 2WD Buggy
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$270.29
Warehouse ?
StockStock availability for pick up
0
$270.29
Warehouse ?
0
$270.29
Store - Charlottetown ?
0
$270.29
Store - Edmonton ?
0
$270.29
Store - Mississauga ?
0
$270.29
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

3mm Grub Screw 44002
$5.99

Body Pin Set
$4.99

2mm E-Ring 44002
$3.49
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

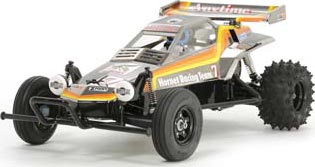

This is the 2.4GHz radio controlled, electric powered, 1/10 scale Ready-to-Run
XB Expert Built Pro Tamiya Hornet Off Road Racer.
with Limited Edition Body with Black Metallic Finish.

FEATURES: Chassis: Molded from A.B.S. resin, bathtub style, plastic side
bumpers
Drive: Rear wheel drive
Body: Molded and pretrimmed polycarbonate with limited edition black
metallic finish to commemorate the release of the original
Electronic Speed Control: Tamiya TBLE-02S, set for use with
included brushed motor, may also be used with the Tamiya brushless
motor 01 sensored series
Radio: Tamiya Finespec 2.4GHz
Motor: Mabuchi RS540SH (bushing/sealed endbell)
Plastic bushings
Shocks: Plastic body coil-over friction (not oil-filled)
Gearbox: Sealed rear gearbox
Differentials: Bevel gear
Transmission: Single speed
Tires: 1.4" spiked on the rear and 1.4" ribbed on the front
Wheels: 5-spoke, 3-piece black plastic wheels
Bumpers: Large black plastic tube type front bumper
Suspension: Independent front A-arm and rear rolling rigid axle
Camber Tie Rods: Fixed non-adjustable
Steering Tie Rods: Adjustable
Steering: Two steering rods attach to the servo saver and knuckle arm
servo saver included

INCLUDES: RTR Hornet with rear oil-filled shocks, 540 motor, ESC, metallic
finish body, tires, 3-piece wheels, 19 tooth 32 pitch pinion gear,
50 tooth counter gear, decal sheet and instruction manual
_
REQUIRES: Transmitter Batteries: Four AA size
Battery: 6-cell stick pack w/standard connector (7-cell won't fit)
Charger: AC/DC Timed or Peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 15.74" (400mm)
Width: 9.05" (230mm)
Height: 5.90" (150mm)
Weight: 1.92lbs (874g)(approx.)
Tires- Front: 1.4" ID - 2.85" OD - .80" wide
Rear: 1.4" ID - 3.75" OD - 1.75" wide
BODY-
Length: 13" (330mm)
Width: 5.5" (139mm) at rear wheels (widest point)
2.25" (57mm) behind from wheels (thinnest point)
Height: 2.8" (72mm)

COMMENTS: To upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set Qty.
1 5x8mm Counter Gear 1 DTXC1523
5 5x11mm Gearbox 3 DTXC1547
4 5x11mm Front Wheels 2 DTXC1547

jxs 09/17/14
ir/jxs
