FEATURES

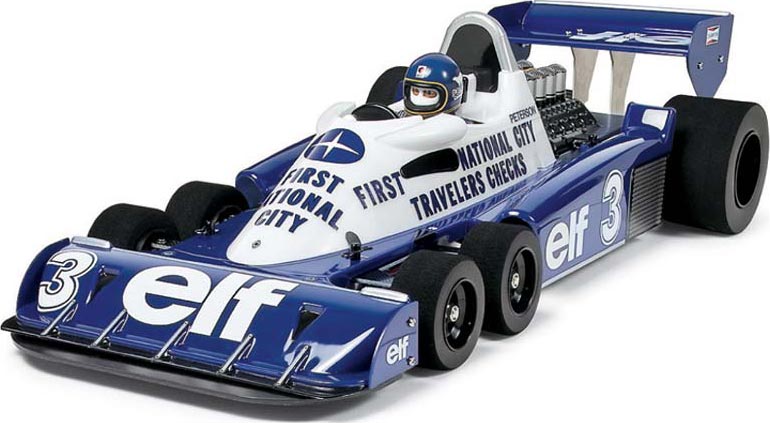

 The Tyrrell P34, the only 6-wheeled F1 race car ever to compete in the history of F1, caused a lot of fanfare and controversy when it was introduced in 1976. This is a 1/10 R/C assembly kit model of the Tyrrell P34 which raced at the 1977 Monaco GP, which had a different rear wing and engine cover than the car which raced at the Japanese GP.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
           This is the Electric Powered, Radio Controlled 1/10 Scale
Tyrrell P34 1977 Monaco GP Six Wheel Race Car Kit from Tamiya.

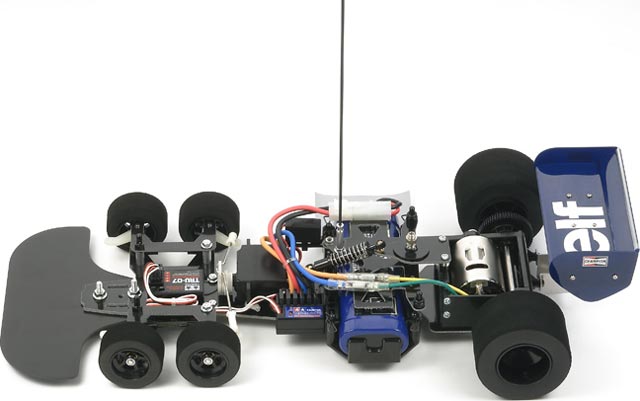

FEATURES: Chassis: Lightweight FRP construction, semi double deck configuration
0.06" (1.5mm) thick upper deck, 0.10" (2.5mm) thick lower deck
Drive: Direct 2WD
Motor: 540-J brushed
Differential: Ball type
Suspension: Front, independent kingpin coil spring, Rear, rigid
with FRP T-bar, friction plate and coil spring friction shock
Body: Polycarbonate with inner tray, driver torso with white plastic
driver figure
Bumper: Front plastic blade style
Spur Gear: 63T plastic
Pinion Gear: 14T metal
Tires: High-grip sponge, Front, 1.6" (41.5mm) diameter 0.83" (21mm)
wide, Rear, 2.4" (61mm) diameter, 1.7" (44mm) wide
Wheels: Black plastic, Front 1.1" (27mm) diameter, 0.85" (21.8mm)
wide, Rear 1.4" (36mm) diameter, 1.8" (45mm) wide

INCLUDES: Tyrrell P34 Six Wheel Race Car Kit, four Front Wheels, Sponge Tires,
Decals, Motor, Clear Body and Instructions

REQUIRES: Radio: 2 channel with high speed steering servo
ESC: For brushed motors
Battery: 6-cell 7.2V stick
Battery Charger: To match selected battery
Building and track equipment

SPECS: Vehicle-
Length: 17" (430mm)
Width: 8" (204mm)
Height: 4.2" (108mm)
Weight: 1.87lbs (815g)
Body-
Length: 13.9" (354mm)
Width: 6.2" (158mm)
Height: 3.4" (86mm)

COMMENTS: To paint body to match drawings on box, order the following Tamiya
paints;
PS-1 White PS-5 Black, TAMR8605
PS-4 Blue, TAMR8604 PS-12 Silver, TAMR8612

For Replacement or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 6x12mm Rear Shaft 1 DTXC1569
8 5x8mm Front Wheels 4 DTXC1523
2 8x10mm Diff Housing 1 DTXC1581
