TAM84237

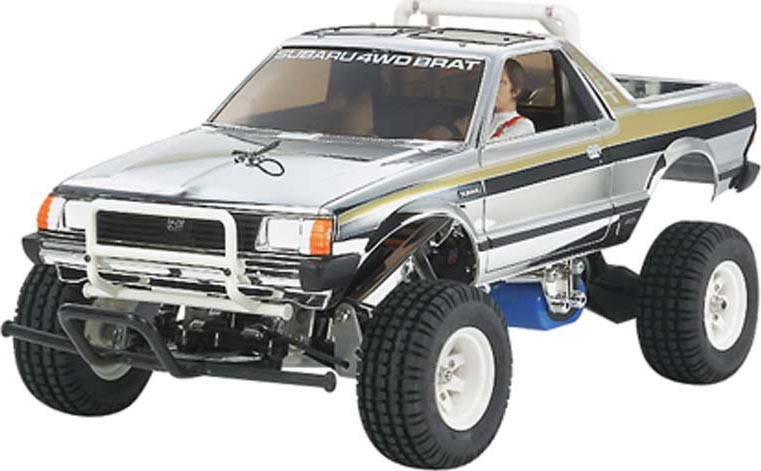

1/10 Subaru Brat Metallic Special Ltd Edition

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM84237
1/10 Subaru Brat Metallic Special Ltd Edition
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric Monster Truck Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$254.14
Warehouse ?
StockStock availability for pick up
0
$254.14
Warehouse ?
0
$254.14
Store - Charlottetown ?
0
$254.14
Store - Edmonton ?
0
$254.14
Store - Mississauga ?
0
$254.14
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

3mm Grub Screw 44002
$5.99

Body Pin Set
$4.99

1150 Sealed Ball Bearing Set (2)
$19.99
Low Friction Damper V Parts
$7.99

540 Johnson Motor
$28.99

Universal Shaft Frog
$61.99

2mm E-Ring 44002
$3.49
FEATURES

 The full size Subaru Brat pick-up truck was designed for export to overseas car markets such as the United States and Australia and it enjoyed great popularity during late-1970s. The first release of the R/C model was in 1983 and followed with an updated re-release version in 2007. It is now available again as a limited edition chrome-plated special for a limited time.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
          This is the electric powered, radio controlled, 1/10 scale
Subaru Brat Off-Road Pickup Truck Kit.

FEATURES: Chassis: ABS resin space frame
Drive: Rear wheel
Motor: RS-540SH brushed
ESC: Tamiya TEU-104BK with reverse
Bodies: One clear untrimmed polycarbonate and one trimmed resin with
metallic finish
Suspension: Front, inboard spring type double wishbone
Rear, trailing arm with oil dampers
Shocks: Rear, oil filled
Bumper: Front resin
Tires: All terrain
Wheels: White plastic, three piece
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Non-adjustable

INCLUDES: Subaru Brat Off-Road Pickup Truck Kit, 540 Motor, ESC, clear
untrimmed Body, trimmed resin Body, Decal Sheet, Wheels, Tires
16, 18 & 19 tooth Pinion Gears, 49, 50 & 52 tooth Spur Gears
Tinted Windows and Instruction Manual

REQUIRES: Radio: 2-channel with steering servo
Battery: 6-cell stick with Standard connector
Battery Charger: Compatible with selected battery
Building and track equipment

SPECS: Vehicle-
Length: 17.8" (453mm)
Width: 8.7" (220mm)
Height: 6.9" (175mm)
Weight: 4.06lbs (1840g) with resin body
Bodies-
Length: 15.3" (389mm)
Width: 6.8" (173mm)
Height: 4" (103mm)

COMMENTS: To paint clear body to match photos on the box, order the following
colors;
X-2 White, TAMR1502 X-18 Semi Gloss Black, TAMR1518
X-6 Orange, TAMR1506 XF-15 Flat Flesh, TAMR1715
X-7 Red, TAMR1507 PS-12 Silver, TAMR8612
X-11 Chrome Silver, TAMR1511 PS-5 Black, TAMR8605

For Replacement or to Upgrade To Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11m Spur Gear 1 DTXC1547
4 5x11mm Rear Wheels 2 DTXC1547
4 5x11mm Front Wheels 2 DTXC1547

jxs 11/08/11
ir/jxs
4950344842377 4950344842377
TAMC4237
