FEATURES

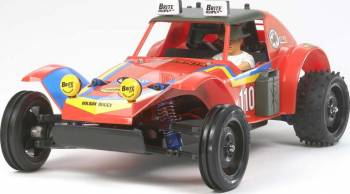

 Red version of the previously released Blue Holiday buggy kit.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
          This is the radio controlled, electric powered 1/10 scale
Off-Road Holiday Buggy (2010) Kit from Tamiya.
Limited red edition, includes red body and black wheels.

FEATURES: Chassis: DT-02 plastic bathtub type with longitudinal battery
layout for lower center of gravity, semi-finished driver figure
Drive: Rear wheel
Motor: 380 size brushed with preinstalled 17 tooth pinion gear
(540 size will fit, see COMMENTS)
Differential: Three bevel gears
Gearbox: Sealed
Electronic Speed Control: Tamiya TEU-104BK with reverse
Body: Molded from shock resistant PE plastic (cannot be painted)
Suspension: Four wheel independent, double wishbone
Shocks: Plastic body friction, not oil filled
Tires: Rear, spike design installed on black plastic wheels
Front, straight rib pattern installed on black plastic wheels
Caster/Toe-In: Adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering: Bellcrank with servo saver

INCLUDES: Off-Road Holiday Buggy (2010) Kit with Body, Decals, Driver Figure,
ESC, Motor, Wheels, Tires, eight 5x11mm Ball Bearings and
Instructions

REQUIRES: Radio: 2-channel with standard steering servo
AA Batteries: Eight for transmitter
Battery: 7.2V 6-cell stick pack with Standard connector
Battery Charger: Peak type recommended
Building and track equipment

Vehicle;
SPECS: Length: 15.3" (390mm)
Width: 9.4" (240mm)
Height: 6.4" (164mm)
Weight: 2.7lbs (1250g)
Body;
Length: 15" (381mm)
Width: 7.1" (181mm)
Height: 4.3" (110mm)

COMMENTS: When installing a 540 size motor, the following parts are required
and must be purchased separately;
#3515005 17 Tooth Pinion Gear (not carried)
3mm Grub Screw (TAMC5076)
Motor Plate

For Replacement or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Gearbox 1 DTXC1547
2 5x11mm Counter Gear 1 DTXC1547
2 5x11mm Rear Axles 1 DTXC1547
2 5x11mm Front Axles 1 DTXC1547
