4-Spd High Power Gearbox H.E.
Released in 1985, the Type 260 motors have been used in a variety of educational and robotics applications. Offered as part of the Tamiya Educational Construction Series gearboxes, the 4-speed High power gearbox H.E can be assembled with high and low gear ratios. These gearboxes are seen at Robotics contests around the world.

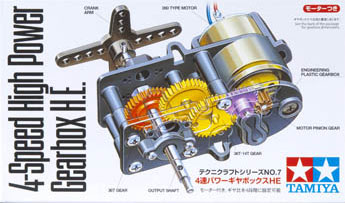

This is a 4-Speed High Power Gearbox H.E. Assembly Kit from Tamiya. FEATURES: Gearbox features four gear ratios (39.6:1, 47.6:1, 61.7:1, 74:1) Gear ratio can be easily adjusted by changing the motor pinion (10T, 12T), spur gear position, and altering the middle and final gear attachment position 4mm dia. threaded driveshaft included Gearbox is compatible with other Education Construction items Type 260 motor included - RPM: 5040-6300, Voltage: 1.5V Recommended Separately available 130 and 140 motors can also be attached with the included adapter Two 12mm hex wheel hubs included H.E. denotes High Efficiency Pictorial instructions included INCLUDES: One 4-Speed High Power Gearbox H.E. REQUIRES: Assembly Medium phillips screwdriver Modeling knife (RMXR6909) Sprue cutters (HCAR0630) Long nose pliers (DTXR0300) SPECS: Length: 2.71" (69mm) Width: 1.25" (32mm) Height: 1.1" (28mm) COMMENTS: Keep out of reach of small children. Contains small parts. tlh 3/9/10
