High Speed Gear Box HE
click to enlarge

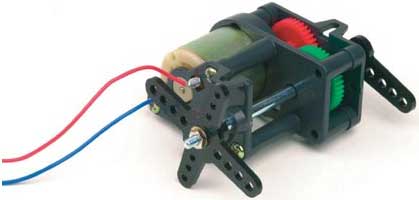

The High Speed Gear Box, High Efficiency, is perfect for high speed applications. Two gear ratios are possible, and several styles of crank arms are supplied for a variety of uses. A RE-260 motor is included. The gear box can be mounted vertically or horizontally.
This is a High Efficiency High Speed Gear Box Assembly Kit from the Technicraft Series by Tamiya. FEATURES: Versatile and easy to construct gear box broadens the world of handicrafts. Allows 2 gear ratios, 11.6:1 and 18:1 to be selected. Polyacetal resin gears permit efficient power transmission with less mechanical noise than metal gears. Accepts 140 or 260 type motors. Included motor operates on 3-4.5V. Pictorial instruction sheet included. INCLUDES: One Technicraft High Efficiency High Speed Gear Box Assembly Kit. REQUIRES: Assembly Phillips Screwdriver Side Cutter Pliers Hobby Knife Adult Supervision COMMENTS: Keep away from children under 3 years of age due to choking hazard. sdw 4/25/01 ir/jl
