1/10 Citroen 2CV Charleston M-05
click to enlarge

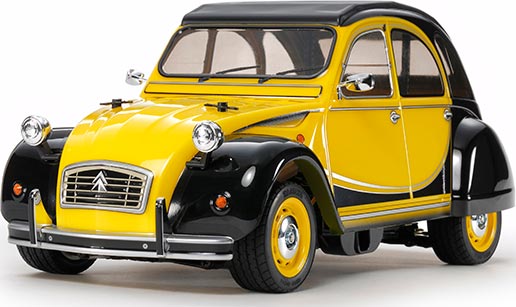

This radio control model faithfully recreates the world-renowned Citroën 2CV Charleston. The polycarbonate body sits on top of Tamiya’s fun to drive M-05 front wheel drive chassis.
Over 3.5 million cars were produced from 1948 to 1990. Its reliable air-cooled 2-cylinder engine got the little front wheel drive car from A to B with little fuss, and the car could accommodate 4 adults adequately. With its soft suspension designed for off-road driving, it is said that the 2CV could traverse a ploughed field without breaking any of the eggs it carried.
M-05 at a glance:
The front wheel drive M-05 chassis features a lightweight, narrow, durable, and easy-assembly semi-monocoque resin frame. Gearbox, motor, battery pack, receiver, servo and ESC are positioned for optimum weight distribution and a low center of gravity. Ground-hugging 4-wheel independent double wishbone suspension and the 3-piece steering linkage provide stable high-speed cornering. Gun metal color 11-spoke wheels are matched with tread-patterned radial tires and feature tire inserts.
**Additional Technical Info Will Be Added When It Becomes Available.** This is the radio controlled, electric powered, 1/10 scale Citroen 2CV Charleston kit with the M-05 Chassis from Tamiya. FEATURES: Chassis: M-05L resin semi-monocoque design, composite construction Drive: Front wheel Shocks: Plastic body friction type Shock Towers: Composite construction Motor: 540 size Electronic Speed Control: Gearbox: Sealed, integral with chassis Transmission: Single speed, ball bearing equipped Differential: Three bevel gear Body: Clear untrimmed polycarbonate Suspension: Four wheel independent double wishbone Tires: Treaded 60D radial 0.98" (25mm) wide, 2.3" (59mm) diameter with foam inserts Wheels: 11 spoke plastic 0.94" (24mm) wide, 1.5" (38mm) diameter Camber: Non-adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis Steering: Three piece tie-rod linkage INCLUDES: M-05L chassis, tires, wheels, foam inserts, Citroen 2CV body, decals, 20 tooth pinion gear, shocks, ESC, motor and instruction manual REQUIRES: Radio: 2-channel AA Batteries: 8 for transmitter Battery: 6-cell stick with standard connector Battery Charger: Peak type recommended Building and track equipment SPECS: Vehicle; Length: 15.1" (383mm) Width: 6.7" (170mm) Height: 5.6" (142mm) Wheelbase: 9.4" (239mm) Tread: 5.4" (138mm) center of wheels, side-to-side Body; Length: Width: Height: COMMENTS: For Replacement or to Upgrade To Ball Bearings use: Qty. Size Location Qty. Bearing Set 1 5x8mm Counter Gear 1 DTXC1523 1 5x11mm Counter Gear 1 DTXC1547 1 5x8mm Spur Gear 1 DTXC1523 1 5x11mm Spur Gear 1 DTXC1547 2 5x11mm Output Shaft 1 DTXC1547 2 5x11mm Front Axles 1 DTXC1547 2 5x10mm Rear Axles 1 DTXC1535 jxs 03/16/18
