TAM58627

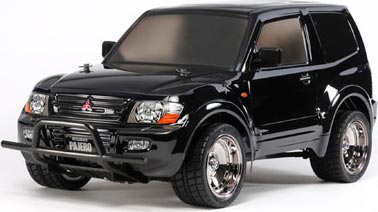

Mitsubishi Pajero Black Painted Body

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (11)
Optional Items (11)
TAMIYA

TAM58627
Mitsubishi Pajero Black Painted Body
By TAMIYA
$248.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Monster Truck Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$248.99
Warehouse ?
Stock availability for pick up
0
$248.99
Warehouse ?
0
$248.99
Store - Charlottetown ?
0
$248.99
Store - Edmonton ?
0
$248.99
Store - Mississauga ?
0
$248.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES
       This is the 1/10 scale electric powered, radio controlled, 4WD,
Mitsubishi Pajero Off-Road Truck Kit with Black Painted Body from Tamiya.

FEATURES: Chassis: CC-01, plastic tub construction
Drive: Four wheel drive, shaft driven
Motor: 540 brushed, with 20T pinion gear
Electronic Speed Control: TBLE-02S
Shocks: Oil-filled, CVA, black plastic bodies, white springs
Body: Polycarbonate black, metal plated spare tire cover, mirrors,
grille, smoke colored windows
Gearbox: Front and rear sealed gearbox
Differentials: Planetary gear, rear differential may be locked
during assembly
Transmission: Single speed
Tires: Semi-pneumatic all-terrain, rubber construction 1.2" (30mm)
wide, 2.9" (73mm) low profile diameter
Wheels: ABS plastic, chrome finish, 1.1" (28mm) wide, 1.9" (48mm)
diameter
Bumper: Front, plastic construction, black in color
Suspension: Front, long stroke double wishbone
Rear, four link rigid
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: Mitsubishi Pajero Off-Road Truck Kit with Oil-Filled Shocks, 540
Brushed Motor, ESC, Injection Molded Body, Tires, Wheels, Decal
Sheet, Shock Oil, 20 Tooth Pinion Gear and Instruction Manual
_
REQUIRES: Radio: 2-channel with standard size steering servo
Battery: 6-cell stick pack w/ standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 16.8" (426mm)
Width: 7.7" (195mm)
Height: 8.5" (215mm)
Weight: 53.3oz (1510g)
Wheelbase: 9.9" (252mm)
BODY-
Length: 15" (381mm)
Width: 7.1" (180mm) at wheel wells, widest point
Height: 5.3" (135mm)

COMMENTS: For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
3 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
2 6x12mm Fr Diff 1 DTXC1569
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547
