TAM58621

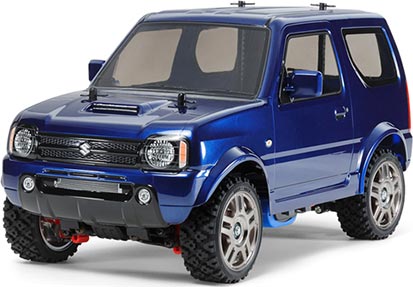

Suzuki Jimny Jb23 MF-01X Met Blue

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM58621
Suzuki Jimny Jb23 MF-01X Met Blue
By TAMIYA
$255.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Monster Truck Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$255.99
Warehouse ?
StockStock availability for pick up
0
$255.99
Warehouse ?
0
$255.99
Store - Charlottetown ?
0
$255.99
Store - Edmonton ?
0
$255.99
Store - Mississauga ?
0
$255.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

Cera-Grease HG
$9.99

3mm Grub Screw 44002
$5.99

Heat Resist Dbl Side Tape
$7.99
TG10 Front Wheel Axle
$12.99

Ball Bearing Set MF-01X
$45.99

Alum Motor Mount MF-01X
$23.99

Pinion Gear Set 16/17T
$9.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
               This is the Radio Controlled, Electric Powered,
Suzuki Jimny JB23 Off Road Vehicle Kit from Tamiya.

FEATURES: Chassis: Three-piece resin monocoque, compatible with existing
M-chassis bodies, adjustable wheelbase
Drive: Four wheel, gear driven rear wheels, dogbone with driveshaft
driven front wheels
Motor: Brush equipped Mabuchi RS-540 Torque Tuned
Electronic Speed control: TBLE-02S with Tamiya type connector
Suspension: Four wheel independent double wishbone
Differentials: Gear type
Tires: Rally block 1.06" (27mm) wide, 2.7" (69mm) diameter
Wheels: 1.02" (26mm) wide, 1.9" (48mm) diameter, 5-spoke, gun-metal
gray in color
Body: Molded polycarbonate, trimmed and painted in Tamiya (PS-59)
Dark Metallic Blue
Shocks: Friction, plastic body
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Non-adjustable
Steering: Bellcrank type

INCLUDES: Suzuki Jimny JB23 Off Road Vehicle Kit with Brushed Motor, TBLE-02S
ESC, Tires, Wheels, Shocks, Painted Body, Decals, Instruction
Manual, 16T Pinion Gear

REQUIRES: Radio: 2-channel with high torque steering servo
Battery: 6-cell NiMH with Standard connector
Battery Charger: To match selected battery
Tools, track equipment

SPECS: Wheelbase: 8.8" (225mm) adjustable
Body-
Length: 13.6" (346mm)
Width: 6" (152mm)
Height: 5.2" (132mm)

COMMENTS: To upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Front Gearbox 1 DTXC1547
2 5x11mm Rear Gearbox 1 DTXC1547
2 5x8mm Driveshaft 1 DTXC1523
2 5x11mm Rear Axles 1 DTXC1547
2 5x11mm Front Wheels 1 DTXC1547
