TAM58619

1/10 Petronas Tom's RC F (TT-02)

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (1)
Optional Items (11)
TAMIYA

TAM58619
1/10 Petronas Tom's RC F (TT-02)
By TAMIYA
$158.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$158.99
Warehouse ?
Stock availability for pick up
0
$158.99
Warehouse ?
0
$158.99
Store - Charlottetown ?
0
$158.99
Store - Edmonton ?
0
$158.99
Store - Mississauga ?
0
$158.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

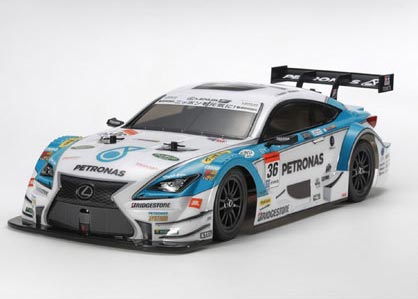

         This is the 1/10 scale, electric powered, radio controlled,
Petronas TOMS RC F Super GT Race Car Kit from Tamiya.

FEATURES: Chassis: TT-02 ABS resin bathtub type minimizes contact with the road
upright assembly can be changed to give chassis an extra 4mm of
travel for Rally racing
Drive: Four wheel, shaft driven, with dogbones
Motor: Tamiya Torque Tuned 540 brushed with aluminum heat sink
Electronic Speed Control: Tamiya TBLE02S brushless compatible
Differential: Gear type
Wheels: Nylon construction, black in color 12mm hex, 1.02" (26mm)
wide 2.00" (51mm) diameter
Tires: Slick rubber with foam inserts
Suspension: Fully independent double wishbone
Shocks: Plastic body, friction, not oil filled
Body: Clear polycarbonate
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bellcrank type
Bumper: Front, urethane

INCLUDES: Petronas TOM'S RC F Super GT Race Car Kit with 540 Brushed
Motor, Tires, Wheels, Clear Body, Foam Inserts, ESC, Decals and
Instructions

REQUIRES: Radio: 2-channel with high speed steering servo
Battery: 7.2V NiMH
Battery Charger: To match selected battery
Building and track equipment

SPECS: Specs such as finished size of chassis not provided by manufacturer
Body;
Length: 16.6" (421mm)
Width: 7.5" (190mm)
Height: 3.8" (98mm)
Wheelbase: 10.1" (257mm)

COMMENTS: To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
4 8x12mm Differential 2 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535

jxs 09/03/15
ir/jxs
4950344586196 4950344586196
TAMC8619
