Home » Product Info »
TAM58612

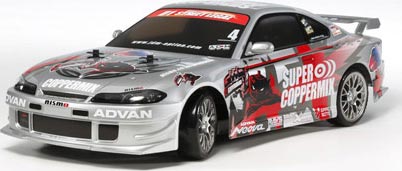

1/10 Nismo Coppermix Silvia TT-02D Drift Spec

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM58612
1/10 Nismo Coppermix Silvia TT-02D Drift Spec
By TAMIYA
$275.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Drift Car Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$275.99
Warehouse ?
StockStock availability for pick up
0
$275.99
Warehouse ?
0
$275.99
Store - Charlottetown ?
0
$275.99
Store - Edmonton ?
0
$275.99
Store - Mississauga ?
0
$275.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

TT-02 Lower Deck Hard/Blue
$9.99

Cera-Grease HG
$9.99

RS540 Sport Tuned Motor 49/62
$38.99
3mm Grub Screw 44002
$5.99

Heat Resist Dbl Side Tape
$7.99

Body Pin Set
$4.99

1050 Ball Bearing Set 4pcs
$13.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
         This is the 1/10 scale, electric powered, radio controlled,
Tamiya TT02D Drift Spec Chassis Kit with the Nismo Coppermix Silvia Body.

FEATURES: Chassis: Plastic, bathtub type with skid shaped underside to
minimize contact with the road surface
Drive: Four wheel, shaft driven
LED Lights: Two head and two tail lights with wiring, connectors,
two zip ties and TLU-01 Light Control Unit
Motor: Tamiya Sport Tuned 540 brushed with aluminum heat sink
Electronic Speed Control: Tamiya TBLE02, will handle brushless
motors
Differential: Gear type
Tires: Slick rubber construction, Super Driftech 0.94" (24mm) wide
Ball Bearings: Shielded
Suspension: Fully independent double wishbone
Shocks: CVA Super Mini oil-filled plastic body
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bellcrank type
Bumper: Front, foam

INCLUDES: Tamiya TT02D Drift Spec Chassis, with 540 Brushed Motor, Drift Tires,
ESC, Wheels, 70 tooth Spur Gear, 22 tooth Pinion Gear, Decals,
Clear Body four LED lights with control unit and Instructions

REQUIRES: Radio: 2-channel with high speed steering servo
Battery: 7.2V NiMH with Standard connector
Battery Charger: To match selected battery
Building and track equipment

SPECS: Specs such as finished size and weight of chassis not provided
by manufacturer
Body;
Length: 17.7" (450mm)
Width: 7.5" (190mm)
Height: 3.75" (95.2mm)

COMMENTS: For replacement, Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
4 8x12mm Differential 2 DTXC1581
2 8x12mm Rear Diff Assembly 1 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535

jxs 05/26/15
ir/jxs
4950344586127 4950344586127
TAMC8612
