TAM58607

1/10 Subaru Brz R&d Sport 2014 Rd.2 Fuji TT-02

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM58607

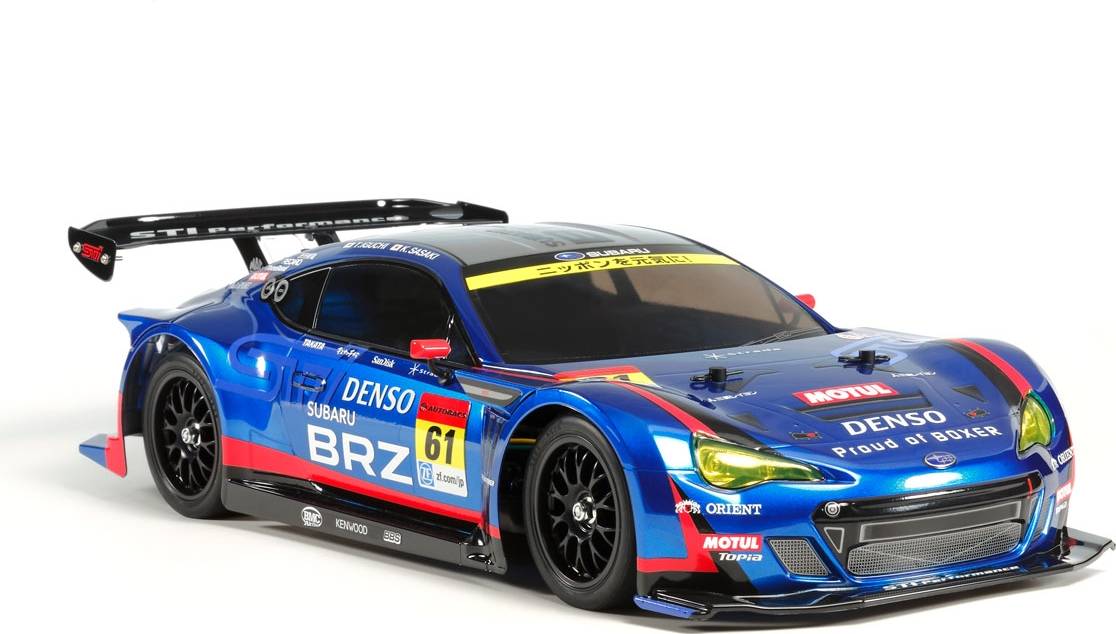

1/10 Subaru Brz R&d Sport 2014 Rd.2 Fuji TT-02
By TAMIYA
$172.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$172.99
Warehouse ?
StockStock availability for pick up
0
$172.99
Warehouse ?
0
$172.99
Store - Charlottetown ?
0
$172.99
Store - Edmonton ?
0
$172.99
Store - Mississauga ?
0
$172.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
TT-02 Lower Deck Hard/Blue
$9.99

Body Set Motul Autech GT-R
$59.99

Differential Locking Block TT-02
$19.99

Body Set Raikiri GT
$59.99
Body Set Motul Autech GT-R Lightweight
$59.99

Body Set NSX
$59.99

Body Set Ferrari 458 Lightweight
$59.99

Steel Rebound Stopper TT-02 Type-S (2)
$21.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

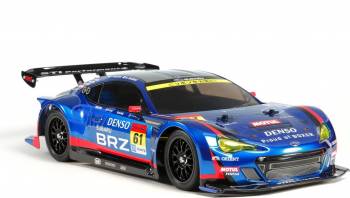

      This is the 1/10 scale, Tamiya electric powered, radio controlled,
Subaru BRZ R&D Sport 2014 On-Road Rally Car Kit.

FEATURES: Chassis: TT-02 ABS resin bathtub type minimizes contact with the road
upright assembly can be changed to give chassis an extra 4mm of
travel for Rally racing
Drive: Four wheel, shaft driven, with dogbones

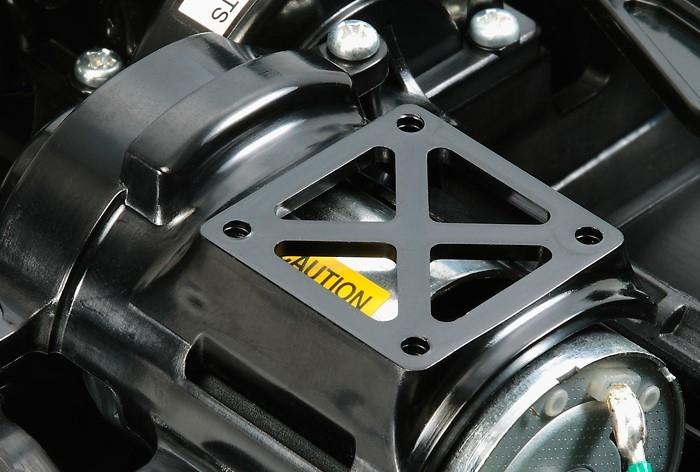

Motor: Tamiya Torque Tuned 540 brushed with aluminum heat sink

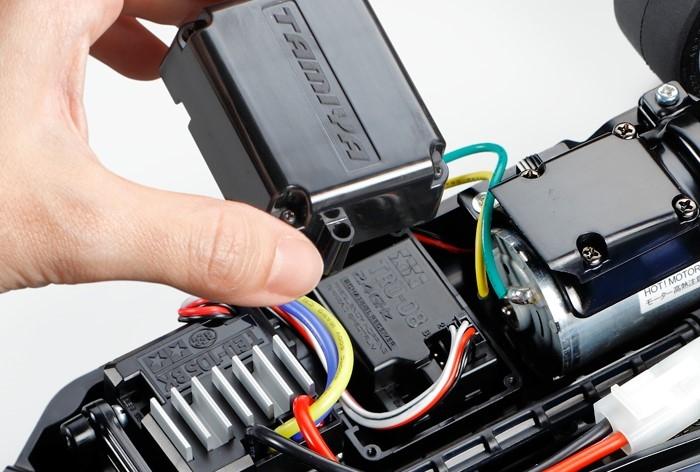

Electronic Speed Control: Tamiya TBLE02S brushless compatible

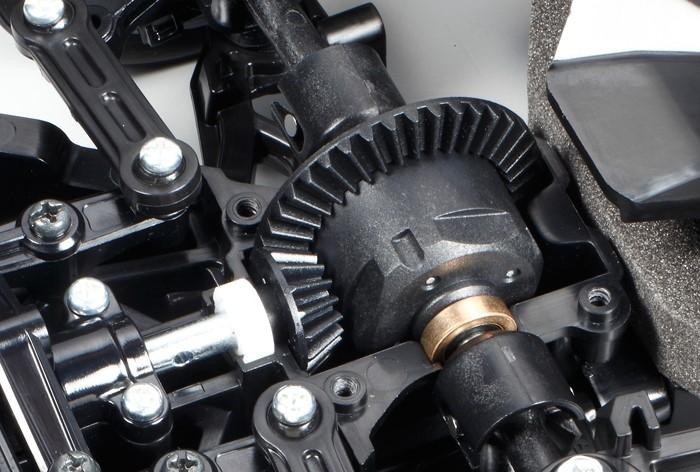

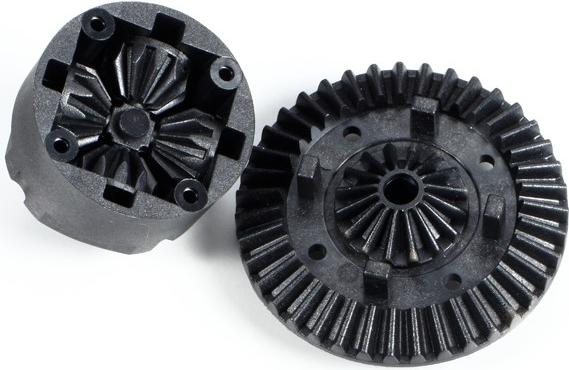

Differential: Gear type

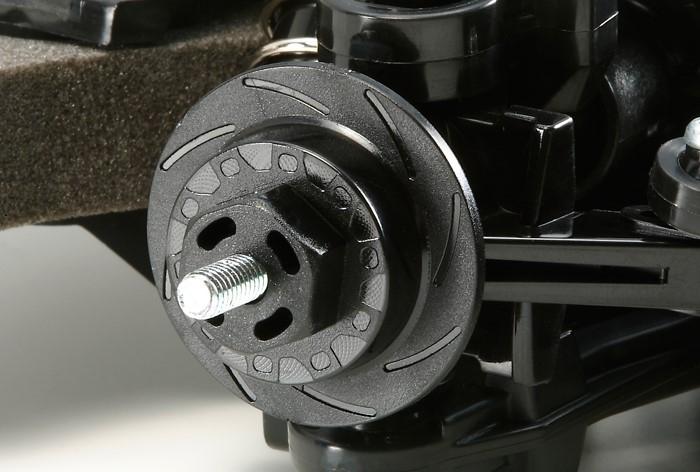

Wheels: Nylon construction, black in color 12mm hex, 1.02" (26mm)
wide 2.00" (51mm) diameter
Tires: Slick rubber with foam inserts
Suspension: Fully independent double wishbone
Shocks: Plastic body, friction, not oil filled
Body: Clear polycarbonate
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis

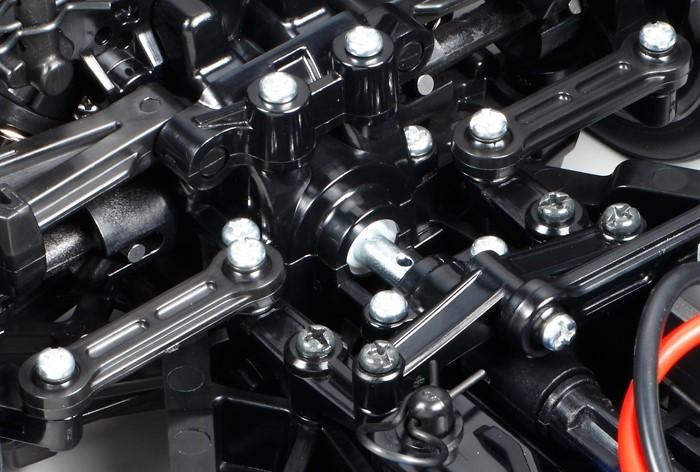

Steering: Bellcrank type
Bumper: Front, urethane

INCLUDES: Subaru BRZ R&D Sport with 540 Brushed Motor, Tires,
Wheels, Clear Body, Foam Inserts, ESC, Decals and Instructions

REQUIRES: Radio: 2-channel with high speed steering servo

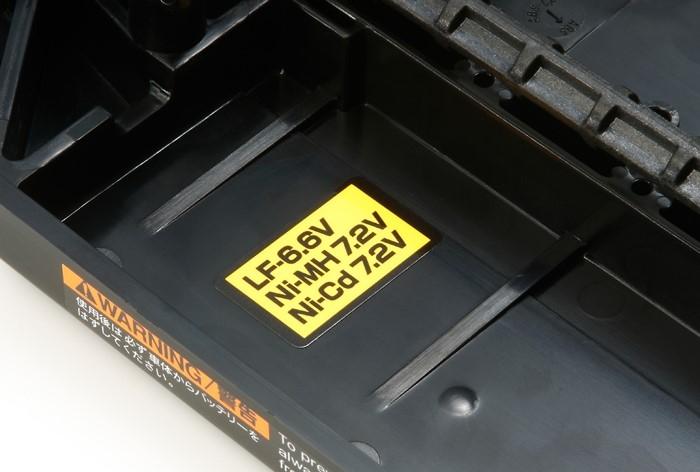

Battery: 7.2V NiMH
Battery Charger: To match selected battery
Building and track equipment

SPECS: Specs such as finished size of chassis not provided by manufacturer
Body;
Length: 16.6" (421mm)
Width: 7.5" (190mm)
Height: 3.8" (98mm)

COMMENTS: To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
4 8x12mm Differential 2 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535
