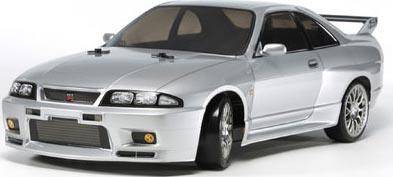

         This is the 1/10 scale, electric powered, radio controlled,
Tamiya TT02D Drift Spec Kit with the Nissan Skyline GT-R (R33) Body.

FEATURES: Chassis: Plastic, bathtub type with skid shaped underside to
minimize contact with the road surface
Drive: Four wheel, shaft driven
Motor: Tamiya Sport Tuned 540 brushed with aluminum heat sink
Electronic Speed Control: Tamiya TBLE-02
Differential: Gear type
Tires: Slick rubber construction, Super Driftech 0.94" (24mm) wide
Wheels: Silver colored mesh type, 1.9" diameter (48.2mm), 0.94"
(24mm) wide, 12mm hex, +2 offset
Ball Bearings: Shielded
Suspension: Fully independent double wishbone
Shocks: CVA Super Mini oil-filled plastic body
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bellcrank type
Body: Clear untrimmed Nissan Skyline GT-R with decals and window
masks
Bumper: Front, foam

INCLUDES: Tamiya TT02D Drift Spec Chassis, with 540 Brushed Motor, Drift Tires,
Clear Body, 70 tooth Spur Gear, 22 tooth Pinion, ESC, Decals,
Window Masks, Instructions and Wheels

REQUIRES: Radio: 2-channel with high speed steering servo
Battery: 7.2V NiMH
Battery Charger: To match selected battery
Building and track equipment

SPECS: Specs such as finished size and weight of vehicle not provided
by manufacturer
Body
Length: 18.1" (460mm)
Width: 6.9" (176mm) behind front wheels, widest point
7.5" (190mm) at rear wheels, widest point
Height: 4.2" (106mm)

COMMENTS: For replacement, Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
4 8x12mm Differential 2 DTXC1581
2 8x12mm Rear Diff Assembly 1 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535
