TAM58602

Mitsubishi Pajero Rally

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (16)
Optional Items (3)
TAMIYA

TAM58602
Mitsubishi Pajero Rally
By TAMIYA
$259.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Monster Truck Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$259.99
Warehouse ?
Stock availability for pick up
0
$259.99
Warehouse ?
0
$259.99
Store - Charlottetown ?
0
$259.99
Store - Edmonton ?
0
$259.99
Store - Mississauga ?
0
$259.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

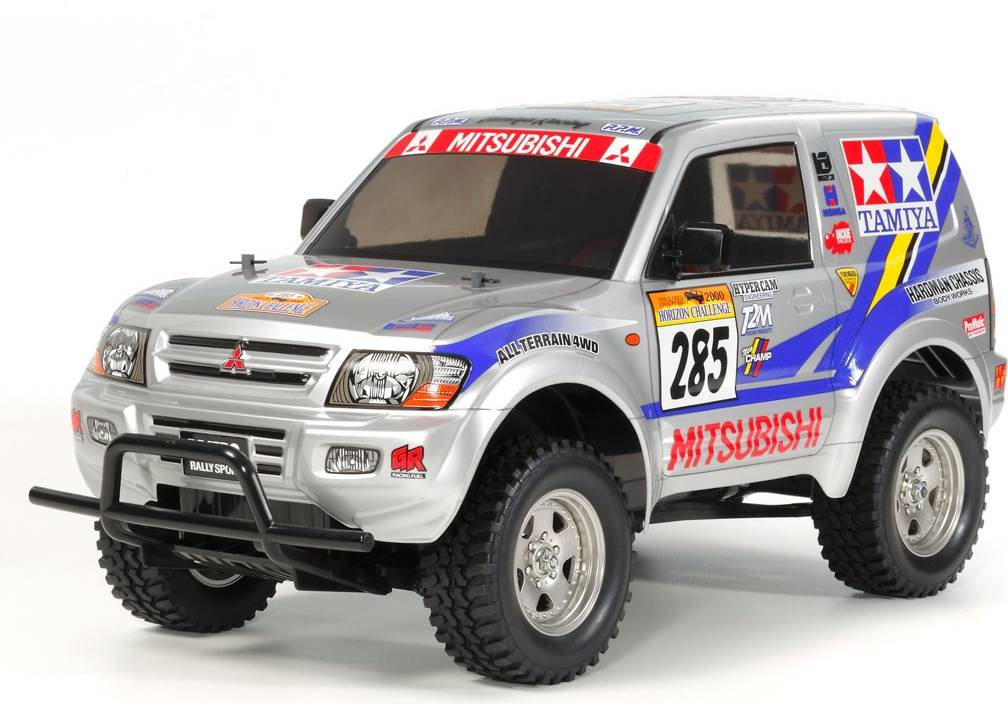

        This is the 1/10 scale electric powered, radio controlled, 4WD
Mitsubishi Pajero Rally Off-Road Kit from Tamiya.

FEATURES: Chassis: CC-01, plastic tub construction

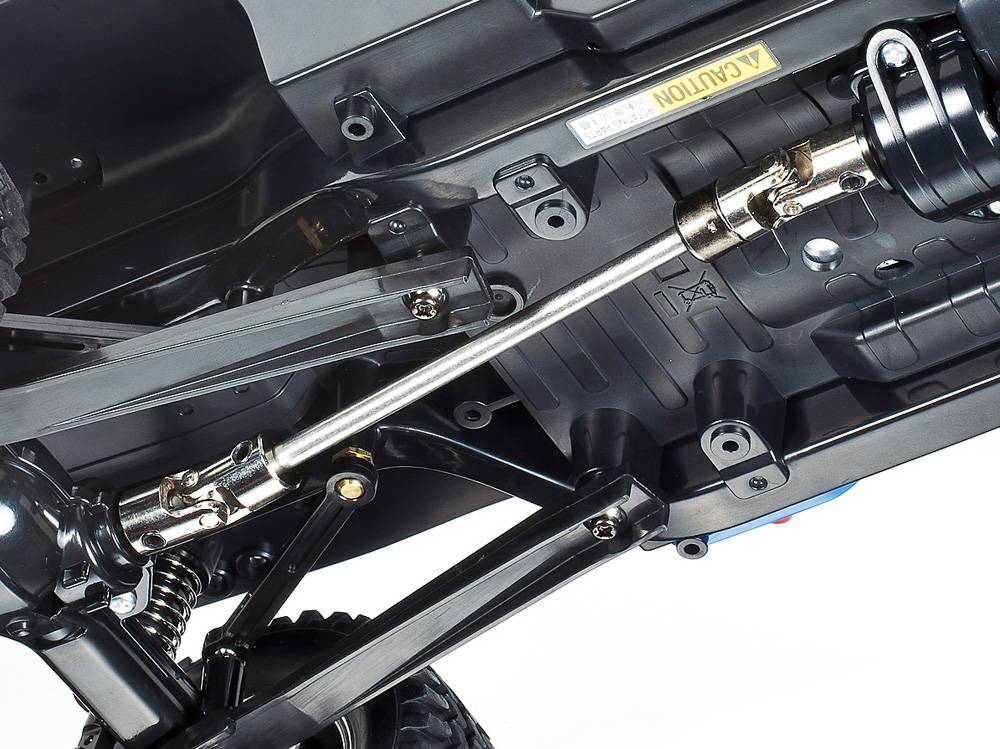

Drive: Four wheel drive, shaft driven
Motor: 540 brushed electric motor
Electronic Speed Control: TBLE-02S
Shocks: Oil-filled, black plastic bodies
Gearbox: Front and rear sealed gearbox
Differentials: Live axle
Transmission: Single speed
Body: Clear molded polycarbonate
Tires: Semi-pneumatic all-terrain block pattern 1.2" (30mm)
wide, 3.5" (90mm) diameter
Wheels: Five spoke plastic, silver in color 1" (26mm) wide,
1.9" (48mm) diameter
Bumper: Front, plastic construction, black in color

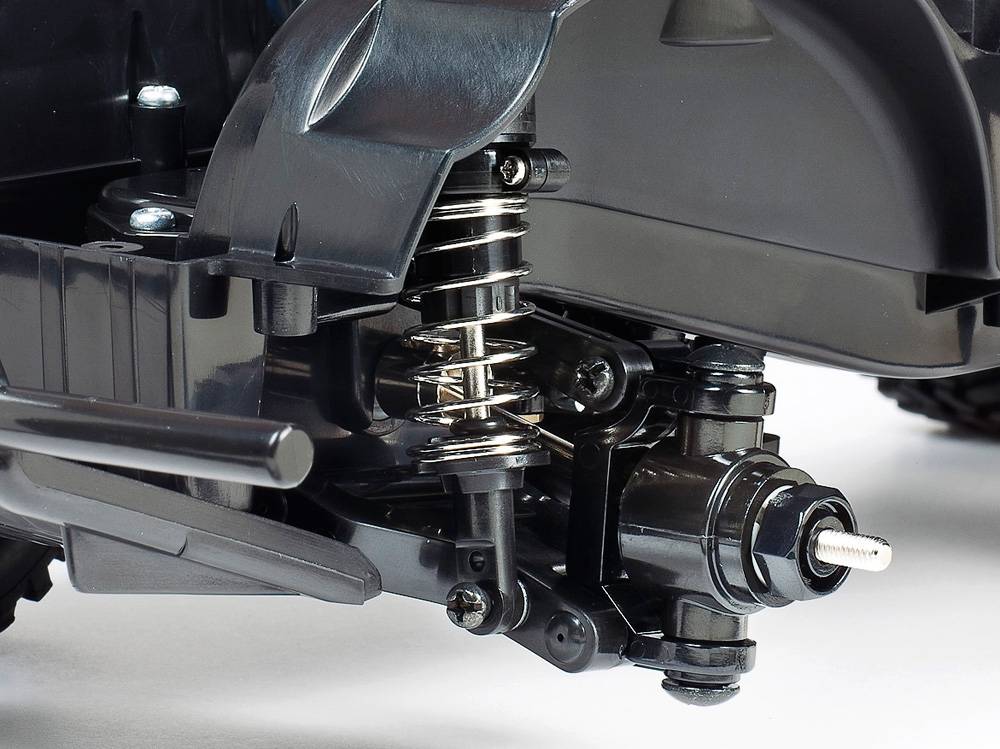

Suspension: Front, independent

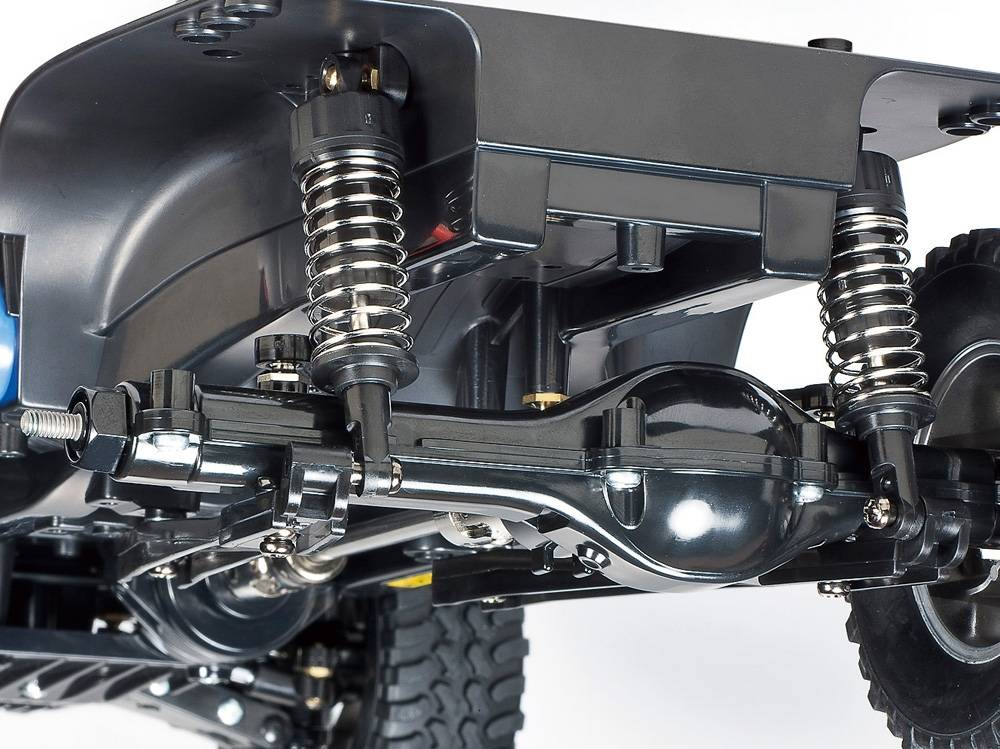

Rear, solid axle
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: Mitsubishi Pajero Rally with oil-filled shocks, 540 motor, ESC,
clear body, tires, wheels, shock oil, 16 tooth pinion gear, spur
gear, instructions

REQUIRES: Radio: 2-Channel with high-torque steering servo
Eight AA batteries for transmitter
Battery: 6-cell stick pack w/ standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 16.8" (426mm)
Width: 7.7" (195mm)
Height: 8.5" (215mm)
Weight: 53.3oz (1510g)
Wheelbase: 9.9" (252mm)
BODY-
Length: 15.5" (394mm)
Width: 7.2" (184mm)
Height: 5.2" (132mm)

COMMENTS: For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Spur Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547
