TAM58601

Tractor Kumamon Version WR-02G

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (10)
Optional Items (3)
TAMIYA

TAM58601
Tractor Kumamon Version WR-02G
By TAMIYA
$227.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Misc Car/Truck Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$227.99
Warehouse ?
Stock availability for pick up
0
$227.99
Warehouse ?
0
$227.99
Store - Charlottetown ?
0
$227.99
Store - Edmonton ?
0
$227.99
Store - Mississauga ?
0
$227.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.

VIDEO



click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

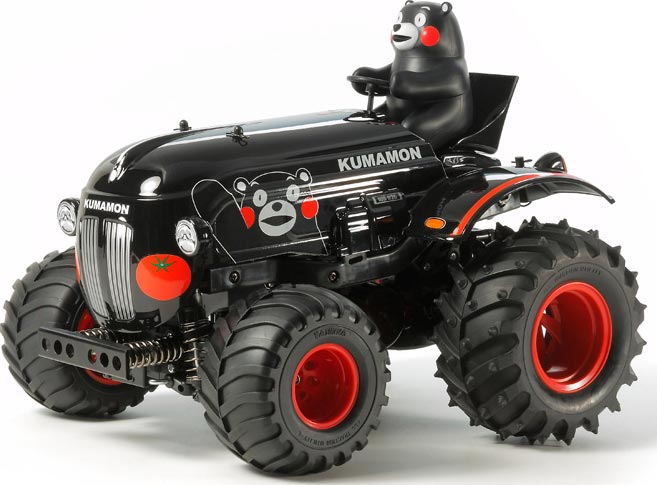

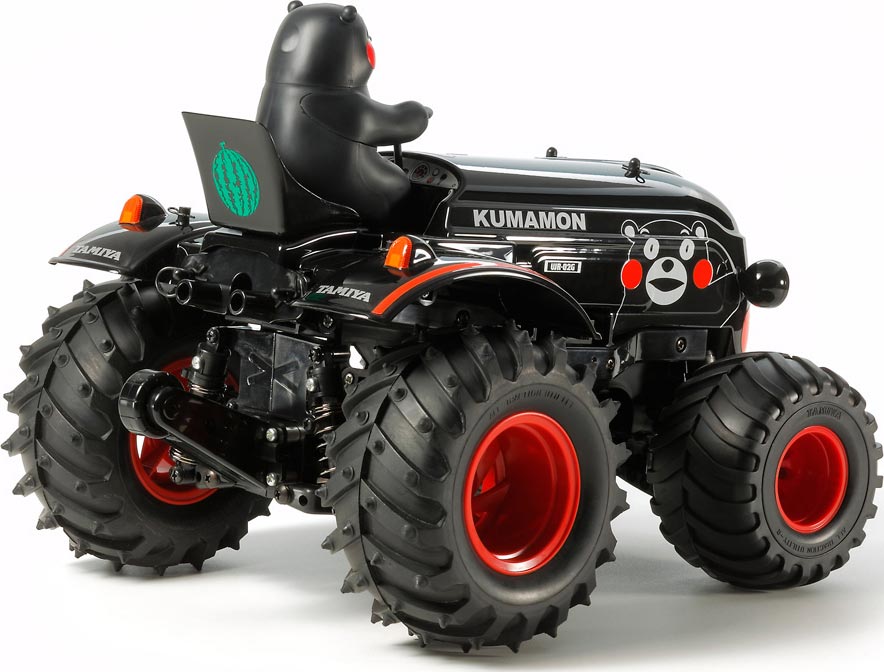

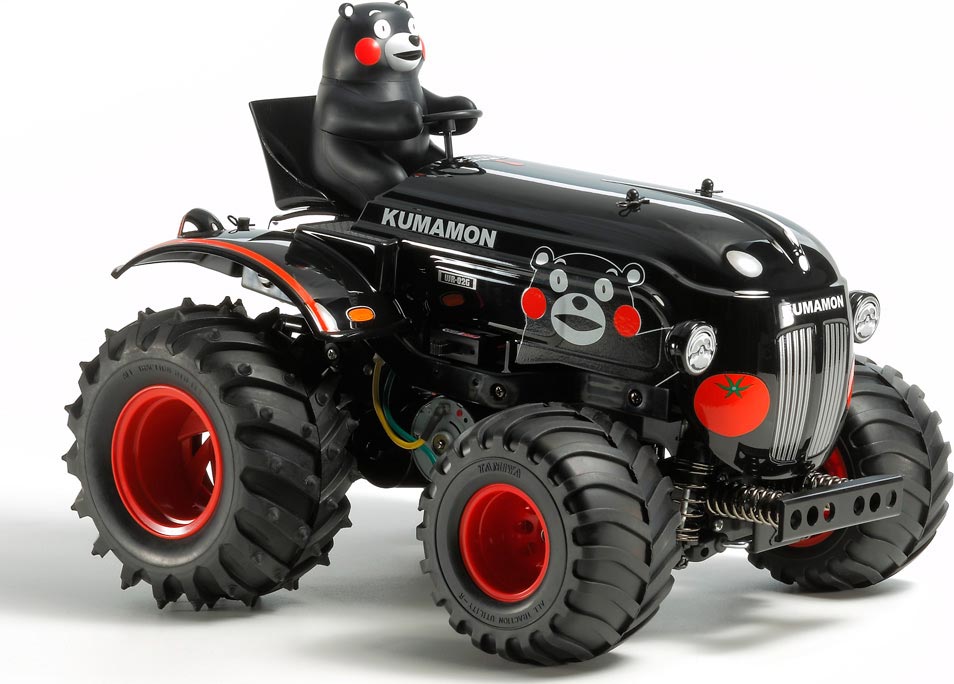

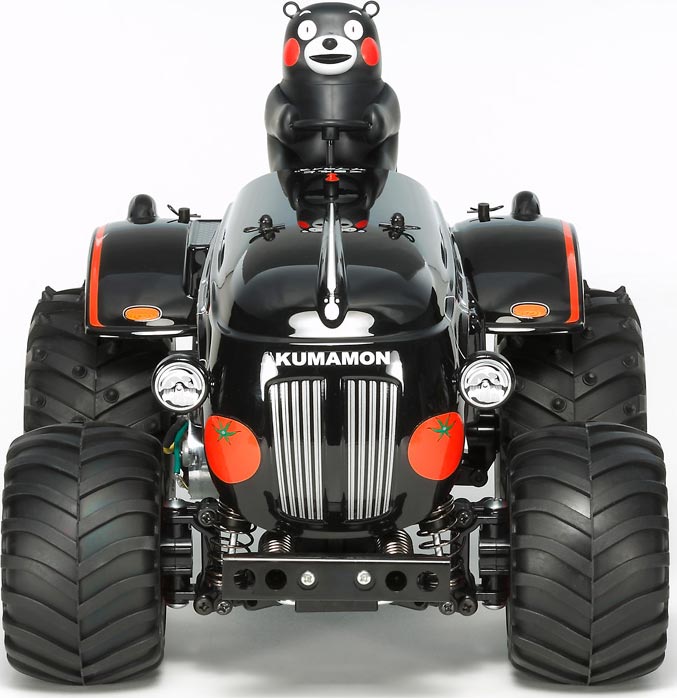

     This is the Tamiya 1/12 scale Electric Powered, Radio Controlled,
Kumamon Version Tractor Kit.

Kumamon is a character used to publicize the Japanese Prefecture of Kumamoto
in Kyushu, an island in south Japan.

FEATURES: Chassis: WR-02G monocoque with wheelie bar
Drive: Two wheel
Motor: 540 brushed
Electronic Speed Control: Tamiya TBLE-02S
Differentials: Front and rear in sealed gearbox integrated into frame
Body: Clear polycarbonate
Suspension: Fully independent double wishbone
Shocks: Plastic body friction
Steering: Direct servo
Tires: Chevron pattern rubber, rear 5.1" (130mm) diameter,
front 3.8" (97mm) diameter
Wheels: Molded plastic, orange in color
Bumper: Front spring loaded
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Driver Figure: Prepainted and assembled, head position can be
altered

INCLUDES: Tumbling Kumamon Tractor Kit with ESC, Motor, Clear Body,
Driver Figure, Tires, Wheels, Shocks and Instruction Manual

REQUIRES: Radio: 2-channel
Battery: 7.2V NiMH 6-cell stick pack with standard connector
Battery Charger: Compatible with selected battery
AA Batteries: For transmitter
Paint, building and track equipment

SPECS: Vehicle;
Length: 13.6" (345mm)
Width: 9.96" (253mm)
Height: 9.25" (235mm)
Wheelbase: 6.7" (170mm)
Body;
Length: 11.2" (285mm)
Width: 8" (203mm)
Height: 2.25" (57mm)

COMMENTS: For replacement or to upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Rear Uprights 1 DTXC1547
4 5x11mm Front Uprights 2 DTXC1547
5 5x11mm Gearbox 3 DTXC1547

To paint body to match picture on box, order:
PS-5 Poly Spray Black, TAMR8605
X-1 Acrylic Brush-on Black, TAMR8101

jxs 02/04/15
4950344586011 4950344586011
TAMC8601
