1/10 Laferrari TT-02
click to enlarge

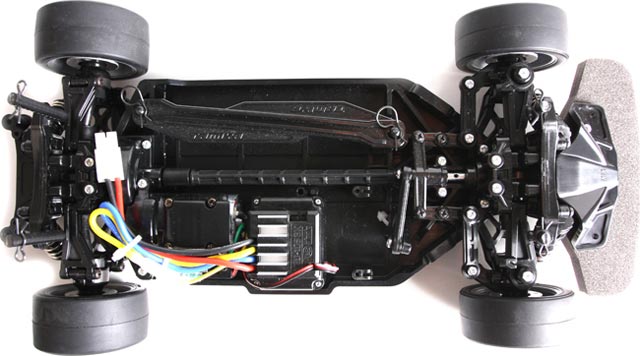

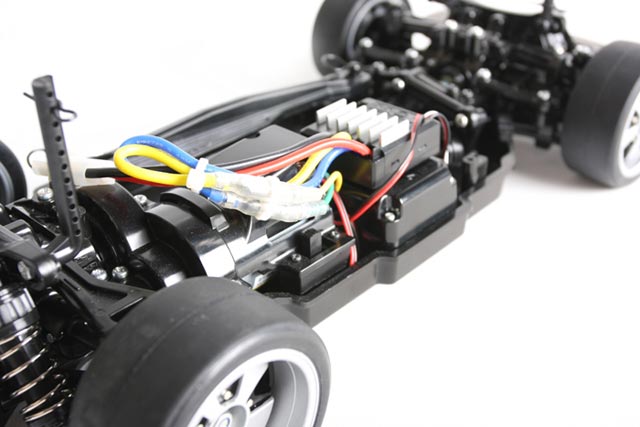

- The versatile shaft-driven 4WD TT-02 chassis is perfect for beginners.

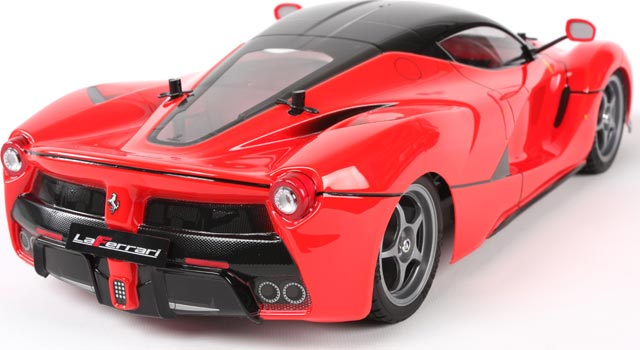

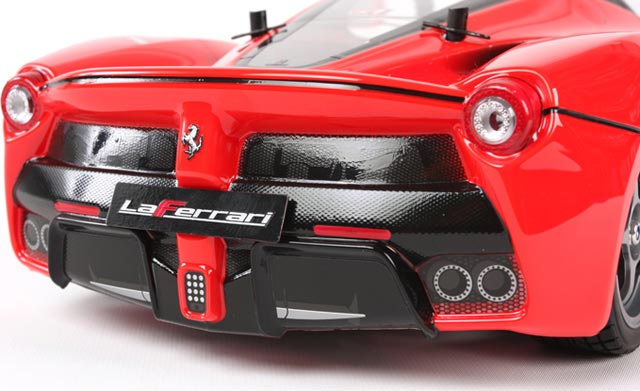

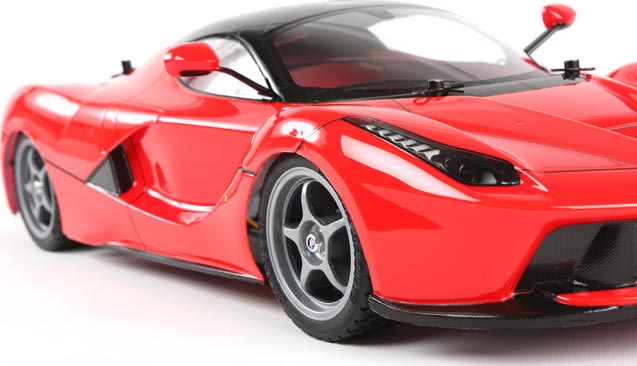

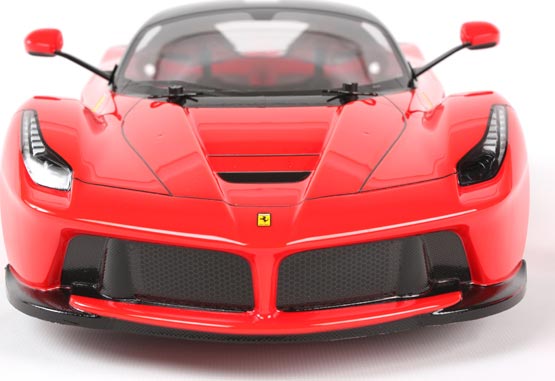

- Separate side mirror and light case parts are included.
- The model is compatible with separately-sold LED units.
- Includes body markings and masking stickers for use when painting the model.
The LaFerrari is the latest hi-tech super car from the world-famous Ferrari sport car automaker. It was announced by the Italian company in March 2013 and features active aerodynamics, spoilers and other parts automatically adjust to provide optimal down-force, based on performance data collated internally by the car. The HY-KERS hybrid system makes use of Formula One technology, its 6,262cc V12 engine and an electric motor combining to give 963hp. Unlike your typical hybrid passenger car, the LaFerrari is considered a "mild-hybrid" car. Mild hybrids are essentially conventional vehicles with some degree of hybrid hardware, but with limited hybrid feature utilization. Only 499 of the limited edition vehicle will be produced, so it may prove to be a hard car to purchase on a whim. Prospective owners do have an alternative. The next best thing is to acquire the Tamiya R/C high performance car model!

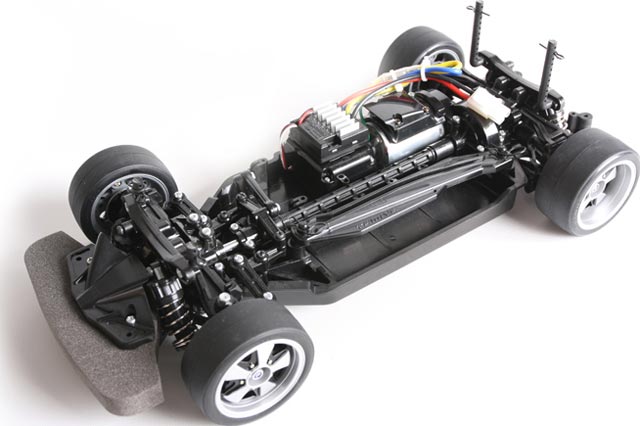

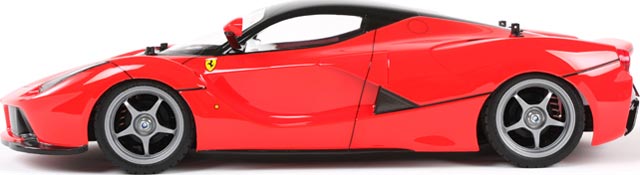

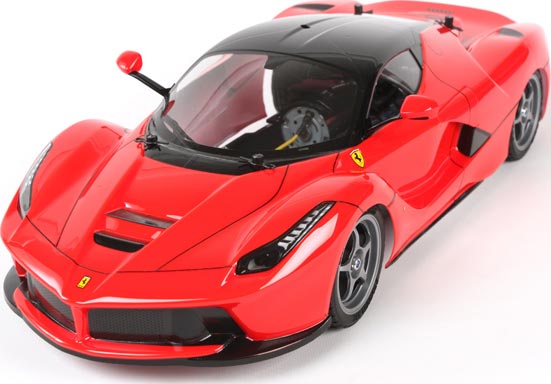

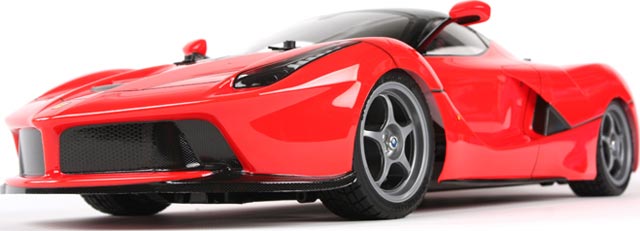

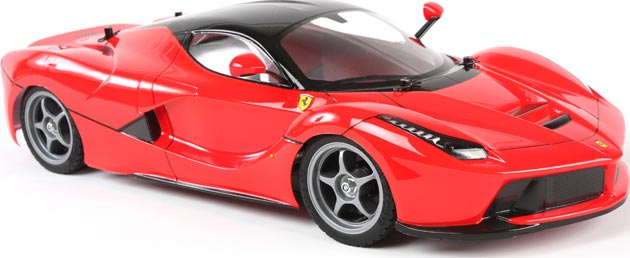

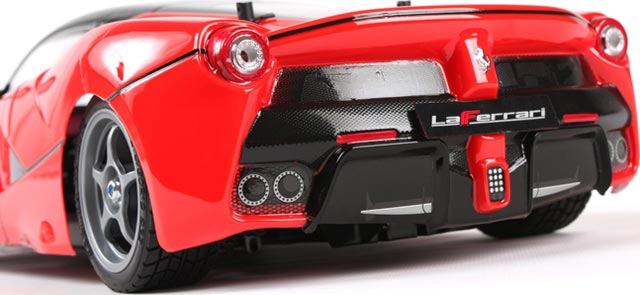

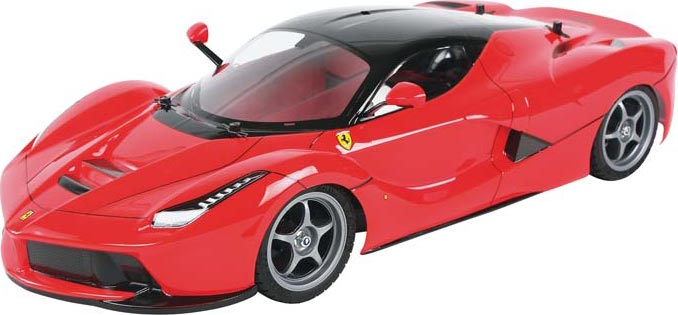

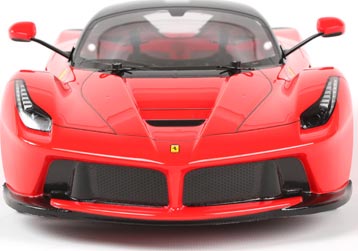

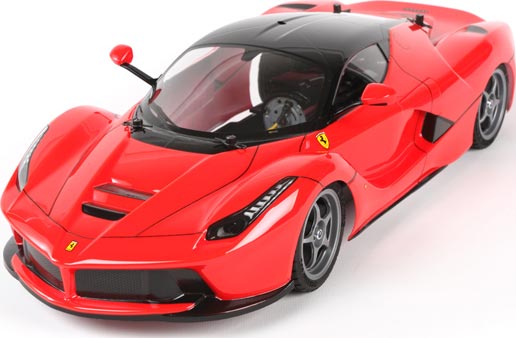

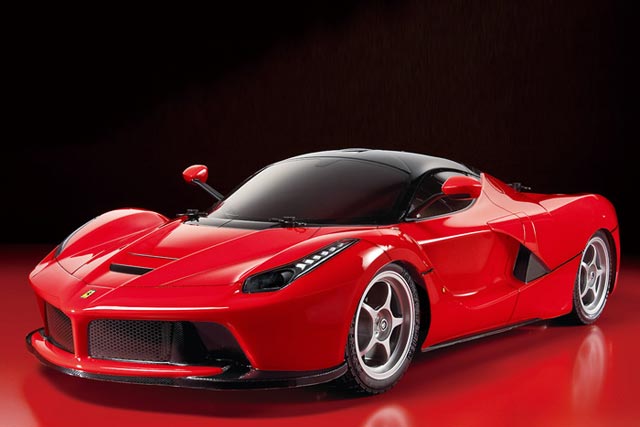

Tamiya has faithfully reproduced this sleek sports car machine in 1/10 scale on the TT-02 entry level touring and sports car chassis. The TT-02 chassis platform is the successor to the TT-01 and it incorporates many new features to make it even easier for the new R/C kit builder to assemble and learn from. The TT-02 chassis performs well as cornering and overall speed has been enhanced to take advantage of new electronics available on the market. In addition to the TT-02 being an ideal platform to start from, R/C hobbyists can expand its potential by adding many of the Ho-Up-Options available to increase the cars speed and performance.

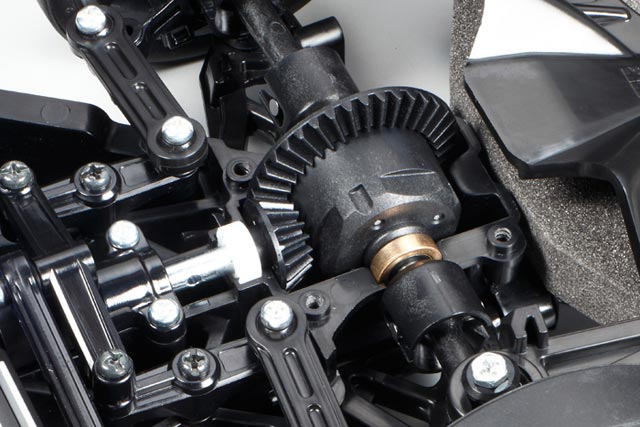

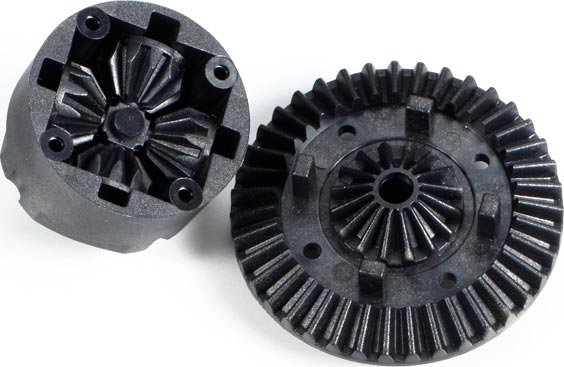

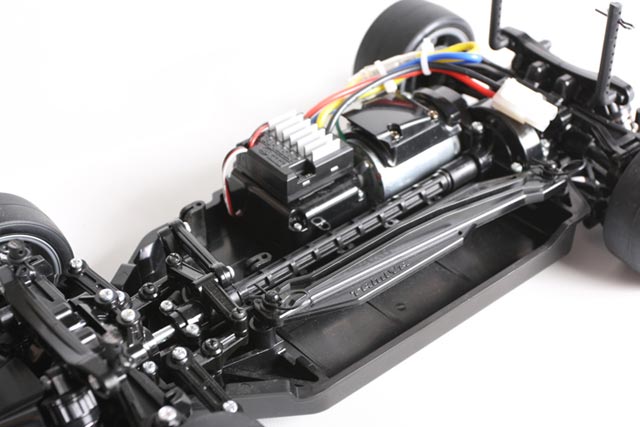

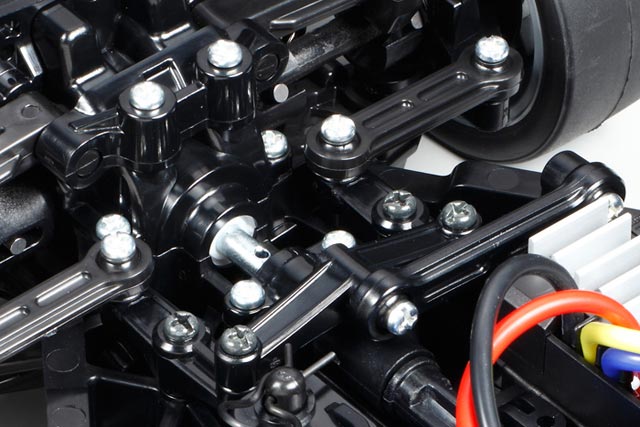

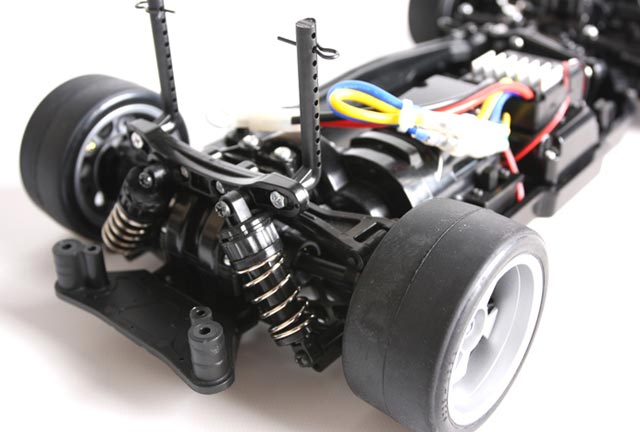

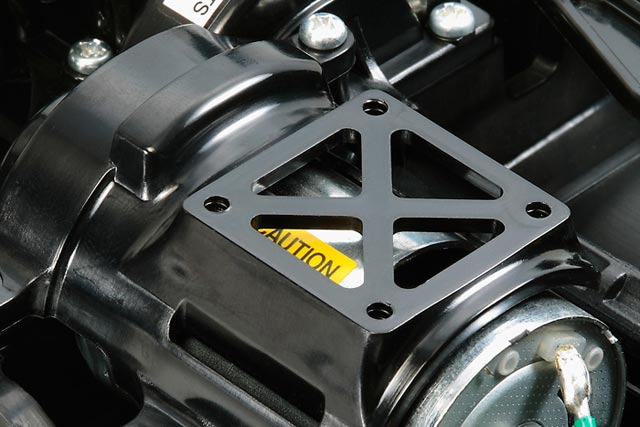

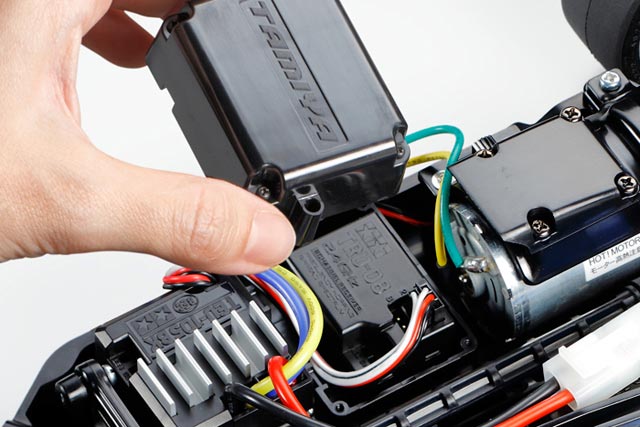

This is the Radio Controlled, Electric Powered, 1/10 scale, TT-02 LaFerrari On-Road Car Kit from Tamiya. FEATURES: Chassis: Plastic, TT-02 Drive: Four wheel drive, dogbone Motor: Torque-Tuned 540 size brushed ESC: TEU-105BK with reverse Differential: Gear type Suspension: Fully independent double wishbone Shocks: Plastic body, friction (not oil filled) Tires: Treaded rubber 2.5" (65mm) diameter, 1" (25.4mm) wide Wheels: Gray, five spoke, 1" (25.4mm), 2.04" (52mm) diameter Steering: Bellcrank type Body: Polycarbonate, with separate light cases and rear wing Bumper: Front foam Camber: Non-adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle Caster: Adjustable front only, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis INCLUDES: TT-02 Factory Finished On-Road Chassis with Brushed Motor, ESC, Body, Decals, and Instruction Manual REQUIRES: Radio: 2-ch with steering servo Battery: 7.2V stick pack with standard connector Battery Charger: For selected batery pack Track and maintenance equipment SPECS: Vehicle- Specs such as length, width, height and weight not provided by manufacturer Wheelbase: 9.9-10.1" (251-257mm) adjustable Body Length: 18" (457mm) Width: (182mm) Height: 3.5" (90mm) COMMENTS: To upgrade to ball bearings order; Qty. Size Location Qty Bearing Set 2 5x11mm Spur Gear 1 DTXC1547 2 5x11mm Driveshaft 1 DTXC1547 4 8x12mm Differential 2 DTXC1581 2 5x10mm Front Uprights 1 DTXC1535 2 5x10mm Rear Uprights 1 DTXC1535 jxs 10/03/13 ir/jxs
