TAM58579

1/10 Landfreeder CC01 Body

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (16)
Optional Items (8)
TAMIYA

TAM58579
1/10 Landfreeder CC01 Body
By TAMIYA
$248.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric 4WD Monster Truck Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$248.99
Warehouse ?
Stock availability for pick up
0
$248.99
Warehouse ?
0
$248.99
Store - Charlottetown ?
0
$248.99
Store - Edmonton ?
0
$248.99
Store - Mississauga ?
0
$248.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

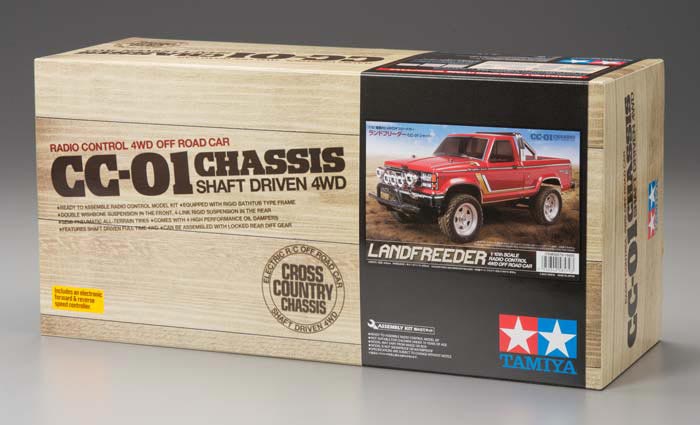

        This is the 1/10 scale electric powered, radio controlled, 4WD
LandFreeder Off-Road Kit from Tamiya.

FEATURES: Chassis: CC-01, plastic tub construction
Drive: Four wheel drive, shaft driven
Motor: 540 electric motor
Electronic Speed Control: TEU-104BK with reverse
Shocks: Oil-filled, black plastic construction
Gearbox: Front and rear sealed gearbox
Differentials: Planetary gear, rear differential may be locked
during assembly
Transmission: Single speed
Body: Clear untrimmed polycarbonate
Tires: Semi-pneumatic all-terrain, rubber construction 1.1" (29mm)
wide, 3.5" (90mm) diameter
Wheels: Five spoke chrome plated plastic, 1" (26mm) wide, 1.9" (48mm)
diameter
Bumper: Front, plastic construction, black in color
Suspension: Front, long stroke double wishbone
Rear, four link rigid
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: Tamiya LandFreeder kit with oil-filled shocks, 540 motor, ESC,
clear body, tires, wheels, shock oil, 16 tooth
pinion gear, spur gear, instructions
_
REQUIRES: Radio: 2-Channel with 1 Servo
Eight AA batteries for transmitter
Battery: 6-cell stick pack w/ standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 17.5" (445mm)
Width: 7.7" (195mm)
Height: 8.5" (215mm)
Weight: 53.3oz (1510g)
Wheelbase: 9.5" (242mm)
BODY-
Length: 15.75" (400mm)
Width: 6.6" (167mm)
Height: 4.25" (108mm)

COMMENTS: To paint body to match color scheme on box, order the following
Tamiya color; PS-15 Metallic Red TAMR8615

For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Spur Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547
