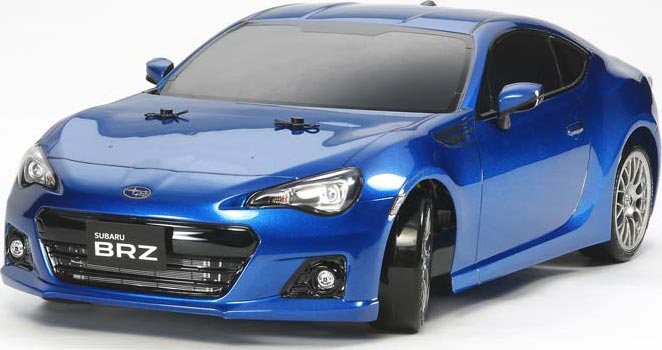

1/10 Subaru BRZ TT01D Type-E Drift Spec

                   This is the electric powered 1/10 scale,
               Tamiya Subaru BRZ On-Road Drift Spec Car Kit.

FEATURES: Chassis: TT-01D type E with shock tower now molded separately from
            the gear case covers and new upper deck with transponder mount
            new A parts (Uprights) made of polycarbonate plastic material
            new D parts (upper deck, motor cover and more) made of fiberglass-
            reinforced nylon material
          Drive: Four wheel shaft drive
          Electronic Speed Control: TEU-105BK with reverse
          Motor: 540 sport tuned brushed motor, blue aluminum heat sink
          Ball Bearings: Full set
          Shocks: Oil-filled, plastic body CVA Super Mini
          Gearbox: Sealed, front and rear
          Differentials: Bevel gear, ball bearing equipped
          Transmission: Single speed
          Body: Polycarbonate, clear
          Tires: Super Driftech drift spec resin 1" (26mm) wide, 2.5" (63mm)
            diameter
          Wheels: Matte silver lace pattern 2.0" (52mm) outer diameter, 0.94"
            (24mm) wide +2° offset
          Bumper: Front foam
          Suspension: Independent double wishbone
          Camber: Adjustable, camber refers to the angle of the tops of the
            tires from vertical when viewed from front or behind vehicle
          Caster: Adjustable, caster/toe-in refers to the angle of the front
            suspension when viewed from the side of the car in relation to the
            chassis
          Steering: Bell-crank type with servo saver

INCLUDES: Tamiya Subaru BRZ Drift Spec Car kit, 540 motor, ESC, clear
            body, tires, foam bumper, spoke wheels, 19 tooth pinion gear, 61
            tooth spur gear, decals and instructions

REQUIRES: Radio: 2-channel with one servo
          Radio Batteries: 8 AA size (for transmitter)
          Battery: 6-cell stick pack with standard connector
          Charger: AC/DC timed or peak for 6-cell battery
          Misc. Items: Building and track equipment

SPECS:      VEHICLE-
          Length: 17.4"  (444mm)
          Width:   7.4"  (187mm)
          Height:  5.2"  (132mm)
          Weight: Approx. 3.1lbs (1400g)
          Wheelbase: 10" (254mm)

             BODY-
          Length: 16.7"  (425mm)
          Width:   7.5"  (190mm)
          Height:  4.2"  (107mm)

COMMENTS: For Replacement or to Upgrade to Ball Bearings use:
            Qty.  Size      Location               Qty.   Bearing Set
             3   5x11mm     Spur Gear               1      DTXC1547
             1   5x8mm      Drive Gear              1      DTXC1523
             2   5x11mm     Fr Diff                 1      DTXC1547
             2   6x12mm     Fr Diff                 1      DTXC1569
             1   5x11mm     Drive Gear              1      DTXC1547
             1   5x8mm      Drive Gear              1      DTXC1523
             4   10x15mm    Front Hubs              2      DTXC1595
             4   5x11mm     Rear Axle Shafts        2      DTXC1547
             1   5x11mm     Rear Prop Joint         1      DTXC1547
             1   5x8mm      Rear Prop Joint         1      DTXC1547
