TAM58564

1/10 Toyota Land Cruiser 40 CC01 Black Spec

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM58564
1/10 Toyota Land Cruiser 40 CC01 Black Spec
By TAMIYA
$413.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Scale Trail & Scale Truck Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$413.99
Warehouse ?
StockStock availability for pick up
0
$413.99
Warehouse ?
0
$413.99
Store - Charlottetown ?
0
$413.99
Store - Edmonton ?
0
$413.99
Store - Mississauga ?
0
$413.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

3mm Grub Screw 44002
$5.99

Body Pin Set
$4.99

Pinion Gear Set 20/21T
$9.99
Diff Bevel Gear Set 49/84
$7.99

Pinion Gear Set 16/17T
$9.99

RC Body Set Toyota FJ Cruiser
$78.99

1150 Sealed Ball Bearing Set (2)
$19.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

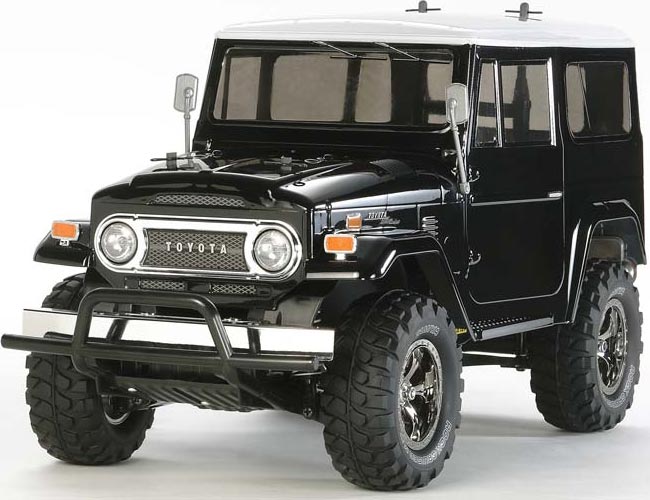

          This is the 1/10 scale electric powered, radio controlled,
Toyota Land Cruiser 40 Off-Road Truck Kit from Tamiya.
Black Special (Painted Body)

FEATURES: Chassis: CC-01, plastic tub construction
Drive: Four wheel shaft driven, may be assembled with locked rear
differential
Motor: 540 electric motor
Electronic Speed Control: TEU-105BK with reverse
Lights: Tamiya TLU-01 (TAMC1394) LED light unit with four LED lights,
see COMMENTS
Shocks: Oil-filled, black plastic construction
Body: Molded polycarbonate, trimmed and painted black with white top
Gearbox: Front and rear sealed gearbox
Differentials: Planetary gear, rear differential may be locked
during assembly
Transmission: Single speed
Tires: Semi-pneumatic all-terrain, rubber construction 1.2" (30mm)
wide, 3.5" (90mm) diameter
Wheels: Gun metal gray chrome finish ABS plastic, 1" (26mm) wide,
1.9" (48mm) diameter
Bumper: Front, plastic construction, black in color
Suspension: Front, long stroke double wishbone
Rear, four link rigid
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: Tamiya RTR Toyota Land Cruiser 40, oil-filled shocks, 540 motor,
painted body, tires, wheels, LED light kit, shock oil, 16 tooth
pinion gear, spur gear, instructions

REQUIRES: Radio: 2-channel with high torque steering servo _
Battery: 6-cell stick pack w/ standard connector
Charger: AC/DC timed or peak for 6-cell battery
AA Batteries: For transmitter
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 16.8" (426mm)
Width: 7.7" (195mm)
Height: 8.5" (215mm)
Weight: 53.3oz (1510g)
Wheelbase: 9.9" (252mm)
BODY-
Length: 14.8" (376mm)
Width: 7.1" (180mm)
Height: 5.9" (151mm)

COMMENTS: The TLU-02 Light Control Unit (not included) can be installed for
more light effects, order TAMC1477.

For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
3 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
2 6x12mm Fr Diff 1 DTXC1569
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547

jxs 07/12/13
ir/jxs
4950344585649 4950344585649
