TAM58559

1/10 Ferrari F2012 F104

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (11)
Optional Items (3)
TAMIYA

TAM58559
1/10 Ferrari F2012 F104
By TAMIYA
$275.99 CAD    314.99
Save $39.00 (12%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road F1 Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$275.99
Warehouse ?
Stock availability for pick up
0
$275.99
Warehouse ?
0
$275.99
Store - Charlottetown ?
0
$275.99
Store - Edmonton ?
0
$275.99
Store - Mississauga ?
0
$275.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

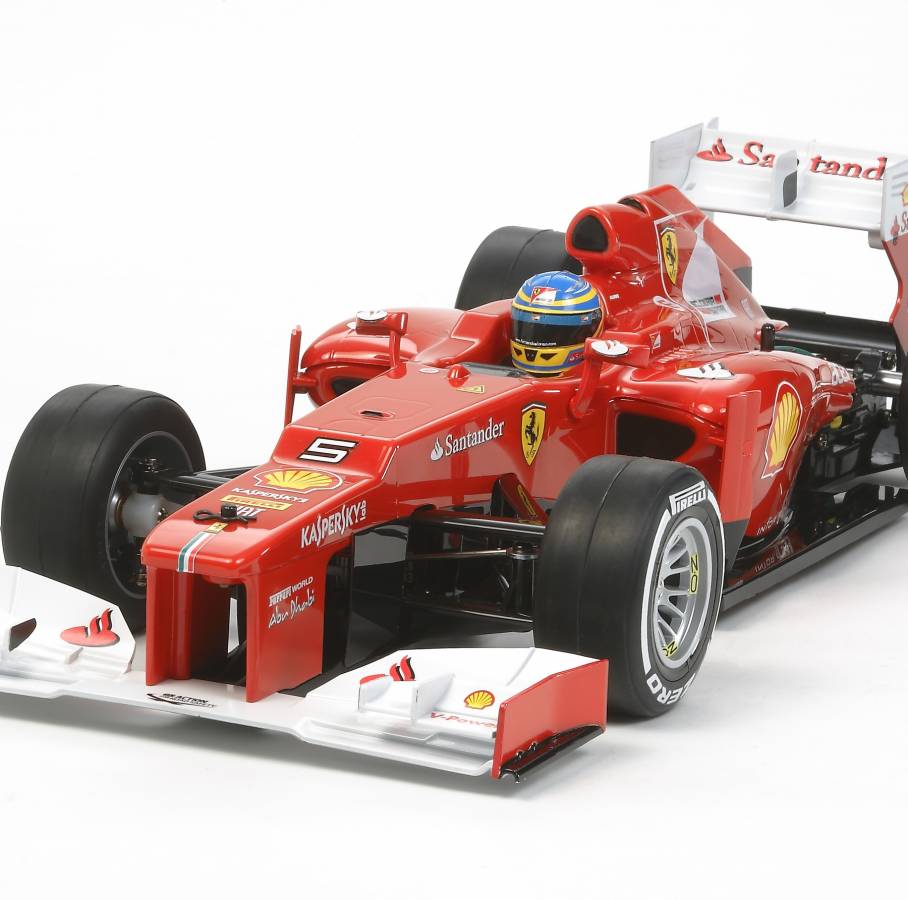

         This is the 1/10 scale, electric powered, radio controlled
Ferrari F2012 Racing Car kit from Tamiya.

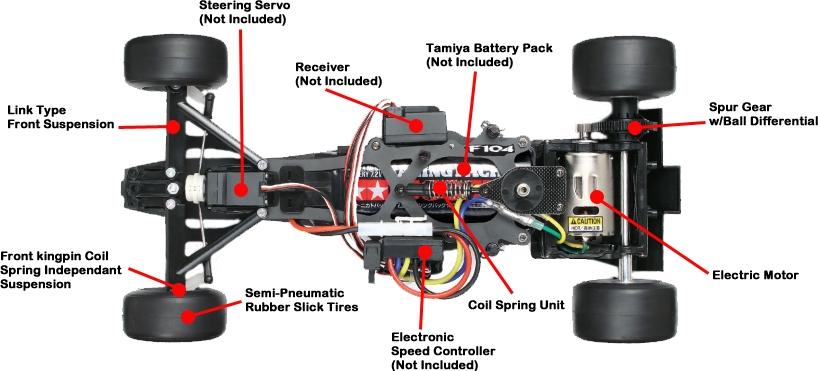

FEATURES: Chassis: FRP construction F104W double deck with 0.08" (2mm) upper,
and 0.12" (3.2mm) lower deck
Drive: Two wheel direct with solid axle stainless steel rear shaft
Differential: Ball pressure plate type with resin housing
Motor: 540 size brushed
Ball Bearings: Full set
Body: Clear, polycarbonate with front and rear wings in white plastic
Steering: Two-piece tie-rods, Isometric steering rod links with
longitudinally mounted steering servo position
Suspension: Front, kingpin coil with spacers for ground clearance
adjustment, Rear, T-bar with carbon friction plate and friction
shock
Tires: Rubber racing slicks, Front; 2.4" (62mm) diameter, 1.2" (30mm)
wide, Rear; 2.4" (62mm) diameter, 1.2" (32mm) wide, both have foam
inserts
Wheels: Gray plastic, Front: 1.8" (45mm) diameter, 1.2" (30mm)
wide, Rear: 1.8" (45mm) diameter, 1.4" (35mm) wide
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the top of tires
from vertical when viewed from front or behind vehicle
Spur Gear: Plastic, 63 tooth, 06 module
Pinion Gear: 14 tooth metal

INCLUDES: Tamiya Ferrari F2012 Racing Car kit, clear body, front and rear wings
decals, wheels, tires, motor and instructions

REQUIRES: Radio: 2-channel, small ESC and receiver recommended, standard servo
Radio Batteries: Eight AA
Battery: 6-cell stick pack with Tamiya type connector
Battery Charger: Peak type recommended
Building and track equipment

SPECS: Vehicle-
Length: 16.6" (422mm)
Width: 7.8" (200mm)
Height: 3.9" (100mm)
Weight: 24oz (680g)
Body-
Length: 14" (356mm)
Width: 5.5" (140mm) at widest point
Height: 4" (102mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 6x10mm Rear Shaft 1 DTXC1561
2 8x12mm Ball Diff 1 DTXC1581
1 5x11mm Diff Housing 1 DTXC1547
4 5x10mm Front Wheels 2 DTXC1535
4 5x10mm Rear Wheels 2 DTXC1535

jxs 03/21/13
ir/jxs
4950344585595 4950344585595
TAMC8559
