TAM58547

1/12 Midnight Pumpkin Black Edition

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (8)
Optional Items (3)
TAMIYA

TAM58547
1/12 Midnight Pumpkin Black Edition
By TAMIYA
$206.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Monster Truck Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$206.99
Warehouse ?
Stock availability for pick up
0
$206.99
Warehouse ?
0
$206.99
Store - Charlottetown ?
0
$206.99
Store - Edmonton ?
0
$206.99
Store - Mississauga ?
0
$206.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

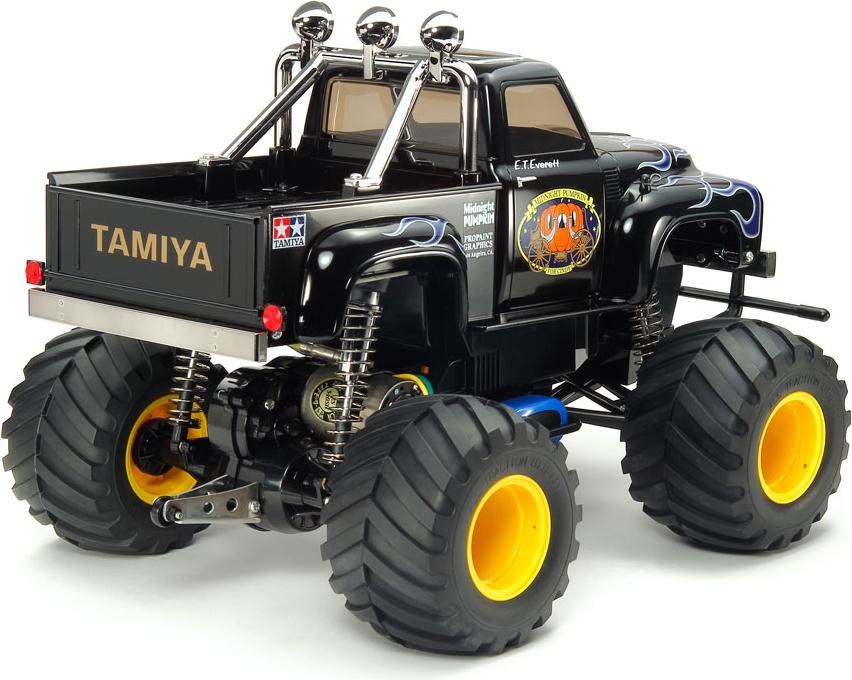

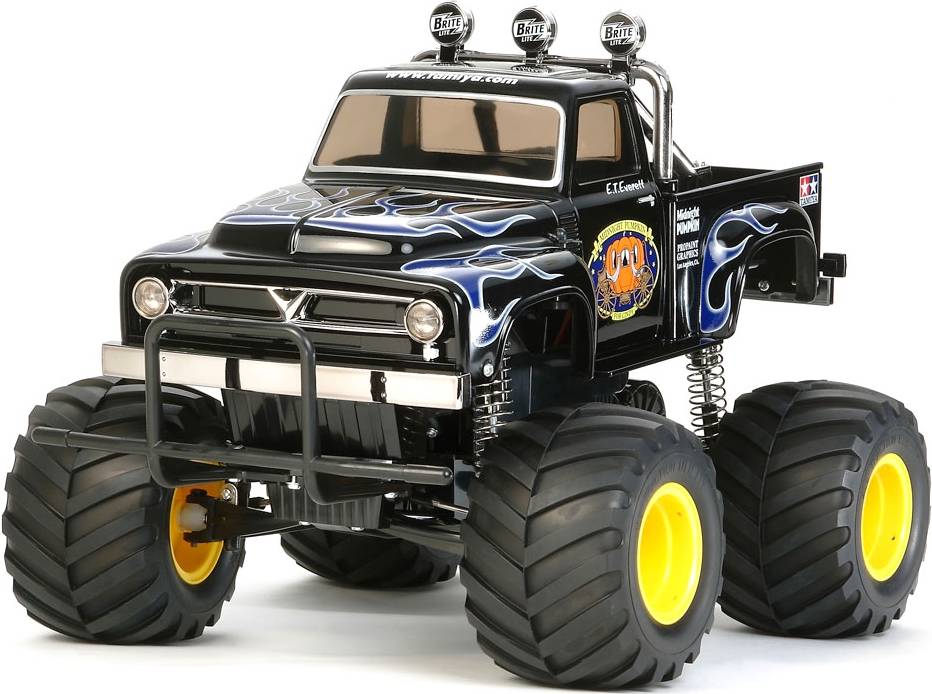

         This is the 1/12 scale, electric powered, radio controlled,
Tamiya Midnight Special Black Edition On-Road Truck Kit.

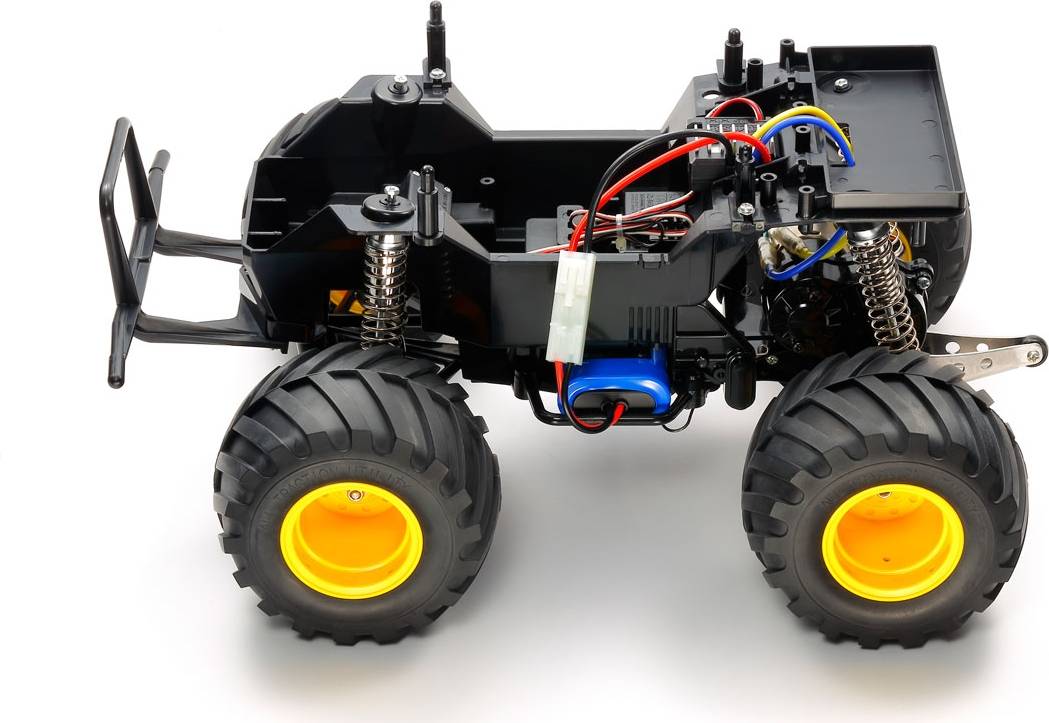

FEATURES: Chassis: ABS plastic box type with metal wheelie bar
Drive: Rear wheel
Motor: 540 size brushed
Electronic Speed Control: Tamiya TEU-105BK with reverse
Body: 1950's pickup style ABS molded in black
Shocks: Four plastic bodied friction (not oil filled) type
Gearbox: Sealed
Transmission: Single-speed
Differential: Planetary

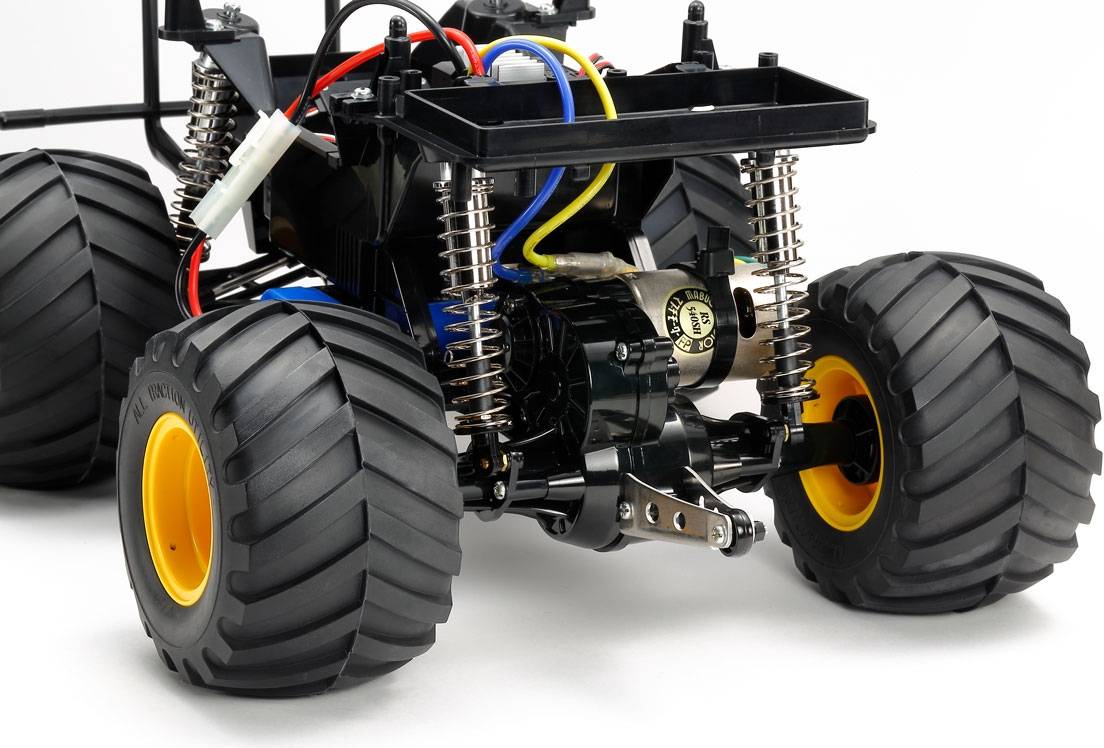

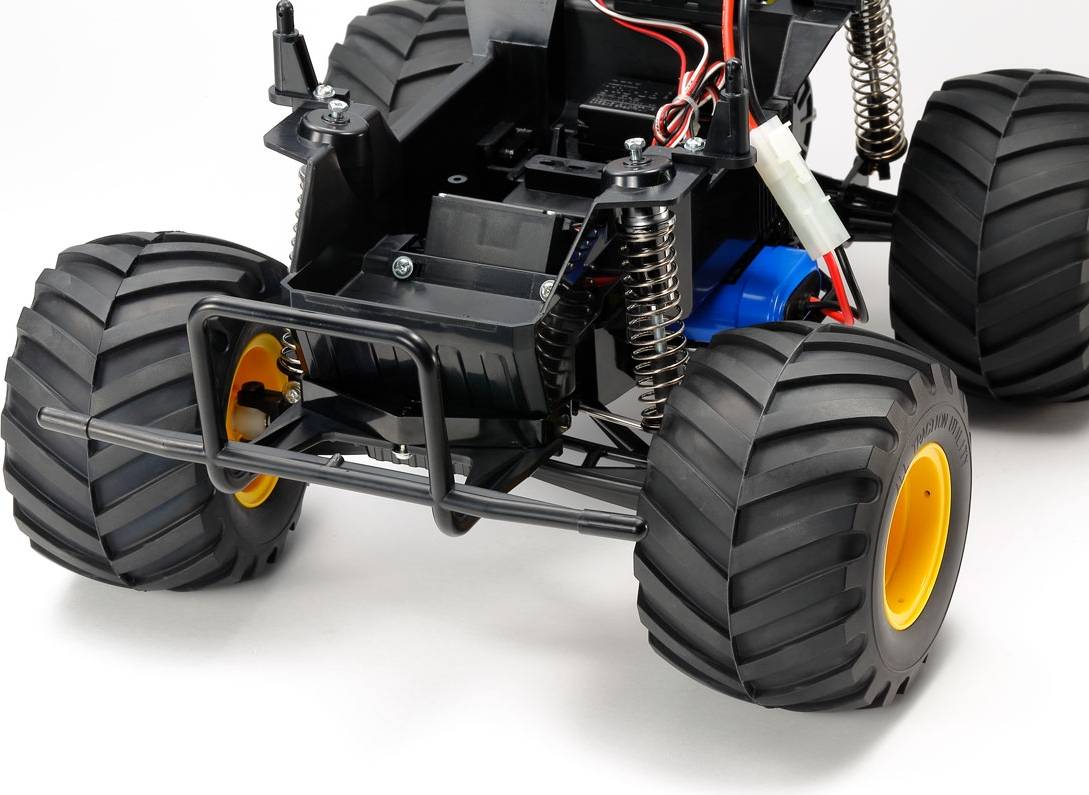

Suspension: Front, coil spring damped independent swing axle
rear, rolling rigid axle suspension

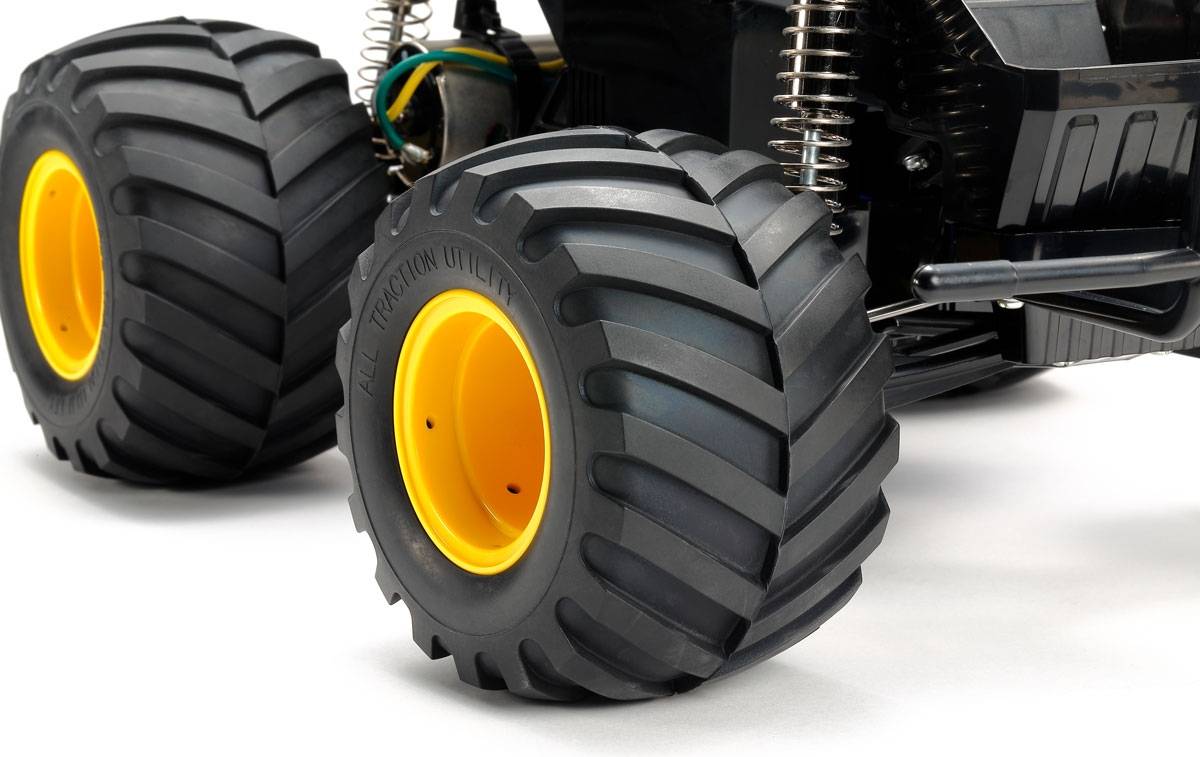

Tires: 4.5" (115mm) diameter, 2.7" (69mm) wide monster truck type
Wheels: 2" (51mm) diameter, 2.5" (64mm) wide, plastic orange in
color
Bumpers: Front plastic
Camber Tie Rods: Fixed, non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis

INCLUDES: Tamiya Midnight Pumpkin Black Edition kit with shocks, 540 motor,
electronic speed control, body, tires, decals, wheelie bar
and instructions

REQUIRES: Radio: 2-channel with standard size steering servo
Battery: 6-cell 7.2V stick pack
Charger: Compatible with selected battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 15.1" (385mm)
Width: 11.4" (290mm)
Height: 10.2" (260mm)
Weight: 3.5lbs (1600g)
Wheelbase: 8.25" (209mm)
Front Tread: 8.8" (223mm)
Rear Tread: 8.5" (216mm) measured at wheel centers
Front Track: 10.3" (262mm)
Rear Track: 10" (255mm) measured at outer edges of wheels
Ground Clearance: 2.25" (57mm)
Tires: 4.5" x 2.7" (115mm x 69mm)
BODY-
Length: 13.75" (349mm)
Width: 6.6" (168mm)
Height: 4.9" (109mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 5x11mm Rear Wheel Shafts 2 DTXC1547
4 5x11mm Front Wheels 2 DTXC1547
