          This is the radio controlled, electric powered 1/10 scale,
Subaru BRZ R&D Sport On-Road Car Kit.
This car can be used in Tamiya Official Races.

FEATURES: Chassis: TT-01 type E composite chassis-compatible with a variety of
Tamiya Option Parts
Drive: Four wheel shaft drive
Electronic Speed Control: Tamiya TEU-105BK with reverse, TAMC5055
Motor: 540 motor with pre-attached leads
Ball Bearings: Installed in differentials, bushings in wheel hubs
Shocks: Friction, plastic body
Gearbox: Sealed, front and rear
Differentials: Bevel gear, ball bearing equipped
Transmission: Single speed
Body: Clear untrimmed, with window mask and body trim decals
Tires: Slick 0.94" (24mm) wide, 2.5" (63.5mm) diameter
Wheels: Blue 2.0" (52mm) outer diameter, 0.94" (24mm) wide
+2 offset and gray colored set with zero offset
Bumper: Front foam
Suspension: Independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Non-adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Steering: Bell-crank type with servo saver

INCLUDES: TT-01 Type E chassis, 540 motor, ESC, clear Subaru BRZ body, tires,
foam bumper, 19 tooth pinion gear, 61 tooth spur gear, window
mask decals, two sets of wheels and instruction manual

REQUIRES: Radio: 2-channel with one standard servo
Radio Batteries: 8 AA size (for transmitter)
Battery: 6-cell stick pack with standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 15.7" (400mm)
Width: 7.2" (183mm)
Height: 5.5" (140mm)
Wheelbase: 10.1" (257mm)
BODY-
Length: 16.6" (421mm)
Width: 7.5" (190mm)
Height: 3.8" (98mm)

COMMENTS: For replacement, or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Front Hubs 1 DTXC1547
2 5x11mm Rear Hubs 1 DTXC1547
2 8x12mm Front Diff 1 DTXC1581
2 8x12mm Rear Diff 1 DTXC1581
2 5x11mm Fr Driveshaft Joint 1 DTXC1547
2 5x11mm Rear Driveshaft Joint 1 DTXC1547

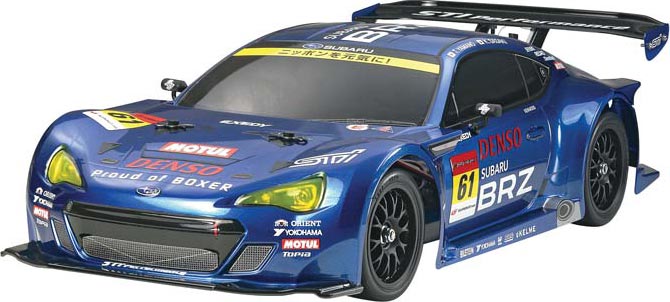

Body shown on box is painted blue with all body detail and sponsor
decals applied.

jxs 11/13/12
ir/jxs
