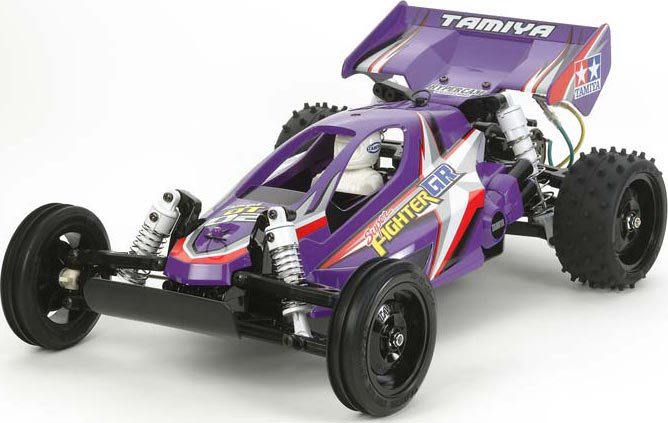

          This is the radio controlled, electric powered 1/10 scale
Off-Road Super Fighter GR Violet Racer Kit from Tamiya.

FEATURES: Chassis: DT-02 plastic bathtub type with longitudinal battery
layout for lower center of gravity, semi-finished driver figure
Drive: Rear wheel
Motor: 540 size brushed
Differential: Three bevel gears
Gearbox: Sealed
Electronic Speed Control: Tamiya TEU-105BK with reverse
Body: Molded from shock resistant ABS plastic, violet in color
Suspension: Four wheel independent, double wishbone
Shocks: Plastic body friction, not oil filled
Tires: Rear, spike design installed on black plastic wheels
Front, straight rib pattern installed on black plastic wheels
Caster/Toe-In: Adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering: Bellcrank with servo saver

INCLUDES: Super Fighter GR Violet Racer Kit with Body, Decals, Driver Figure,
ESC, Motor, Wheels, Tires, eight 5x11mm Ball Bearings and
Instructions

REQUIRES: Radio: 2-channel with standard steering servo
AA Batteries: Four or eight depending on transmitter
Battery: 7.2V 6-cell stick pack with Standard connector
Battery Charger: Peak type recommended
Building and track equipment

Vehicle;
SPECS: Length: 15.1" (384mm)
Width: 9.7" (248mm)
Height: 5.7" (145mm)
Weight: 2.5lbs (1140g)
Body;
Length: 10" (254mm)
Width: 6.4" (163mm)
Height: 2.9" (73mm)

COMMENTS: For Replacement or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Gearbox 1 DTXC1547
2 5x11mm Counter Gear 1 DTXC1547
2 5x11mm Rear Axles 1 DTXC1547
2 5x11mm Front Axles 1 DTXC1547
