TAM58532

1/10 Nissan Silvia Kit

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM58532
1/10 Nissan Silvia Kit
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$130.89
Warehouse ?
StockStock availability for pick up
0
$130.89
Warehouse ?
0
$130.89
Store - Charlottetown ?
0
$130.89
Store - Edmonton ?
0
$130.89
Store - Mississauga ?
0
$130.89
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
F Parts Upright M-05
$8.99

Small Metric 4-Way Wrench
$4.99

Ball Bearing Set M-05
$34.99

3mm Grub Screw 44002
$5.99
Pinion Gear Set 20/21T
$9.99

Mini 60D Super Grip Tire (2)
$21.99

Body Mount Extension Set
$9.99

TG10 Front Wheel Axle
$12.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

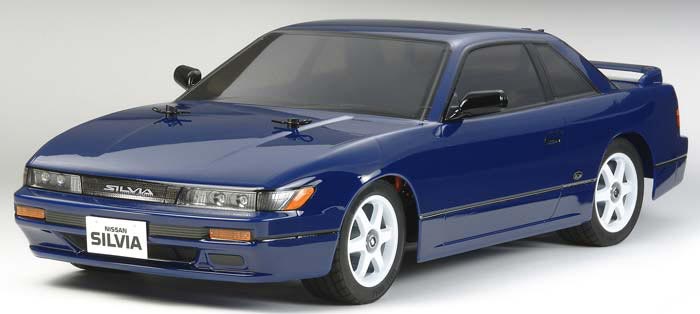

           This is the radio controlled, electric powered, 1/10 scale
Tamiya M-06L Chassis Racing Car Kit with the Nissan Silvia (S13) Body.

FEATURES: Chassis: Molded plastic bathtub style
Drive: Rear wheel
Differential: Planetary gear type
Shocks: Friction, plastic body
Body: Clear untrimmed Nissan Silvia 2-door coupe, ABS plastic side
mirrors
Motor: 540 size brushed
ESC Tamiya TEU-104BK with reverse
Bumper: Front, urethane foam
Tires: 60D on-road 0.94" (24mm) wide, 2.2" (56mm) diameter, with
foam inserts
Suspension: Double wishbone
Wheels: White plastic stock wheels 0.94" (24mm) wide, 1.5" (38mm)
diameter
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with high torque servo saver

INCLUDES: M-06L Chassis Car Kit with tires, one set of wheels, foam inserts,
20T pinion gear, shocks, decal sheet, instruction manual, 540 motor
and plastic bushings

REQUIRES: Radio: 2-channel with high-speed steering servo
Battery: 6-cell 7.2V stick pack
Battery Charger: To match selected battery
Paint: Polycarbonate safe spray or brush-on
Building and track equipment

SPECS: Vehicle;
Width: 6.5" (165mm)
Tread: 5.4" (138mm) distance between wheel centers side-to-side
Wheelbase: Choice of three by changing rear section,
Short: 8.3" (210mm)
Medium: 8.8" (225mm)
Long: 9.4" (239mm)
Body;
Length: 16.2" (412mm)
Width: 6.6" (168mm)
Height: 3.8" (98mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Differential 1 DTXC1547
2 5x11mm Gearbox 1 DTXC1547
2 5x8mm Gearbox 1 DTXC1523
4 5x11mm Rear Hubs 2 DTXC1547
4 5x8mm Steering Linkage 2 DTXC1523
4 5x11mm Front Hubs 2 DTXC1547

jxs 09/17/12
ir/jxs
