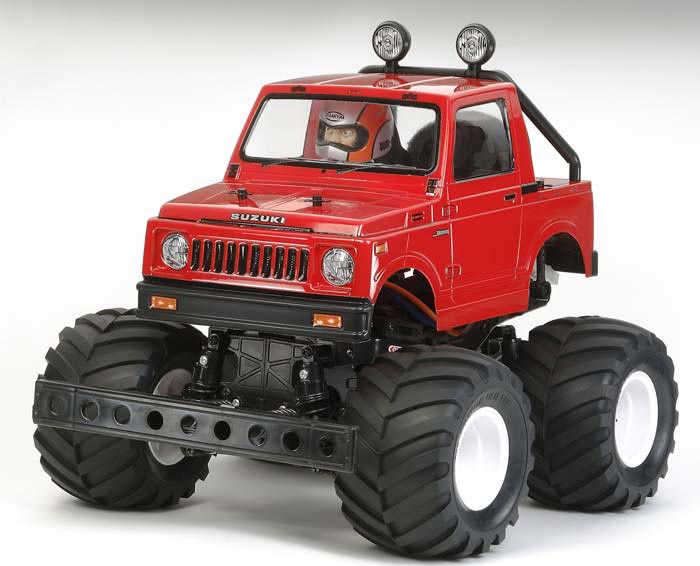

           This is the 1/10 scale Electric Powered, Radio Controlled,
Suzuki Jimny (SJ30) Wheelie Kit from Tamiya.

FEATURES: Chassis: WR-02 ladder frame with wheelie bar
Drive: Rear wheel
Motor: 540 size brushed
Pinion Hear: 18 tooth steel
Electronic Speed Control: TEU-105BK with reverse
Suspension: Fully independent double wishbone
Shocks: Plastic body, friction (not oil filled)
Body: Clear polycarbonate
Driver Figure: Injection molded, white in color
Tires: Rubber, split vee 4.3" (110mm) diameter, 2.6" (67mm) width
Wheels: White plastic 2.00" (51mm) diameter, 2.3" (58mm) width
Differential: Bevel gear type
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
vehicle

INCLUDES: Suzuki Jimny Wheelie Kit with ESC, Motor, Wheels, Tires, Body,
Wheelie Bar, Bumpers, and Instruction Manual

REQUIRES: Radio: 2-channel
Battery: 7.2V stick pack with Standard connector
Battery Charger: For selected battery
AA Batteries: Eight for transmitter
Building and track equipment

SPECS: Body
Length: 10.5" (268mm)
Width: 5.75" (146mm)
Height: 5" (127mm)
Finished size of vehicle not provided by manufacturer

COMMENTS: To upgrade to ball bearings use;
Qty. Size Location Qty. Bearing Set
2 5x11mm Rear Uprights 1 DTXC1547
4 5x11mm Rear Wheels 2 DTXC1547
4 5x11mm Front Wheels 2 DTXC1547
5 5x11mm Gearbox 3 DTXC1547
