TAM58523

1/10 Bush Devil II Kit

Product Info | Replacement Parts
TAMIYA

TAM58523
1/10 Bush Devil II Kit
By TAMIYA
$227.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Monster Truck Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
1
$227.99
Warehouse ?
StockStock availability for pick up
1
$227.99
Warehouse ?
0
$227.99
Store - Charlottetown ?
0
$227.99
Store - Edmonton ?
1
$227.99
Store - Mississauga ?
1
$227.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

3mm Grub Screw 44002
$5.99

Heat Resist Dbl Side Tape
$7.99

Body Pin Set
$4.99
TG10 Front Wheel Axle
$12.99

Pinion Gear Set 18/19T
$9.99

Monster Spike Tires 110
$21.99

Diff Bevel Gear Set 49/84
$7.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

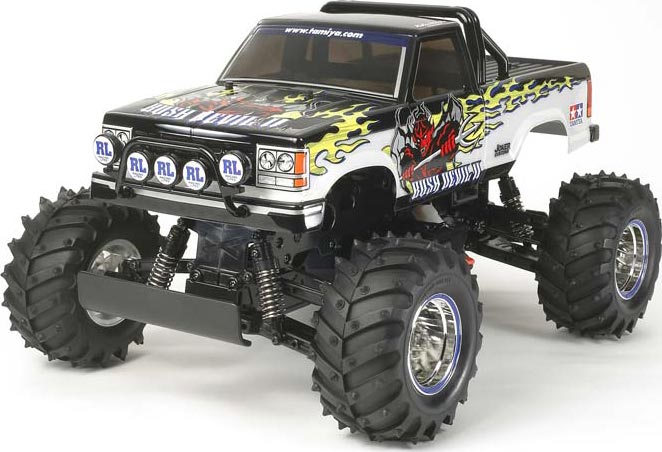

         This is the Electric Powered, Radio Controlled, 1/10 scale
Bush Devil II Off-Road Truck Kit from Tamiya.

FEATURES: Chassis: WT-01 reinforced polycarbonate monocoque
Drive: Rear wheel
Motor: 540 size brushed
Electronic Speed Control: Tamiya TEU-104BK with reverse
Suspension: Front and rear double wishbone
Shocks: Friction (not oil-filled), plastic body
Body: Clear polycarbonate
Gearbox: Preassembled sealed type with bevel gear differential
Tires: Treaded and spiked 5.1" (130mm) diameter, 2.3" (58mm) wide
Wheels: Chrome finish plastic, 2.2" (56mm) diameter, 1.9" (49mm)
wide, 12mm hex
Caster/Toe-In: Adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering: Two adjustable rods with servo saver

INCLUDES: Bush Devil II Off-Road Truck Kit, Motor, ESC, Clear Body, Decals
18T Pinion Gear, Tires, Wheels and Instruction Manual

REQUIRES: Radio: 2-channel with standard steering servo
AA Batteries: Eight for transmitter
Battery: 7.2V 6-cell stick pack with Standard connector
Battery Charger: Peak type recommended
Building and track equipment

SPECS: Vehicle-
Length: 17.4" (443mm)
Width: 12.2" (310mm)
Height: 10" (254mm)
Body-
Length: 15.6" (396mm)
Width: 6.7" (171mm)
Height: 4.4" (112mm)

COMMENTS: For Replacement or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Rear Axles 1 DTXC1547
4 5x11mm Front Axles 2 DTXC1547
2 5x11mm Counter Gear 1 DTXC1547
5 5x11mm Transmission 1 DTXC1547
