TAM58512

1/12 RC VW T1 Wheelie

Product Info | Replacement Parts
TAMIYA

TAM58512
1/12 RC VW T1 Wheelie
By TAMIYA
Discontinued
No Picture Available

More like this... R/C Electric 2WD Monster Truck Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$191.24
Warehouse ?
StockStock availability for pick up
0
$191.24
Warehouse ?
0
$191.24
Store - Charlottetown ?
0
$191.24
Store - Edmonton ?
0
$191.24
Store - Mississauga ?
0
$191.24
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
3mm Grub Screw 44002
$5.99

Body Pin Set
$4.99

Pinion Gear Set 18/19T
$9.99

Diff Bevel Gear Set 49/84
$7.99
TL01 B Parts Upright
$11.99

TL01 C Parts Susp Arm
$21.99

TG10 Rear Wheel Axles (2)
$12.99

Drive Shaft Set TA04
$13.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

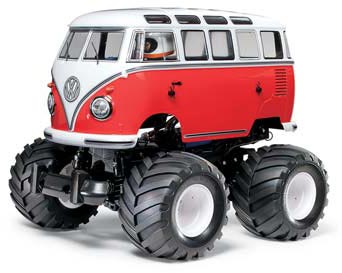

        This is the the 1/12 scale, electric powered, radio controlled,
Tamiya Volkswagen Type 2 (T1) Off-Road Van.

FEATURES: Chassis: WR-02 plastic monocoque type with wheelie bar
Drive: Rear wheel
Motor: 540 size brushed, with 18T pinion gear
ESC: Tamiya TEU-104BK with reverse
Differential: Bevel gear
Suspension: Four wheel double wishbone
Front Bumper: Plastic with two coil springs to absorb minor impacts
Body: Clear polycarbonate with injection molded driver figure
Gearbox: Preassembled and sealed
Shocks: Plastic body, friction (not oil-filled)
Tires: Off-road V-pattern 2.7" (68mm) wide, 2.04" (52mm) diameter
Wheels: White plastic 2.3" (57.5mm) wide, 2.04" (52mm) diameter
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Non-adjustable

INCLUDES: Tamiya Volkswagen Type 2 (T1) Off-Road Van, Clear Body, Driver Figure
Tires, Wheels, 540 size Motor, ESC, Decals and Instruction Manual

REQUIRES: Radio: 2-channel with high-torque steering servo
AA Batteries: 4 or 8 depending on transmitter
Battery: 6-cell stick with standard connector
Battery Charger: For selected battery pack
Paint: Polycarbonate safe spray or brush-on
Building and track equipment

SPECS: Vehicle;
Finished specs not provided by manufacturer
Body;
Length: 11.7" (298mm)
Width: 5.5" (139mm)
Height: 5.1" (130mm)

COMMENTS: To upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Rear Uprights 1 DTXC1547
2 5x11mm Front Uprights 1 DTXC1547
6 5x11mm Gearbox 3 DTXC1547

jxs 02/13/12
ir/jxs
