TAM58499

1/10 Mitsubishi Montero Wheelie Off-Road Kit

Product Info | Replacement Parts
RESOURCES

Replacement Parts (6)
TAMIYA

TAM58499
1/10 Mitsubishi Montero Wheelie Off-Road Kit
By TAMIYA
$193.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Monster Truck Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$193.99
Warehouse ?
Stock availability for pick up
0
$193.99
Warehouse ?
0
$193.99
Store - Charlottetown ?
0
$193.99
Store - Edmonton ?
0
$193.99
Store - Mississauga ?
0
$193.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

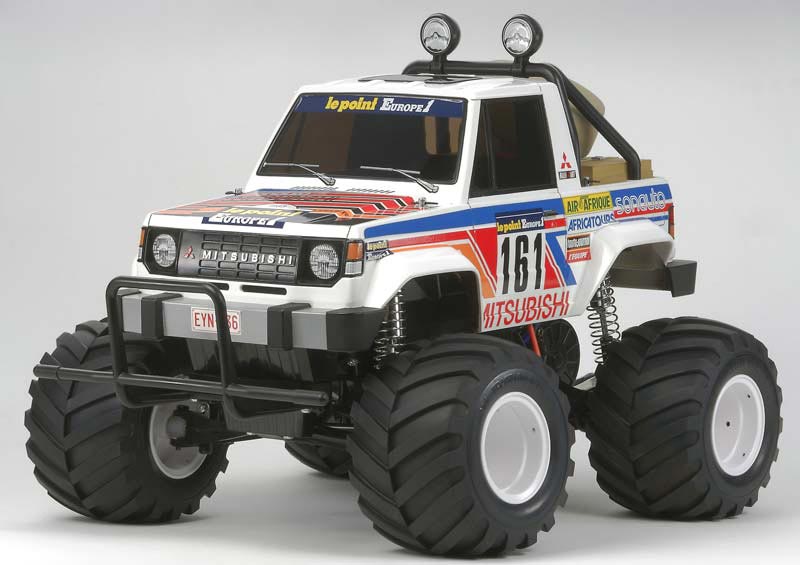

         This is the radio controlled, electric powered, 1/10 scale
Mitsubishi Montero Wheelie Off-Road Vehicle kit from Tamiya.

FEATURES: Chassis: Heavy duty box type ABS plastic
Drive: Rear wheel
Electronic Speed Control: Tamiya TEU-104BK with reverse
Motor: 540 brushed
Pinion Gear: 10 tooth
Transmission: Single-speed
Differential: Planetary gear
Bumper: Front, resin
Shocks: Plastic body, friction (not oil-filled)
Gearbox: Sealed
Body: Injection molded plastic, white in color with black plastic
spare tire cover and tinted windows
Suspension: Front swing axle independent & rear rolling rigid type
Wheels: Nylon resin, white in color 2.5" (64.9mm) wide, 1.9" (49mm)
diameter
Tires: All terrain 2.6" (67mm) wide, 4.5" (115mm) diameter
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Non-adjustable
Steering: Two-piece adjustable steering tie rods with servo saver

INCLUDES: Mitsubishi Montero Wheelie Off-Road Vehicle Kit with 540 motor, ESC
Tires, Wheels, Body, Windows and Instruction Manual

REQUIRES: Radio: 2-channel with steering servo
Battery: 6-cell, 7.2V NiMH stick pack with standard connector
Battery Charger: To match selected battery
Transmitter Batteries: Four or eight depending on transmitter
Tools and track equipment

SPECS: Vehicle-
Length: 15.1" (385mm)
Width: 11.4" (290mm)
Height: 10.7" (272mm)
Weight: 3.5lbs (1,600g)
Body-
Length: 13" (331mm)
Width: 7.25" (184mm)
Height: 4.9" (124mm)

COMMENTS: To replace Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 5x11mm Gearbox 2 DTXC1547
4 5x11mm Front Wheels 2 DTXC1547

jxs 10/13/11
ir/jxs
4950344584994 4950344584994
TAMC8499
