TAM58494

1/10 Honda CR-Z TT-01 Type-E Chassis

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM58494
1/10 Honda CR-Z TT-01 Type-E Chassis
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$135.99
Warehouse ?
StockStock availability for pick up
0
$135.99
Warehouse ?
0
$135.99
Store - Charlottetown ?
0
$135.99
Store - Edmonton ?
0
$135.99
Store - Mississauga ?
0
$135.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

RS540 Sport Tuned Motor 49/62
$38.99

G Parts TT-01
$9.99

1/10 Datsun 240Z Rally Body Pr
$66.99
3mm Grub Screw 44002
$5.99

Body Pin Set
$4.99

Super Driftech Tires 24mm Widt
$13.99

Pinion Gear Set 20/21T
$9.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
    This is the electric powered 1/10 scale, Honda CR-Z On-Road Car Kit.
This car can be used in Tamiya Official Races.

FEATURES: Chassis: TT-01 type E composite chassis-compatible with a variety of
Tamiya Option Parts
Drive: Four wheel shaft drive
Electronic Speed Control: Tamiya TEU-104BK with reverse
Motor: 540 motor with pre-attached leads
Ball Bearings: Installed in differentials, bushings in wheel hubs
Shocks: Friction, plastic body
Gearbox: Sealed, front and rear
Differentials: Bevel gear, bushing equipped
Transmission: Single speed
Body: Clear untrimmed, with window mask and body trim decals
Tires: Treaded 1.0" (26mm) wide, 2.6" (65.5mm) diameter
Wheels: 5-spoke gray 2.0" (52mm) outer diameter, 1.0" (26mm) wide
and set of blue lace pattern 0.94" (24mm) wide, 2.0" (52mm)
diameter wheels with +2 offset
Bumper: Front foam
Suspension: Independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Non-adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Steering: Bell-crank type with servo saver

INCLUDES: Honda CR-Z 540 motor, ESC, clear body, tires, foam bumper, 19 tooth
pinion gear, 61 tooth spur gear, window mask decals, two sets of
wheels and instruction manual

REQUIRES: Radio: 2-channel with one standard servo
Radio Batteries: 8 AA size (for transmitter)
Battery: 6-cell stick pack with standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE--
Length: 15.7" (400mm)
Width: 7.2" (183mm)
Height: 5.5" (140mm)
Wheelbase: 9.9" (251mm)
BODY-
Length: 16.9" (430mm)
Width: 7.5" (190mm)
Height: 4" (102mm)

COMMENTS: For replacement, or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Front Hubs 1 DTXC1547
2 5x11mm Rear Hubs 1 DTXC1547
2 8x12mm Front Diff 1 DTXC1581
2 8x12mm Rear Diff 1 DTXC1581
2 5x11mm Fr Driveshaft Joint 1 DTXC1547
2 5x11mm Rear Driveshaft Joint 1 DTXC1547

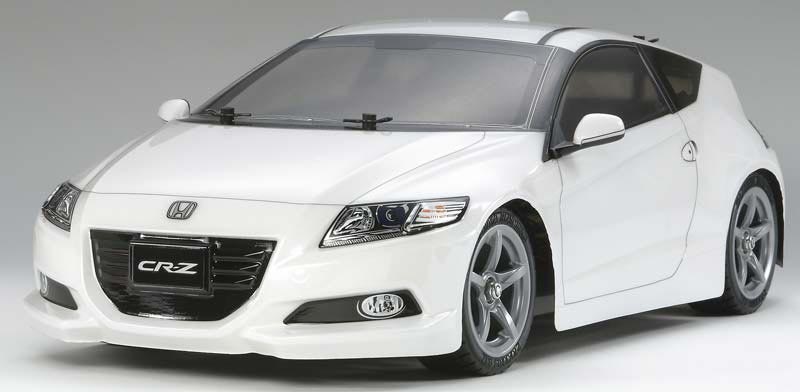

Body shown on box is painted white.

jxs 07/01/11
ir/jxs
4950344584949 4950344584949
