FEATURES

In March 1988, Tamiya released an electric R/C 4WD racing buggy called the "Avante" and it has since become a special machine in Tamiya's R/C history. The machine featured a unique shaft-driven 4WD system which was taken from Tamiya's first 4WD R/C buggy, the Hotshot. It also featured a highly sophisticated design including a FRP double-deck chassis layout, longitudinal motor & battery positions, and a formula-type body with chassis fairing. It was equipped with innovative components such as a compact gearbox with 3 small planetary gears, a center diff to increase stability, a fully adjustable suspension, and cam-lock wheel caps.

The Avante was a distinctive R/C machine which featured an innovative design. After 20 years, some of the Avante's mechanisms have become standard features on modern R/C cars. The ultimate pure racing buggy returns in 2011.

In March 1988, Tamiya released an electric R/C 4WD racing buggy called the "Avante" and it has since become a special machine in Tamiya's R/C history. The machine featured a unique shaft-driven 4WD system which was taken from Tamiya's first 4WD R/C buggy, the Hotshot. It also featured a highly sophisticated design including a FRP double-deck chassis layout, longitudinal motor & battery positions, and a formula-type body with chassis fairing. It was equipped with innovative components such as a compact gearbox with 3 small planetary gears, a center diff to increase stability, a fully adjustable suspension, and cam-lock wheel caps.

The Avante was a distinctive R/C machine which featured an innovative design. After 20 years, some of the Avante's mechanisms have become standard features on modern R/C cars. The ultimate pure racing buggy returns in 2011.

In March 1988, Tamiya released an electric R/C 4WD racing buggy called the "Avante" and it has since become a special machine in Tamiya's R/C history. The machine featured a unique shaft-driven 4WD system which was taken from Tamiya's first 4WD R/C buggy, the Hotshot. It also featured a highly sophisticated design including a FRP double-deck chassis layout, longitudinal motor & battery positions, and a formula-type body with chassis fairing. It was equipped with innovative components such as a compact gearbox with 3 small planetary gears, a center diff to increase stability, a fully adjustable suspension, and cam-lock wheel caps. The Avante was a distinctive R/C machine which featured an innovative design. After 20 years, some of the Avante's mechanisms have become standard features on modern R/C cars. The ultimate pure racing buggy returns in 2011.

Tamiya has given the Avante (2011) the special re-release treatment just like other re-released buggies such as the Buggy Champ and Hotshot. Here is a brief introduction of the improved points.

Main frame material has been changed from FRP to carbon fiber. Original FRP upper/lower decks have been replaced with 2.0mm thick carbon fiber decks to further increase chassis strength and rigidity. Chassis layout is optimized for installing modern R/C equipment.

Carbon Fiber Rear Damper Stay Rear damper stay is thicker than the original and its material has also been changed to carbon fiber. Left and right stays are connected to further increase rigidity.

Assembly Universal Shafts WO universal shafts are used for both front and rear to reduce friction loss.

Easier Damper Maintenance The gold-colored oil damper cylinders feature bottom caps for easier maintenance such as replacing o-rings.

Durable Polycarbonate Body Shell The body, wing, and chassis fairing have been made with polycarbonate for superb off-road durability.

Wheel Axle/Clamp Type Wheel Hubs Wheel axles have been changed to standard pin-secured type. In conjunction with aluminum wheel hubs, secure wheel attachment is possible. The hex wheel hubs enable attachment of off-road wheels such as Item 53880 Large Dish Wheels (4WD/Front, 62/25) and Item 53881 Large Dish Wheels (Rear, 62/35) in addition to the original cam-lock type wheels.

Duralumin front knuckles The original die-cast front knuckles have been replaced with duralumin knuckles to further increase strength and durability. New knuckles feature the same shape as the original.

Compatible with a wide range of battery packs. The Avante (2011) is compatible with a wide range of Tamiya battery products such as Ni-Cd, high-capacity Ni-MH, and lightweight LF battery packs.

Latest R/C Systems The Avante is compatible with all Tamiya R/C systems including the 2.4GHz systems.

The Original Packaging is also Revived! The package for this re-release model comes with the same design and dimensions as the original Avante. In addition, just like the original Avante, all the parts are stored in blister packs. The "Avante" logo and rear wing sticker will remain the same as the original. Other stickers will be of a new Tamiya design.





click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

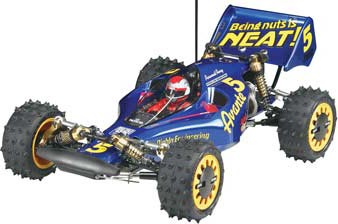

          This is the radio controlled, electric powered, 1/10 scale
Tamiya Avante 2011 Off-Road Buggy Kit.

FEATURES: Chassis: 0.08" (2mm) thick carbon fiber, double deck configuration
Drive: Four wheel shaft with pin-secured wheel axles
Body: Polycarbonate with wing and chassis fairing
Motor: 25 turn brushed
Electronic Speed Control: TEU-104BK
Shocks: Oil-filled with gold colored cylinders and bottom caps for
easy maintenance
Shock Stays: 0.14" (3.5mm) thick carbon fiber
Suspension: Front and rear multi-link double wishbone, adjustable
metal arms with radius arm protectors and rear anti-roll bar,
Differentials: Front and rear planetary, center ball diff
Tires: High-grip pin spike with foam inserts
Wheels: Front, 1" (25.4mm) wide, 2.2" (57mm) diameter
Rear, 1.4" (35.5mm) wide, 2.2" (57mm) diameter, also
four 1.4" (35.5mm) wide, 2.2" (57mm) diameter cam-loc wheels with
wheel caps
Caster: Adjustable caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: Tamiya Avante 2011 Off-Road Buggy Kit with ESC, 25T motor, oil-filled
shocks, 22 tooth pinion, set of tradional buggy wheels, set of
cam-loc wheels, spike tires with inserts, body, decal sheet and
instruction manual

REQUIRES: Radio: 2-channel with one steering servo
Battery: 6-cell stick pack with standard connector
Charger: AC/DC Timed or Peak for 6-cell battery

SPECS: Vehicle;
Length: 16.5" (420mm)
Width: 9.4" (240mm)
Height: 4.5" (140mm)
Wheelbase: 10.2" (260mm)
Tread: 7.9" (200mm) distance from wheel centers, left to right
Gear Ratio: 1:8.33
Minimum Ground Clearance: 1.6" (40mm)
Weight: 2.9lbs (1300g)
Body:
Length: 13" (330mm)
Width: 5.9" (150mm)
Height: 2.4" (61mm)

COMMENTS: To paint body to match vehicle on box, order the following Tamiya
colors;
TAMR8616, PS-16 Metallic Blue TAMR8118, X-18 Semi Gloss Black
TAMR5017, TS-17 Gloss Aluminum TAMR1707, XF-7 Flat Red
TAMR8106, X-6 Orange TAMR1766 XF-66 Light Grey

For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
1 5x11mm Gearbox 1 DTXC1547
1 5x8mm Gearbox 1 DTXC1523
2 8x16mm Front Differential 1 DTXC1535
2 2x6mm Front Differential 1 DTXC1501
2 8x16mm Rear Differential 1 DTXC1535
2 3x8mm Rear Differential not carried
2 5x8mm Rear Counter Gear 1 DTXC1523
1 5x11mm Center Diff 1 DTXC1547
1 5x8mm Center Diff 1 DTXC1523
4 5x11mm Rear Axle 2 DTXC1547
4 5x11mm Front Axle 2 DTXC1547

jxs 12/28/10
ir/jxs
